Quick Details
-
Model Number:
-
CS-374A2
-
Max. Current:
-
15A
-
Mechanical Life:
-
10000 cycles
-
IP level:
-
IP66
-
Product Color:
-
White
-
Input Voltage:
-
DC12V-24V
-
Output Current:
-
5A 10A 15A
-
Size:
-
18.2*12*7.5CM
-
Material:
-
ABS, PC, PBT high and low temperature resistant
-
Light Color:
-
blue
-
Maximum Power:
-
60W-360W
-
Degree Of Protection:
-
IP66
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
DC12V-24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WUPP
-
Model Number:
-
CS-374A2
-
Max. Current:
-
15A
-
Mechanical Life:
-
10000 cycles
-
IP level:
-
IP66
-
Product Color:
-
White
-
Input Voltage:
-
DC12V-24V
-
Output Current:
-
5A 10A 15A
-
Size:
-
18.2*12*7.5CM
-
Material:
-
ABS, PC, PBT high and low temperature resistant
-
Light Color:
-
blue
-
Maximum Power:
-
60W-360W
-
Degree Of Protection:
-
IP66
-
Certification:
-
CE
Products Description
Product Advantages ：

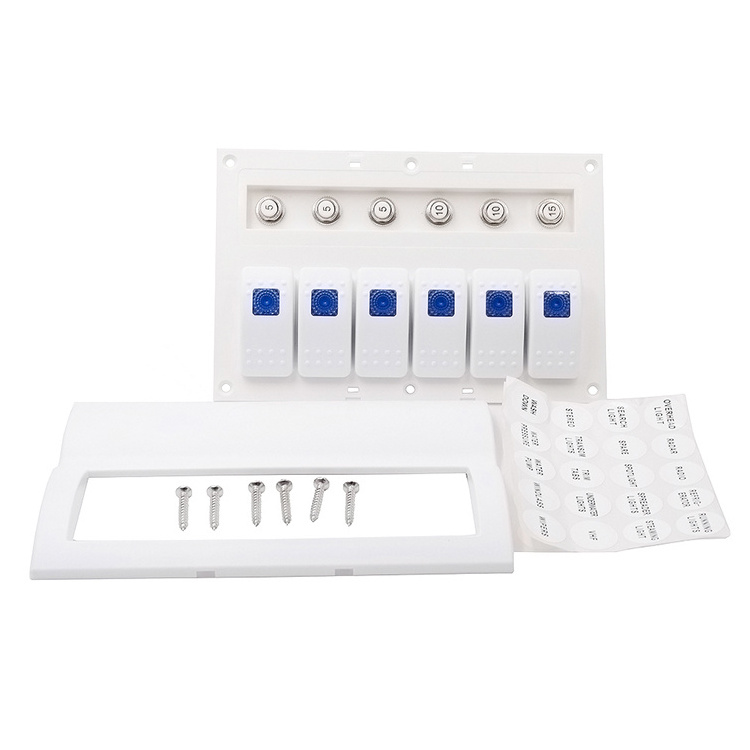

【1】 The product is a 6-position switch panel, including 6 switches, which can control the switching status of 6 consumers at the same time
【2】 The input voltage of the product is 12-24V. 12-24V can be installed and used by all ships and vehicles, with a very wide range of applications
【3】The products are ABS, PC and PBT high and low temperature resistant, flame retardant and environmental friendly materials, which can be used in the environment with the lowest temperature of -25 ° and the highest temperature of 80 °
【4】 The product is equipped with an overload protector. When the user controlled by a single switch exceeds the maximum input current of the corresponding overload protector, it will automatically cut off power without causing any damage to the user. After the overload protector is pressed again, the user with the corresponding current can continue to use
|
Product Name
|
3pin single lamp 6-position white switch combination panel
|
|
Product Model
|
CS-374A2
|
|
Product Size
|
18.2*12*7.5cm(7.17*4.72*2.95inch）
|
|
Opening Size
|
16.6*10.2cm（6.54*4.02inch）
|
|
Product Material
|
ABS, PC, PBT high and low temperature resistant, flame retardant &eco-friendly materials
|
|
Light Color
|
blue
|
|
Product Color
|
white
|
|
Working Temperature
|
-25℃-80℃
|
|
Maximum Power
|
60W-360W
|
|
Input Voltage
|
DC12V-24V
|
|
Output Current
|
5A 10A 15A
|
|
Degree Of Protection
|
IP66
|
|
Relevant Certificates
|
CE
|
|
Net Weight
|
400G
|
|
Gross Weight
|
468G
|
Product Use：
It can be used as headlamp switch, fog lamp switch, visual width lamp switch, on-board refrigerator switch, on-board vacuum cleaner switch, etc
Installation Scope： It is applicable to the installation and use of high-grade large-scale transportation tools such as ships,yachts, recreational vehicles and buses
Installation Scope： It is applicable to the installation and use of high-grade large-scale transportation tools such as ships,yachts, recreational vehicles and buses
