Quick Details
-
Brand Name:
-
LANGMA
-
Dimension(L*W*H):
-
8006X1880X1981
-
Weight:
-
5000 KG
-
Power:
-
415V
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Steel
-
Name:
-

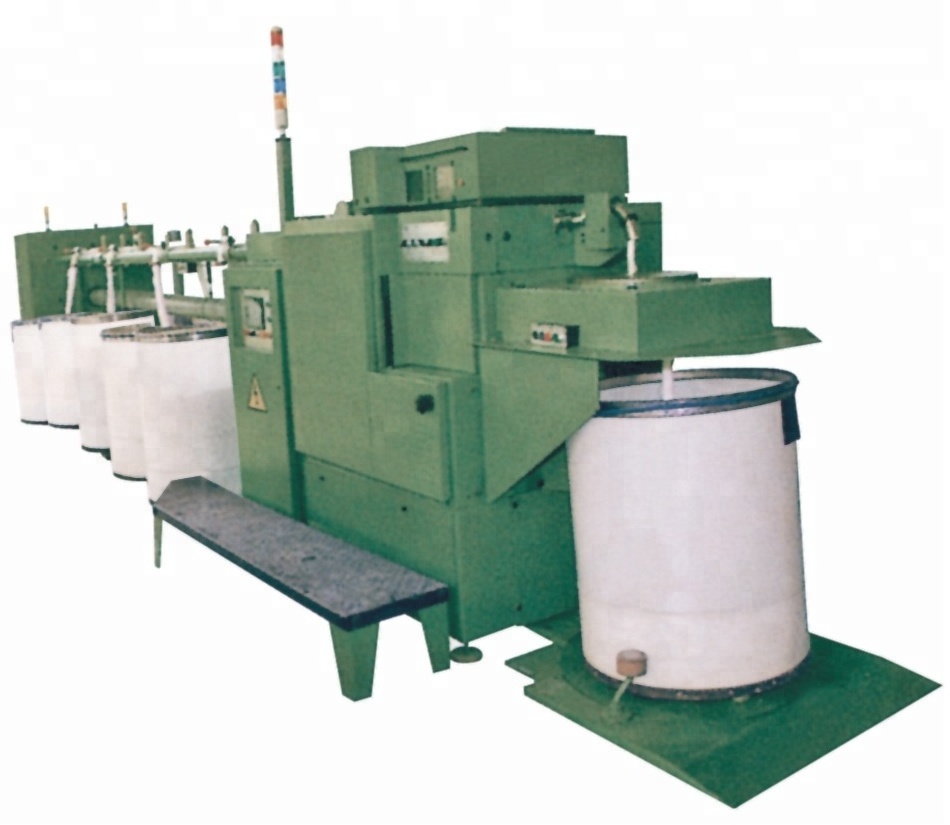

Top-spinning Mahcine
-
Voltage:
-
380/415V
-
Scope of application:
-
Wool tops spinning, re-combing
-
For material:
-
Wool, Ployester
Quick Details
-
Application:
-
Wool Spinning
-
Production Capacity:
-
415V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LANGMA
-
Dimension(L*W*H):
-
8006X1880X1981
-
Weight:
-
5000 KG
-
Power:
-
415V
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Steel
-
Name:
-
Top-spinning Mahcine
-
Voltage:
-
380/415V
-
Scope of application:
-
Wool tops spinning, re-combing
-
For material:
-
Wool, Ployester
Product Application
With the sliver discharging speed reaching 250m/min and the front ratch being 39-63mm,gill boxes are especially applicable to large batch wool fore-spinning process and are used for the pure spinning and spinning of low,medium and high-count imitation wool and fiber.
Top mixing First process
Output slicer quantity(piece) 1 2 4
Feed-in sliver quantity(piece) 12 10 2*4 4*3
Feed-in ball top can's specification(mm) Φ700*1000 Φ400*1000
Output ball top specification (mm) Φ500*500
Output sliver can's spcification (mm) Φ700*1000 Φ400*1000
Maximum Feed-in weight (g/m) 240 200 180
Maximum output sliver weight (g/m) 25 15 7 3
Carding mode of the carding box Chain type
Needle bar specification (mm) 332*13.5
Needle bar qty (piece) 72 on both left and right sides
Needle density (stiches/cm) 4(5) 5(6) 6(7) 7(8) 9
Needle hitting times (times/min) 5000
Special chain specification 9.525-3*72
Front roller sliver discharging speed (m/min) 250(Normally open200)
Drafting multiple 4.4-12.7
Front roller spacing (mm) 39-63
Self-leveling apparatus Yes
Wool lubricating device Yes
Front roller specification (mm) Φ62.5/Φ30
Front leather roller specification(mm) Φ80
Rear roller specification (mm) Φ62.5
Rear pressurized leather roller specification(mm) Φ80
Front roller pressurized mode pneumatic
Rear roller pressurized mode pneumatic
Main electrical machinery power(Kw) 5.5 7.5
Dust collecting motor's power(Kw) 1.5
Frequency converter's specification 3G3RV-A4055 3G3RV-A4075
overall dimension
(L*W*H)(mm) 8006*1880*1981
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
