Quick Details
-
Model Number:
-
VX3500
-
Material:
-
Metal & Plastic
-
Accuracy:
-
0.1μm
-
Operation Mode:
-
Automatic
-
Item Weight:
-
950kg
-
Capacity:
-
20kg
-
Product name:
-

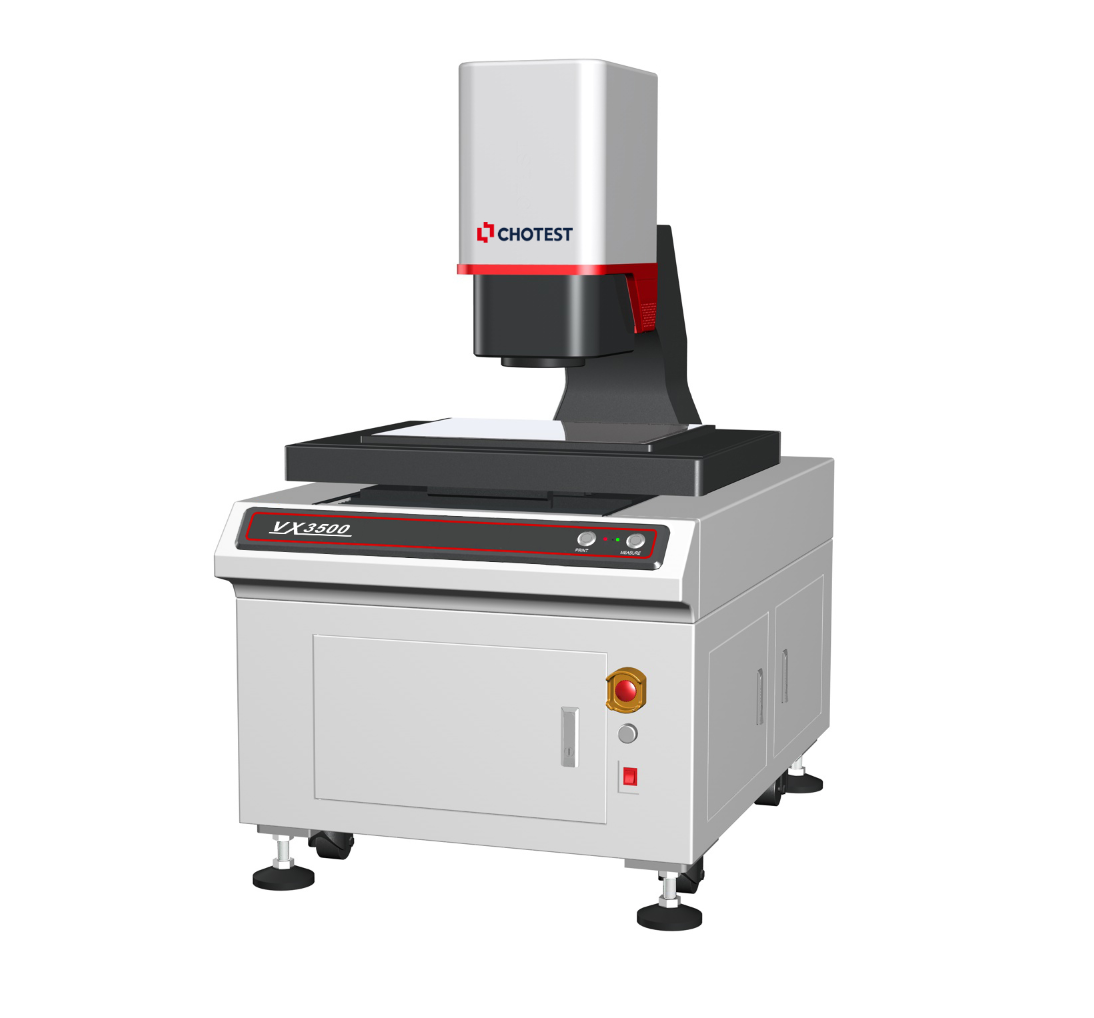

Optical Measuring Machines VX3500
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHOTEST
-
Model Number:
-
VX3500
-
Material:
-
Metal & Plastic
-
Accuracy:
-
0.1μm
-
Operation Mode:
-
Automatic
-
Item Weight:
-
950kg
-
Capacity:
-
20kg
-
Product name:
-
Optical Measuring Machines VX3500
Product Overview
VX3500/VX8500 I
mage Dimension Measurement System
Based on visual measurement principle with precision image analysis algorithms, equipped with double telecentric optical lens with high depth of field, Flash Measuring Machines VX3500 achieve fast dimensional measurement by one-key operation. VX3500/VX8500 is suitable for precise dimensional measurement in the fields of machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical equipment, watches, cutting tools, etc.
FEATURES AT A GLANCE
Product Functions
1. Fast, effective
1) Place the object at will without any workholder
2) Max 512 features at once time
3) Quick and precise measurement for batch workpieces in CNC mode.
2. Accurate, consistent
1) Anybody can get the consistent results by one-key operation
2) Automatic focusing: Avoid deviation because of different focusing
3) Automatic feature identification: Consistent results from different measurement and different operators
3. Full functions, automatic report
1) User-friendly software, powerful functions, simple operation
2) In CNC mode, Quick and precise measurement for batch workpieces according to pre-set template by one-key operation
3) Automatically output SPC analysis report, which contains statistical values (such as Ca, Cp, Cpk, Pp, Ppk, etc.) and control
charts (such as mean and range charts, mean and standard deviation chart, median and range chart, single value and moving range
chart).
1) Place the object at will without any workholder
2) Max 512 features at once time
3) Quick and precise measurement for batch workpieces in CNC mode.
2. Accurate, consistent
1) Anybody can get the consistent results by one-key operation
2) Automatic focusing: Avoid deviation because of different focusing
3) Automatic feature identification: Consistent results from different measurement and different operators
3. Full functions, automatic report
1) User-friendly software, powerful functions, simple operation
2) In CNC mode, Quick and precise measurement for batch workpieces according to pre-set template by one-key operation
3) Automatically output SPC analysis report, which contains statistical values (such as Ca, Cp, Cpk, Pp, Ppk, etc.) and control
charts (such as mean and range charts, mean and standard deviation chart, median and range chart, single value and moving range
chart).
PRODUCT SPECIFICATIONS
|
Model No.
|
|
|
VX3500
|
VX8500
|
|||
|
Image Senor
|
|
|
5M CMOS
|
20M CMOS
|
|||
|
Display
|
External
|
|
24" LCD (Full HD: 1920×1080)
|
|
|||
|
Receiver Lens
|
Double magnification Telecentric Lens
|
|
Double Telecentric Lens
|
|
|||
|
Illumination system
|
Casting Illumination System
|
|
Four-segment illumination(White Light),
Ring directional illumination(Green Light)
|
|
|||
|
|
Transmission Illumination System
|
|
Telecentric transmission illumination(Green Light)
|
|
|||
|
Field of View
|
Wide-Field Mode
|
|
L500×W400mm(4 angle R50)
|
|
|||
|
|
High-Precision Mode
|
|
L430×W330mm
|
|
|||
|
Resolution
|
|
|
0.1μm
|
|
|||
|
Accuracy
|
Without binding*1
|
Wide-Field Mode
|
±5μm
|
±3μm
|
|||
|
|
|
High-Precision Mode
|
±2μm
|
±1.5μm
|
|||
|
|
With binding*2
|
Wide-Field Mode
|
±(7+0.02L)μm
|
±(5+0.02L)μm
|
|||
|
|
|
High-Precision Mode
|
±(4+0.02L)μm
|
±(3+0.02L)μm
|
|||
|
Height Meas.(Physical probe)(Optional)
|
Measuring Range(X*Y)
|
|
300×300mm
|
|
|||
|
|
Max Hole/Depth Ratio(h/Φ)
|
|
1.5
|
|
|||
|
|
Light probe diameter
|
|
Φ38μm
|
|
|||
|
|
Resolution
|
|
0.25μm
|
|
|||
|
|
W/o Z Axis movement
|
Height
|
±3.5mm
|
|
|||
|
|
Accuracy*4
|
Accuracy
|
±2μm
|
|
|||
|
|
With Z Axis movement
|
Height
|
200mm
|
|
|||
|
|
|
Accuracy
|
±(6+L/100)μm
|
|
|||
|
Software
|
|
|
VisionX
|
|
|||
|
Whether to support laser probe
|
|
|
Yes
|
|
|||
|
Stage
|
X Moving Range
|
|
410mm(Motorized)
|
|
|||
|
|
Y Moving Range
|
|
310mm(Motorized)
|
|
|||
|
|
Z Moving Range
|
|
200mm(Motorized)
|
|
|||
|
|
Loading Capacity
|
|
20kg
|
|
|||
|
Moving Speed
|
XY(mm/s)
|
|
200
|
|
|||
|
|
Z(mm/s)
|
|
100
|
|
|||
|
Size(LxWxH)
|
|
|
900×1340×1600mm
|
|
|||
|
Glass Stage Dimension
|
|
|
580*460mm
|
|
|||
|
Motion Control
|
|
|
AC servo system
|
|
|||
|
Weight
|
|
|
950kg
|
|
|||
|
Power supply
|
|
|
100-240VAC,50/60Hz,2A, Power 300W
|
|
|||
|
Working Environment
|
|
|
Temp.20℃±2℃, Humidity 20%~80%,
Vibration<0.002g, Less than15Hz
|
|
|||
Note:
*1 In the focus position, the environment temperature is +20 °C ± 1.0 °C
*2 In the focus position, the environment temperature is +20 °C ± 1.0 °C, and the load on the table is 1 kg or less; L is the
moving range of the table (mm).
*1 In the focus position, the environment temperature is +20 °C ± 1.0 °C
*2 In the focus position, the environment temperature is +20 °C ± 1.0 °C, and the load on the table is 1 kg or less; L is the
moving range of the table (mm).
Products Application
More Application
Product packaging
1. VX3500/VX8500 series of host machine 1pc
2. Built-in monitor 1pc
3. Power adapter 1pc
4. Cables 1set
5. VisionX software 1pc
6. User Manual 1pc
7. Product certificate and warranty card 1set
2. Built-in monitor 1pc
3. Power adapter 1pc
4. Cables 1set
5. VisionX software 1pc
6. User Manual 1pc
7. Product certificate and warranty card 1set
SIMILAR PRODUCTS
FAQ
1. Are you factory?
Yes, we are specialized in designing and producing precision measurement instruments and calibration instruments.
2. How many years experience do you have?
We have 16 years experience on measurement instruments and calibration instruments since 2002.
3. What size of your factory?
We have 5000 square meters of factory and 2,000 square meters of modern office
4. Can you accept OEM and ODM?
No, we only sell the products under Chotest brand.
5. Can I become your distributor of China supplier Chotest laser measuring system for Straightness measurement?
Yes, please contact our sales engineer.
6. What is the lead time?
Lead time is 30-60days in usual.
7. What is your payment term?
30% deposit first, balance payment before delivery.
We accept T/T, L/C.
8. How to install the machine?
We dispatch our engineers to install and debug the machine in site of the customer.
9. What is your warranty term?
We provide 1 year warranty after acceptance inspection by customer.
Free repair or replacement in 1 year warranty in case of any problem.
Response in 12 hours for emails or calls from customers in working days.
Yes, we are specialized in designing and producing precision measurement instruments and calibration instruments.
2. How many years experience do you have?
We have 16 years experience on measurement instruments and calibration instruments since 2002.
3. What size of your factory?
We have 5000 square meters of factory and 2,000 square meters of modern office
4. Can you accept OEM and ODM?
No, we only sell the products under Chotest brand.
5. Can I become your distributor of China supplier Chotest laser measuring system for Straightness measurement?
Yes, please contact our sales engineer.
6. What is the lead time?
Lead time is 30-60days in usual.
7. What is your payment term?
30% deposit first, balance payment before delivery.
We accept T/T, L/C.
8. How to install the machine?
We dispatch our engineers to install and debug the machine in site of the customer.
9. What is your warranty term?
We provide 1 year warranty after acceptance inspection by customer.
Free repair or replacement in 1 year warranty in case of any problem.
Response in 12 hours for emails or calls from customers in working days.
