Quick Details
-
Color:
-
16.7M
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MW-281ADN
-
Brightness:
-
700nits
-
Display Ratio:
-
16:3
-
Response Time:
-
8ms
-
Contrast Ratio:
-
1200:1
-
Lifespan (hours):
-
50000
-
Installation Type:
-
wall mount and stand on table are available
-
HS Code:
-
8528591090
-
Resolution:
-
1920*360
-
View Angle（H/V）:
-
175/175
-
Display area:
-
699.84*131.22mm
-
Video:
-
RM, RMVB, MKV , MOV, M4v, MPG, FLV,PMP
-
Audio:
-
MP3, WMA, WAV, EAAC+, MP2 dec, AC3, FLAC, APE, BSAC
-
Picture:
-
JPEG ,BMP ,GIF ,PNG
-
AC Input:
-
110-240V
-
Color option:
-
Black, white or optional
-
Housing material:
-
Metal housing
-
I/O interface:
-
1*SD card slot,1*LAN port, 2*USB output,Power switch
-
Installation:
-
Shelf mount, wall mount and stand on table are available
-
Warranty:
-
1 Year
Quick Details
-
Application:
-
Indoor
-
Type:
-
LCD
-
Brand Name:
-
Maxway
-
Color:
-
16.7M
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
MW-281ADN
-
Brightness:
-
700nits
-
Display Ratio:
-
16:3
-
Response Time:
-
8ms
-
Contrast Ratio:
-
1200:1
-
Lifespan (hours):
-
50000
-
Installation Type:
-
wall mount and stand on table are available
-
HS Code:
-
8528591090
-
Resolution:
-
1920*360
-
View Angle（H/V）:
-
175/175
-
Display area:
-
699.84*131.22mm
-
Video:
-
RM, RMVB, MKV , MOV, M4v, MPG, FLV,PMP
-
Audio:
-
MP3, WMA, WAV, EAAC+, MP2 dec, AC3, FLAC, APE, BSAC
-
Picture:
-
JPEG ,BMP ,GIF ,PNG
-
AC Input:
-
110-240V
-
Color option:
-
Black, white or optional
-
Housing material:
-
Metal housing
-
I/O interface:
-
1*SD card slot,1*LAN port, 2*USB output,Power switch
-
Installation:
-
Shelf mount, wall mount and stand on table are available
-
Warranty:
-
1 Year

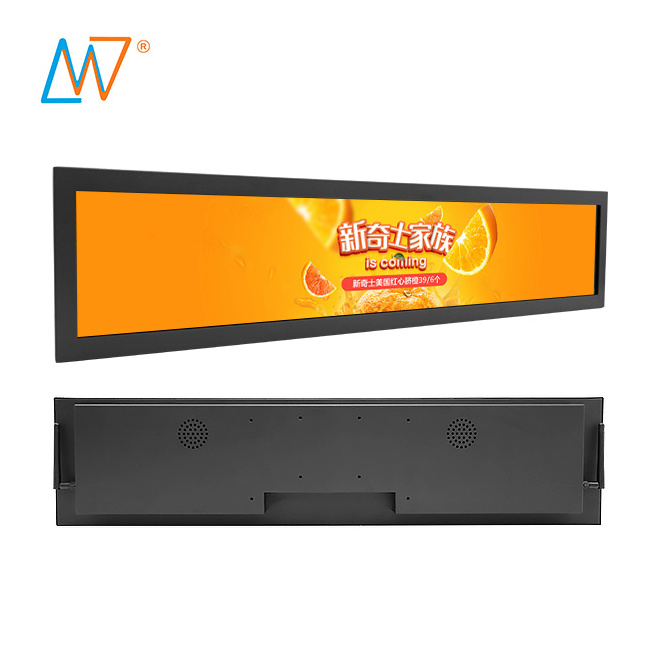

Product view of front, back, side and dimensions.
Product Name: Ultra Wide Screen 28 Inch Ultra-Wide Stretched Bar Type TFT LCD Advertising Display Monitor
Model number: MW-281ADN
Main features and specs.
Main features
| OS: | Android version 6.0/7.1/8.1/11.0 (Linux optional) | |
|
Hardware (All IN ONE PC optiional) |
CPU Options
|
A64 Quad-core ARM Cortex-A53,1.5GHz |
| RK3566 Quad-core ARM Cortex-A55,1.8GHz | ||
| RK3288 Quad-core ARM Cortex-A17,1.8GHz | ||
|
RK3399 Dual-core Cortex-A72 2.0GHz + Quad-core Cortex-A53 1.5GHz |
||
| RAM: | 2GB/4GB/8GB | |
| Nand Flash: | Standard 8GB(16GB/32GB/64G optional) | |
| WiFi network: | Support WIFI 802.11b/g/n | |
| 3G/4G network: | Support 3G/4G (optional) | |
| Managing software: |
Use our CMS software installed in server/your computer by which to control and group manage all terminals. Or you may use your own software |
|
| Playlist editor: | Multimedia contents can play by playlist mode and loop. | |
| Scheduling playback: |
Publish task by calendar, then appointed terminal/terminals would play accordingly |
|
| Split Screen display: | Design the layout as you like, supports video, photo, text, ppt, word, excel, flash, rss, wheather, clock, date, web all can be display on different areas | |
| Auto Playback: |
Set time power on /off and automatically display and loop, 7 days and 24 hours no manual operation. |
|
| video/picture rotation: | 90/180/270 degree. (vertical display or horizontal display) | |
| Display type: | Horizontal or vertical/ landscape or portrait | |
| Two speakers: | Built-in stereo speakers (2x5W) | |
| Files update: |
Files can be transmitted to flash memory automatically from server via LAN, WIFI or 3G/4G network |
|
| Touch screen: | Optional, to make interacive contents. | |
| Network options: | Standard with LAN and WiFi (3G/4G is optional) | |
| Accessories: | Use Manual,power cord, Remote Control, keys, screws, allen wrench | |
Welcome to contact us and get user manual for reference.
More specs
| LCD screen specs | Model number | MW-281ADN |
| Screen size: | 28" | |
| Display proportion: | 16:3 | |
|
Resolution(Pixel): |
1920*360 | |
| Display color: | 16.7 M | |
| Response time : | 8 ms | |
| Luminance: | 700 nits | |
| Contrast ratio: | 1200:1 | |
| View angel (L/R/U/D): | 89/89/89/89 | |
|
Media Formats |
Video: |
MPEG1/2/4,AVI,H.264,MOV,MKV,RMVB,RM,TS...etc
|
| Audio: |
MP3, WMA, WAV, EAAC+, MP2 dec, AC3, FLAC, APE, BSAC
|
|
| Picture: |
JPEG ,BMP ,GIF ,PNG
|
|
|
Others:
|
WORD, EXCEL, PPT, HTML
|
|
|
Power supply |
AC Input: | 110-240V |
| Appearance | Color option: | Black, white or optional |
| Housing material: | Metal housing | |
| I/O interface: | 1*SD card slot,1*LAN port,2*USB output,Power switch | |
| Installation: | Shelf mount, wall mount and stand on table are available | |
| Screen area: | 699.84*131.22MM | |
| Unit dimensions: | 730*162*29 MM | |
| Package: | Wooden packing /carton packing(optional) |
