Quick Details
-
Power:
-
5kw
-
Min. Lifting Height:
-
200mm
-
Table Size:
-
2200*1600mm
-
Overall Dimensions:
-
3100*1750*9000mm
-
Weight:
-
4500kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Name:
-

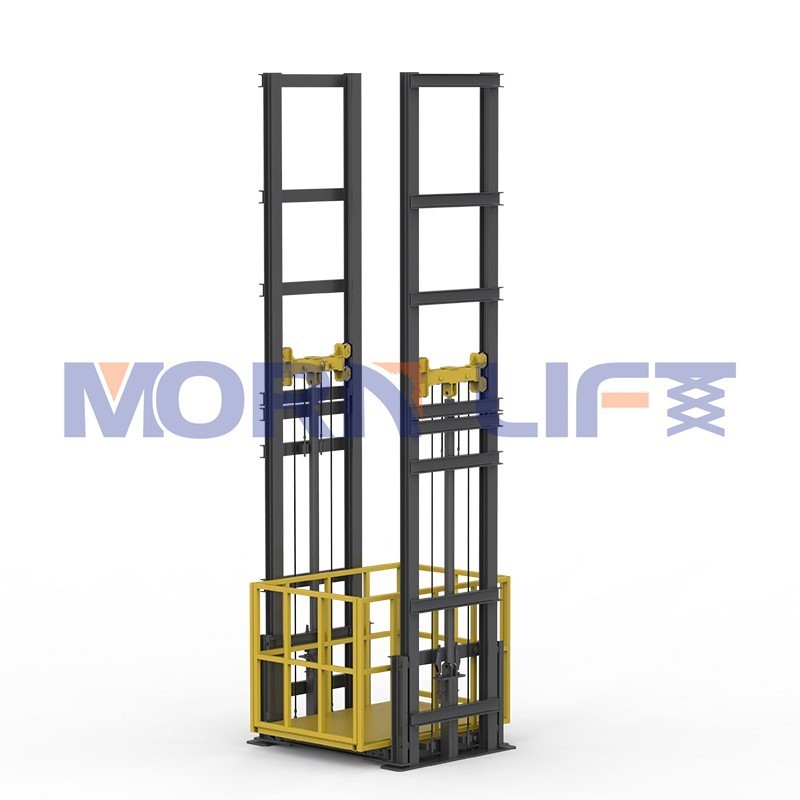

portable lift elevator
-
Material:
-
High-duty Steel Structure is used for portable lift elevator
-
Application:
-
portable lift elevator for transferring goods bewteen floors
-
OEM:
-
Print your logo on portable lift elevator
-
installation:
-
in pit or on ground
-
Painting:
-
Powder coating for portable lift elevator
-
Power supply:
-
3 phase power is necessary for portable lift elevator
-
safety interlocking:
-
portable lift elevator will stop working if any door is open
-
Optional goods lift parts:
-
Digital control button,overload warning device and protection box
-
Certification:
-
CE ISO9001
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MORN
-
Power:
-
5kw
-
Min. Lifting Height:
-
200mm
-
Table Size:
-
2200*1600mm
-
Overall Dimensions:
-
3100*1750*9000mm
-
Weight:
-
4500kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Name:
-
portable lift elevator
-
Material:
-
High-duty Steel Structure is used for portable lift elevator
-
Application:
-
portable lift elevator for transferring goods bewteen floors
-
OEM:
-
Print your logo on portable lift elevator
-
installation:
-
in pit or on ground
-
Painting:
-
Powder coating for portable lift elevator
-
Power supply:
-
3 phase power is necessary for portable lift elevator
-
safety interlocking:
-
portable lift elevator will stop working if any door is open
-
Optional goods lift parts:
-
Digital control button,overload warning device and protection box
-
Certification:
-
CE ISO9001
Products Description
Product Paramenters
|
MODEL
|
LOAD CAPACITY
|
PLATFORM SIZE
|
TRAVEL HEIGHT
|
PIT DEPTH
|
DIMENSION
|
|||||
|
LRL3-2.4
|
3000kg
|
2000*2000mm
|
2.4m
|
350mm
|
2.8*2.16*4.9m
|
|||||
|
LRL2-5
|
2000kg
|
2100*1200mm
|
5m
|
350mm
|
2.85*1.36*7.5m
|
|||||
|
LRL1-4.5
|
1000kg
|
2100*1500mm
|
4.5m
|
350mm
|
2.75*1.65*7m
|
|||||
|
LRL3-6.5
|
5000kg
|
2200*1600mm
|
6.5m
|
350mm
|
3*1.75*9m
|
|||||
|
LRL0.3-4
|
3000kg
|
2200*1900mm
|
6.5m
|
350mm
|
2.95*2.05*9m
|
|||||
|
Cargo Lift is customizable in loading capacity, platform size and travel height.
|
|
|
|
|
|
|||||
