Quick Details
-
Packaging Type:
-
Vacuum Package, Carton Box.
-
Application:
-
Remote Diagnosis, Remote Consultation
-
Type:
-
USB Camera Module
-
Series:
-
USB2.0 Camera Module
-
Features:
-
HD USB Camera Module
-
Mounting Type:
-
USB2.0
-
Description:
-
Camera Module USB 48MP
-
Sensor Model:
-
ISOCELL GM1 S5KGM1
-
Sensor Size:
-
1/2"
-
Drive-free Agreement:
-
USB Video Class(UVC)
-
Standard Interface:
-
USB2.0 High Speed
-
Operating Current:
-
460mA(VGA)
-
Interface:
-
USB2.0
-
Customized support:
-
OEM
-
Output Format:
-
MJPG/YUY2
-
Warranty:
-
10 Years
-
Drive Mode:
-
Free Diver
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sincere First
-
Model Number:
-
SF-ANVIS-48M AF 48MP U2.0
-
Packaging Type:
-
Vacuum Package, Carton Box.
-
Application:
-
Remote Diagnosis, Remote Consultation
-
Type:
-
USB Camera Module
-
Series:
-
USB2.0 Camera Module
-
Features:
-
HD USB Camera Module
-
Mounting Type:
-
USB2.0
-
Description:
-
Camera Module USB 48MP
-
Sensor Model:
-
ISOCELL GM1 S5KGM1
-
Sensor Size:
-
1/2"
-
Drive-free Agreement:
-
USB Video Class(UVC)
-
Standard Interface:
-
USB2.0 High Speed
-
Operating Current:
-
460mA(VGA)
-
Interface:
-
USB2.0
-
Customized support:
-
OEM
-
Output Format:
-
MJPG/YUY2
-
Warranty:
-
10 Years
-
Drive Mode:
-
Free Diver
Products Description
|
Sensor:
|
ISOCELL GM1
S5KGM1
|
Pixels:
|
48MP
|
|||
|
Photosensitive
:
|
1/2"
|
Module Size
:
|
Two layers 38mmX38mm
|
|||
|
Pixel Size
:
|
0.8μm X 0.8μm
|
Imaging Distance
:
|
1CM~∞
|
|||
|
Standard Interface
:
|
USB2.0 High Speed
|
Drive-free Agreement
:
|
UVC
|
|||
|

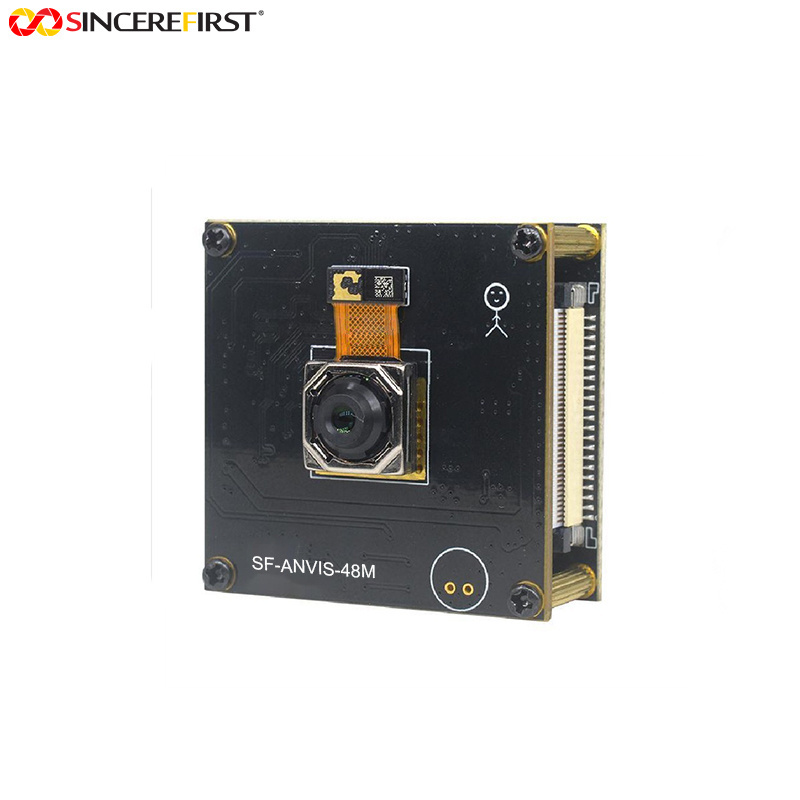

SF-ANVIS-48M ISOCELL GM1 Description:
This is the highest resolution USB2.0 camera module, it is 48MP (8000x6000) resolution with 1/2'' Samsung ISOCELL GM1 (S5KGM1 ) sensor, which uses ISOCELL Plus technology that significantly increases light sensitivity and color fidelity by 0.8 μm pixels for more accurate and clearer photos. It uses Tetrapixel technology that mimics big pixels to take brighter pictures of 3 MP while a remosaic algorithm creates detailed 12 MP high-resolution images. This image sensor has smart WDR technology that helps to capture vivid photos with greater details even in mixed lighting conditions.It has a PDAF autofocus, tetra chroma and an RGB Bayer color filter pattern. This image sensor is ideal for mobile phone applications. SF-ANVIS-48M ISOCELL GM1 Features: ◆ 48MP resolution with 1/2'' Samsung ISOCELL GM1 (S5KGM1 ) sensor ◆USB2.0 interface ◆Excellent image quality ◆Fixed Focus (Manually adjustable) ◆UVC compliant, Plug & Play ◆Support Linux, Android, Mac and Windows Camera Module, USB Camera Module, USB Board Camera, Board Level Camera USB, USB2.0, USB3.0 Camera Module, Board Camera: The USB camera module is a general-purpose camera control board designed for both PCs and embedded systems like the ARM,Raspberry Pi,Odroid,and similar hardware. It supports almost all parallel interface image sensors and many MIPI camera sensors, including both global and rolling shutter sensors. The USB cameras adopt the standards of the USB interface, so they are easily expandable and adapted. What’s more, they could be made driver-free by following the USB device standards,which is suitable for the image sof tware or system applications. USB Camera Module Application Areas Camera Module For Imaging And Vision Solutions, Integrated Complex And Customized Technology, Machine Vision, Intelligent Systems, Future Security, Optical Technology Solutions, Camera Module Customized Solutions, Internet Of Things End-to-end Solution, Iris Recognition Technology, Iris Solutions, Face Recognition, VR High End Camera Solutions, Smart Home Solutions, Intelligent Hardware Solutions, Professional Camera Modules, Specially Designed For Small Uav, Airborne Camera Modules, Uav Solutions, Uav Special Modules, Drone Solutions, Aerial Filming Solutions, Optical Technology Solutions, Mobile Phone Camera Module, Camera Solutions, Optronics Solutions Imaging Technology Solutions, Video Technology Solutions, Optoelectonic Research, Infrared Imagers For Industry, Embedded Systems Solutions Main Developmet Board, Graphics Processing Unit, System Adaption Main Developmet Board: Arduino, ESP32, Raspberry Pi, NVIDIA Graphics Processing Unit: Ambarella, Rockchip, MediaTek, Qualcomm, NVIDIA, ATI System Adaption: Self-developed Software, Android, Window, MAC-IOS
