Quick Details
-
Raw material:
-
6082-T6
-
Aluminum Size:
-
290mm/300mm/400mm/ 500mm
-
Shape:
-
ladder, triangular, square, circle
-
Color:
-
silver/ black/ red/ oringe
-
Certification:
-
TUV approved
-
Connection:
-
Spigot Connector
-
Weight:
-
5.3 KG - 21.3 KG
-
Main Tube:
-
50x3mm
-
Vice Tube:
-
50x2/30x2mm
-
Brace Tube:
-
20x2/25x2mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RK
-
Model Number:
-
Aluminum Truss
-
Raw material:
-
6082-T6
-
Aluminum Size:
-
290mm/300mm/400mm/ 500mm
-
Shape:
-
ladder, triangular, square, circle
-
Color:
-
silver/ black/ red/ oringe
-
Certification:
-
TUV approved
-
Connection:
-
Spigot Connector
-
Weight:
-
5.3 KG - 21.3 KG
-
Main Tube:
-
50x3mm
-
Vice Tube:
-
50x2/30x2mm
-
Brace Tube:
-
20x2/25x2mm
Product details
Lighting Tower and Outdoor Stage Truss for Event
1.Aluminum truss specification
| Size: | 290*290mm |
| Main tube | 50*3mm |
| Brace Tube | 20*2mm |
| Length | 0.5m-4m |
| Material | Aluminum Alloy 6082-T6 |
| Connection | Spigot Connector |
| Weight | 5.30 KG - 21.3 KG |
| Application | For stage,concert,dancing,fashion show and so on |
| Quality guarantee | 2 years |
| Certificate | TUV, CE |
2.Aluminum truss size
| Size(mm) | Mian Tube(mm) | Brace Tube(mm) | Horizontal tube(mm) |
| 120*120 | 20*2 | 12*1.5 | 20*2 |
| 220*220 | 30*2 | 12*1.5 | 30*2 |
| 290*290 | 50*2 | 20*2 | 50*2 |
| 400*400 | 50*3 | 25*2 | 50*2 |
| 520*520 | 50*3 | 50*2/30*2 | 50*3 |
| 520*760 | 50*3 | 50*2/30*2 | 50*3 |
3.Truss Charactistic
(1)Professional welding technology,beautiful outline and polishing finish
(2)Lightweight but strong loading capacity,durable and firm
(3)Made by aluminum alloy,stable and energy saving
(4)Long span,widely used for different scale of different occasion
(5)Superior raw material,high quality and cheap price
3.Truss Charactistic
(1)Professional welding technology,beautiful outline and polishing finish
(2)Lightweight but strong loading capacity,durable and firm
(3)Made by aluminum alloy,stable and energy saving
(4)Long span,widely used for different scale of different occasion
(5)Superior raw material,high quality and cheap price
Dimension:
1. Spigot truss:
230x230mm / 290x290mm / 390x390mm / 520x520mm;
2. Bolt truss:
100x100mm / 150x150mm / 200x200mm / 250x250mm / 300x300mm / 350x350mm / 400x400mm, 450x450mm / 400x600mm / 500x500mm / 500x600mm / 520x760mm / 600x760mm / 760x910mm;
3. Shape: Ladder truss, triangle truss, sqaure truss, round/circle truss, arc and anomalistic truss

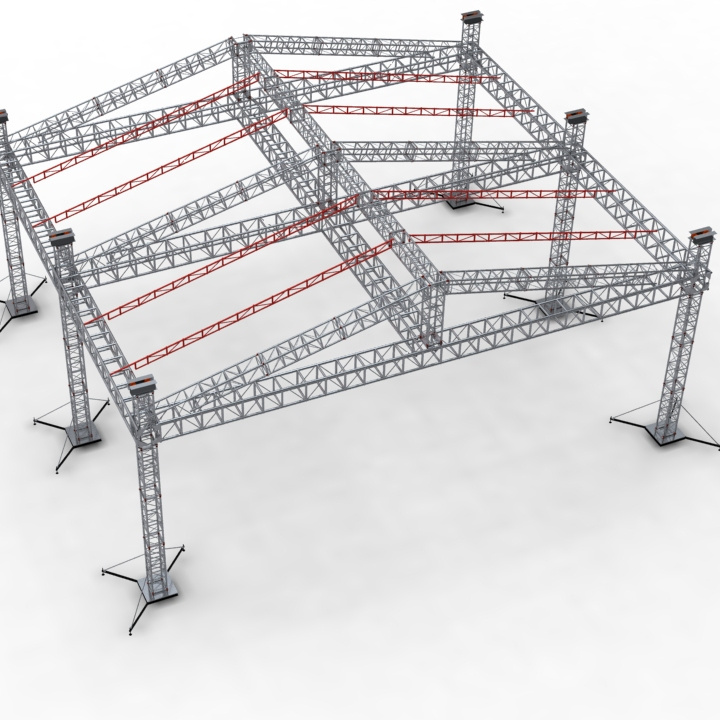

Project: Tower truss system; with flat roof; with triangle roof; with pentroof; with two wings; with portable stage; with tent^. etc. You can hang LED, lighting, tent, sound, LED screen and banner on the truss, suitable for displays, exhibitons, show, concert, performance, events, etc., finish in a snap, very strong, convenient for set up and transportation.
4.Truss Welding :
5. truss corner
Packaging way:
.
Shipping ways:
