Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Meir Heng
-
Model Number:
-
2CY
-
Place of Origin:
-
Hubei, China
-
Horsepower:
-
0-15hp
-
Cable Length:
-
/
-
Outlet Size:
-
0-3inch
-
Power:
-
0-11kW, Electric
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Rotary Pump
-
Casing material:
-
Cast iron, stainless steel
-
Frequency:
-
50hz or 60hz
-
Customized product:
-
Available
-
Sealing:
-
Mechanical seal, rubber seal, etc
-
Quick-wear part:
-
Gear, seal, etc
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry
-
Pressure:
-
Low Pressure
-
Voltage:
-
110-440V, 110V, 220V, 240V, 380V, 400V, 415V, 440V, etc
-
Warranty:
-
1 year
-
Brand Name:
-
Meir Heng
-
Model Number:
-
2CY
-
Place of Origin:
-
Hubei, China
-
Horsepower:
-
0-15hp
-
Cable Length:
-
/
-
Outlet Size:
-
0-3inch
-
Power:
-
0-11kW, Electric
-
Standard or Nonstandard:
-
Standard
-
Theory:
-
Rotary Pump
-
Casing material:
-
Cast iron, stainless steel
-
Frequency:
-
50hz or 60hz
-
Customized product:
-
Available
-
Sealing:
-
Mechanical seal, rubber seal, etc
-
Quick-wear part:
-
Gear, seal, etc
2CY high pressure electric motor lube oil transfer pump
Brief introduction
1. 2CY gear oil pump mainly consists of left and right pump cover, pump body, main and passive gear shaft, axle sleeve, oil seal and other parts.
2. It has the advantages of compact structure, easy operation and convenient maintenance.
3. It is used for the delivery of the lubricating oil , diesel or other liquid oil without solids and fiber with normal temperature below 80°C and viscosity is below 1.5*10 3 c.s.t.
4. The pump is made of stainless steel material , it can transfer the non lubricating oil, drink and low corrosive liquid . And with bronze gear , pump can transport low flash one such as gasoline, benzene, etc.
5. The pump can be equipped with ordinary motor or explosion proof motor, adjustable speed motor .
Product details
|
Working Principle: |
Double Gears |
|
Main applications: |
Oil |
|
Driver: |
Electric motor, diesel motor. |
|
Power Specs: |
220/380/415V 3phase; 110/220/240V 1phase; 50hz/60hz,etc |
|
Max.permissible fluid temperature: |
80°C |
|
Type of connection: |
Flange, Thread, Quick Coupled. |
|
Installation position: |
Horizontal |
|
Casing parts material: |
Cast iron, Stainless Steel |
|
Shaft seal type: |
Mechanical seal; Rubber seal |
|
Free passage: |
00 mm |
|
Maximum viscosity: |
1.5X10 3 CST |
|
Maximum drive rating: |
11KW(15HP) |
|
Maximum caliber: |
80mm(3inch) |
|
Maximum discharge-side pressure: |
2.5Mpa(25bar) |
|
Flow rate range: |
1.08-29m 3 /h(4.8-127.6US.GPM) |
Performance data
More pictures

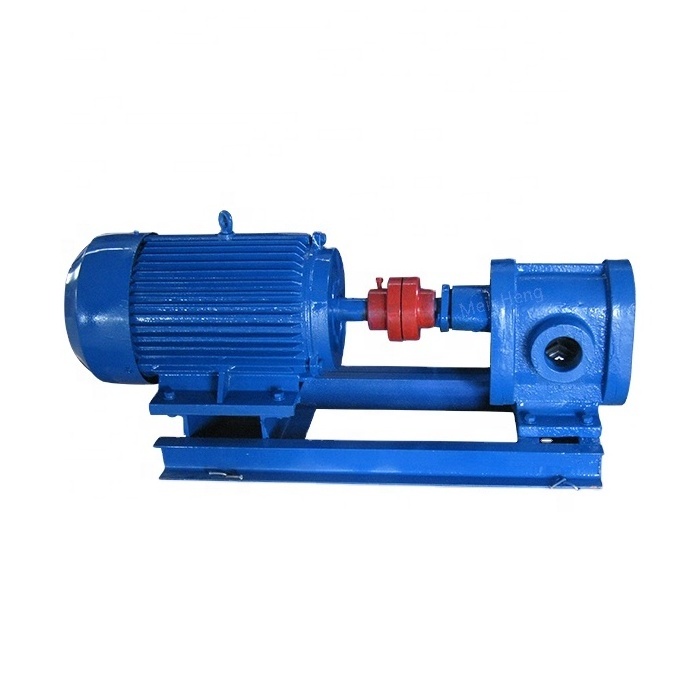

2CY gear oil pump
bare pump
>>>View more gear pump pictures, pls click it.
