Quick Details
-
Brand Name:
-
HM
-
Model Number:
-
HM-MTS102-3
-
Max. Current:
-
5A
-
Product name:
-
Brass toggle switch
-
Terminal Options:
-
2 Solder Terminal
-
Material:
-
PBT
-
Function:
-
ON-OFF
-
Insulation Resistance:
-
1000mΩ min (500VDC)
-
Operating Temperature:
-
-25℃~+85℃
-
Contact Resistance:
-
50mΩ max
-
Rating:
-
5A 125VAC/3A 250VAC
-
Mechanical Life:
-
50000 Cycles
-
Color:
-
Red
-
Certification:
-
ROHS,CQC
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HM
-
Model Number:
-
HM-MTS102-3
-
Max. Current:
-
5A
-
Product name:
-
Brass toggle switch
-
Terminal Options:
-
2 Solder Terminal
-
Material:
-
PBT
-
Function:
-
ON-OFF
-
Insulation Resistance:
-
1000mΩ min (500VDC)
-
Operating Temperature:
-
-25℃~+85℃
-
Contact Resistance:
-
50mΩ max
-
Rating:
-
5A 125VAC/3A 250VAC
-
Mechanical Life:
-
50000 Cycles
-
Color:
-
Red
-
Certification:
-
ROHS,CQC

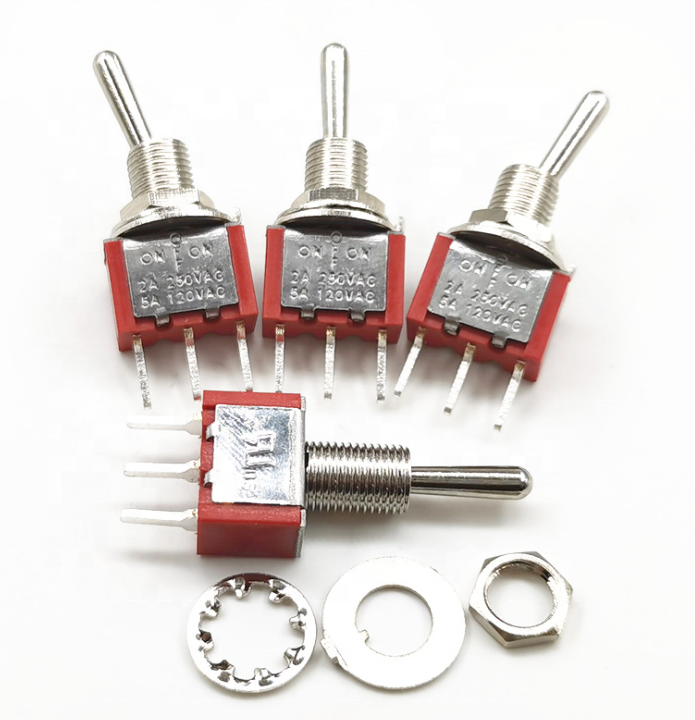

Metal toggle switch 3 pins single pole double throw 3 way on off on mini toggle switch with long lever handle 5A 250VAC
Metal toggle switch 3 pins single pole double throw 3 way on off on mini toggle switch with long lever handle 5A 250VAC
Product Description
|
Product Name |
3 way on off on mini toggle switch |
| Rating | 6A 125VAC/3A 250VAC |
| Function | ON-OFF |
| Torque | Max.5kg·cm(70ounce·inch) |
| Contact Resistance | 50mΩ max |
| Electrical Life | ≥ 10,000 Cycles |
| Mechanical Life | ≥ 100,000 Cycles |
| Dielectric strength | 1500VAC 1 minute |
| Operating Temperature | -25℃~+85℃ |
| Insulation Resistance | 1000mΩ min (500VDC) |
