Quick Details
-
Brand Name:
-
Tianchuanqi
-
Weight (KG):
-
1 KG
-
Product name:
-
intermediate-speed laser scanning galvo motor
-
Power voltage:
-
±15 V/1 A, ±12 V (optional)
-
Laser type:
-
380-700nm
-
Material:
-
Aluminum
-
Operating Temperature:
-
10~40 ℃
-
Application:
-
Laser show laser light laser marking
-
signal input:
-
analog signal
-
Scan speed:
-
25kpps
-
Scan angle:
-
40 degree
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
Laser
-
Marketing Type:
-
New Product 2021
-
Brand Name:
-
Tianchuanqi
-
Weight (KG):
-
1 KG
-
Product name:
-
intermediate-speed laser scanning galvo motor
-
Power voltage:
-
±15 V/1 A, ±12 V (optional)
-
Laser type:
-
380-700nm
-
Material:
-
Aluminum
-
Operating Temperature:
-
10~40 ℃
-
Application:
-
Laser show laser light laser marking
-
signal input:
-
analog signal
-
Scan speed:
-
25kpps
-
Scan angle:
-
40 degree
Descriptions for general product features

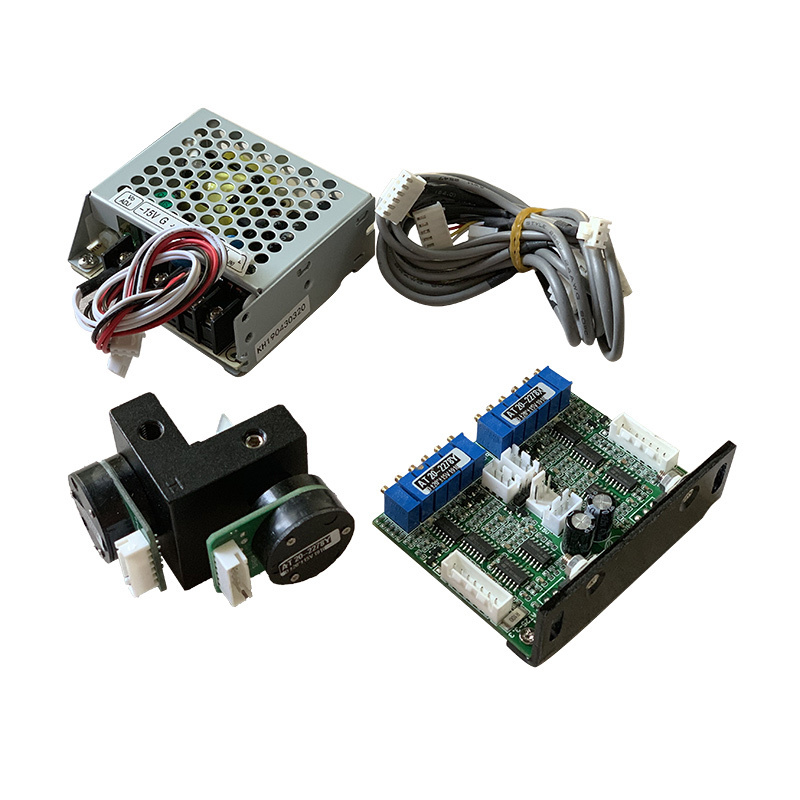

Laser scanning galvo motor series
Galvo motor is set of core parts of lase scanning system.
Through simulating the voltage signal,change of laser reflecting lens
into various angles driven by galvo motor can be controlled to make
the incidence point of laser beam into different locatioms.
The galvo motor responses very fast to make the laser point quickly
move on a two-dimensional surface,with a controllable movement
trajectory,so that the required diagrams and texts can be drawn
and scanned by laser.
Shenzhen Tianchuanqi is a Manufacturing &Trading .
We specialize in the laser industry for 10 + years.
Independent research and development.
Support Customization.
Optional:
If you need 12V voltage input, please let me know!!!
Strengths of our galvanometers:
High cost performance Low heat emission
Exquisite circuit Stable performance
Small motor volume Long service life
Specification parameters:
| Power voltage | ±15 V/1 A, ±12 V (optional) |
| Input impedance of analog signal | 200 K±1% Ω (differential input) |
| Scale coefficient of position input | 0.5 V/° |
| Input range of analog location | ±5 V, ±10 V (optional) |
| Electronic temperature stability | 40 PPM/°C |
| Operating temperature | 0~40°C |
| Size of driver board | 61 mm×71 mm×26 mm |
| Degree of linearity | 99.0% |
| Scale drift | 100 PPM/°C |
| Repeatability precision | 15 microradians |
| Maximum scanning angle | ±20° |
| Scanning speed | >20 Kpps (30k ILDA standard test image) |
| Lens reflectance |
>98% @45° incidence(covering wavelength: 380 nm-700 nm) |
| Lens size | 7*11*0.6 mm |
Tell me your needs
For different application areas,
replace the lens with a suitable motor to achieve your requirements.
Single axis, free combination of X Y axis.
Which are being widely used in many sectors including medical equipment, industrial
automation devices,robots etc.For example laser shows ,laser graphic imaging,
Laser detetion, Lidar, 3D vsion, SLA 3D printing,cosmetic laser surgery,dentistry
and ophthalmology at present.
After-sales service:
The warranty period is 1 year.
The use of galvanometer has a certain technical content and
is often damaged due to improper operation.
During the warranty period, the round-trip freight will be paid by you;
the material and labor costs will be paid by us.
Outside the warranty period, you will pay for round-trip shipping,
material costs and labor costs.
