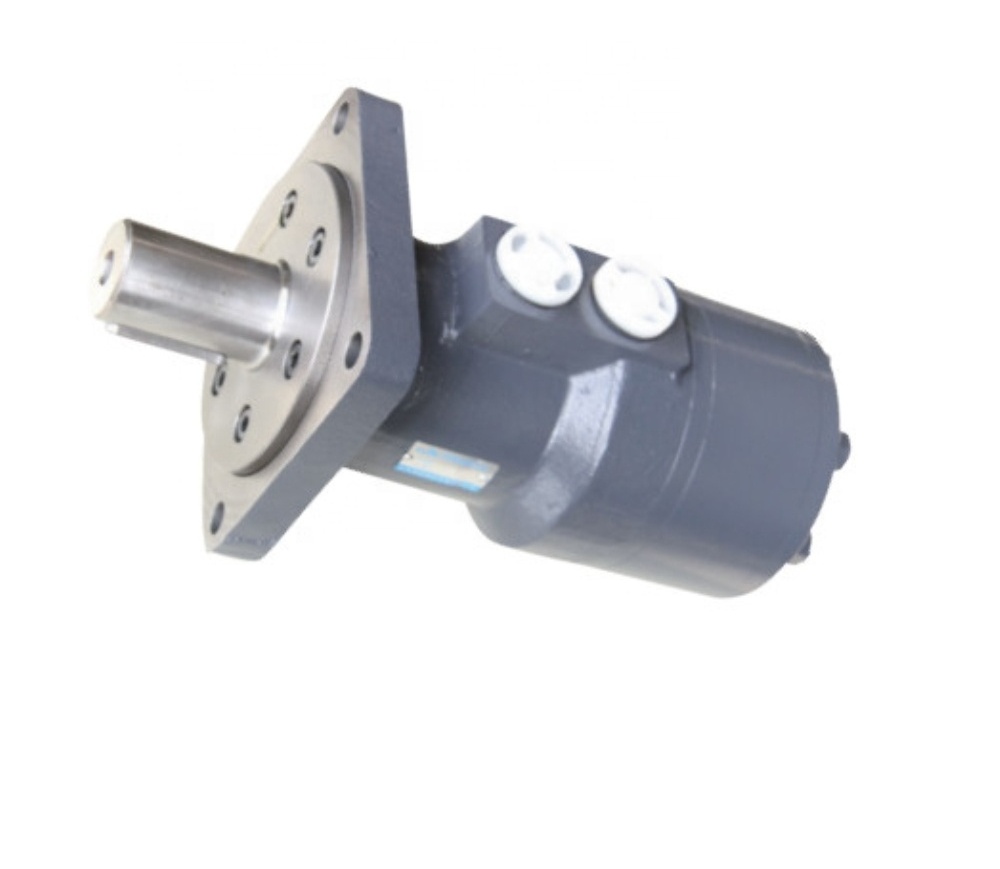

high torque orbital hydraulic motor

Characteristic features:
· It adapts the gerolor design, which has a higher distribution accuracy and Mechanical effiiency.
· Double-rolling bearing design, which has a greater lateral load capacity.
· Credible design of shaft seal, which can bear higher pressure and be used in parallel or in series.
· Direction of shaft rotation and speed can be controlled easily and smoothly.
· A variety of connection types of flnge, output shaft and oil port.
specification:

Note:

1. Intermittent means the entrance of the maximum pressure; continuous working pressure means the differential pressure.
2. Motor should not work under the highest pressure and the maximum speed.
3. The running time should not exceed 10% under intermittent working conditions.
4. Recommending N68 anti-wear hydraulic oil, viscosity 37-73cSt, cleanliness ISO18/13.
5. The Maximum working teMPerature is 80 °.
6. One hour running time under 40% of maximum working pressure is recommended before full capacity working.
7. The maximum allowable back pressure is 10MPa, but the recommended back pressure should not exceed 5MPa.a leaking pipes is needed when exceeding.

performance data:

ordering information:

using range:
