Quick Details
-
Model Number:
-
WLTF015
-
Specification:
-
ID200-900mm
-
Length:
-
800-2500mm
-
Thickness:
-
6-18mm
-
Standard:
-
ISO9001
-
Type:
-
Floating dredging pipes
-
Advantage:
-
Corrosion resistance
-
Feature:
-
UV Resistant
-
Durability:
-
Long time using
-
Color:
-
Red or orange
-
Surface:
-
Smooth
-
OEM:
-
Yes
-
Craft:
-
Extruded
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Olive
-
Model Number:
-
WLTF015
-
Specification:
-
ID200-900mm
-
Length:
-
800-2500mm
-
Thickness:
-
6-18mm
-
Standard:
-
ISO9001
-
Type:
-
Floating dredging pipes
-
Advantage:
-
Corrosion resistance
-
Feature:
-
UV Resistant
-
Durability:
-
Long time using
-
Color:
-
Red or orange
-
Surface:
-
Smooth
-
OEM:
-
Yes
-
Craft:
-
Extruded
Products Description

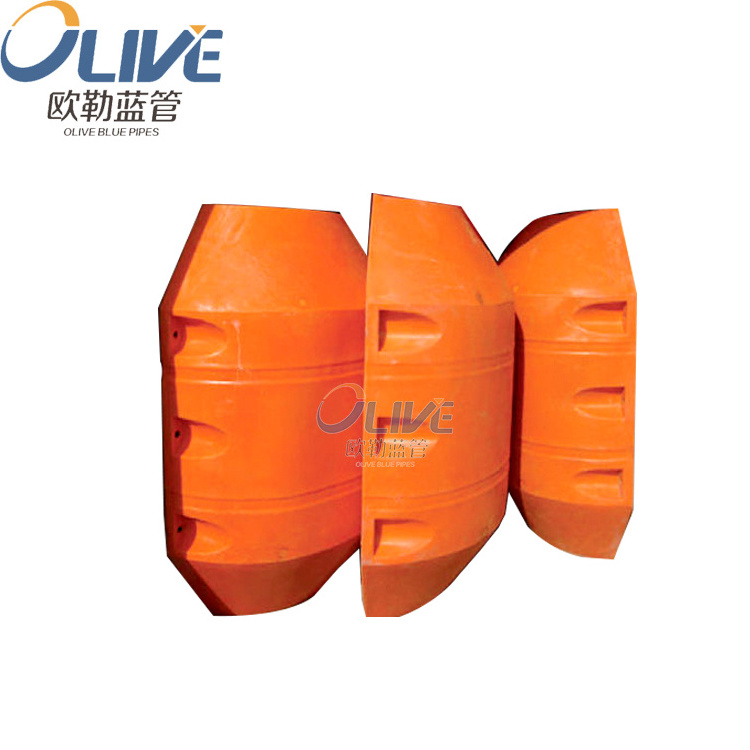

- HDPE Buoy Floats with Hard Foam Filled -
|
Item
|
Technical Index of Hull
|
Item
|
Inside Technical Index
|
|||
|
Tensile Strength
|
≥13.1MPa
|
Water Absorption
|
1-2g/100cm2
|
|||
|
Break Elongation
|
≥11.1%
|
Breaking Strength
|
0.08-0.1MPa
|
|||
|
Impact Strength
|
≥32.4KJ/m2
|
Breaking Elongation
|
4-6%
|
|||
|
Bending Strength
|
≥15.7MPa
|
Compressive Strength
|
0.1-0.24MPa
|
|||
|
Weather Resistance
After total aging energy≥3.5GJ/m2
|
Break Elongation %≥
|
|
10
|
|||
|
|
Oxidative Induction Time 200°Cmm≥
|
|
10
|
|||
|
Characteristic
|
|
|
|
|||
|
* Good flexibility, excellent impact resistance, particular suitable for construction in open sea
|
* Light weight easy to install and handle, low costs for moving
|
* High corrosive resistance, 3 times longer life than steel floats
|
* Higher cost performance than steel float
|
|||
|
Float I.D.
|
FloatO.D.
|
Float Length
|
Thickness of Plastic
|
Net Buoyancy
|
||||
|
mm
|
mm
|
mm
|
mm
|
KGS/Float
|
||||
|
160-180
|
500
|
800
|
4
|
280
|
||||
|
225
|
600
|
700
|
4
|
320
|
||||
|
280
|
700
|
900
|
4
|
450
|
||||
|
340
|
1000
|
1000
|
6
|
500
|
||||
|
410
|
1100
|
1100
|
6
|
550
|
||||
|
460
|
1200
|
1200
|
6
|
1200
|
||||
|
510
|
1300
|
1300
|
7
|
1250
|
||||
|
560
|
1300
|
1500
|
8
|
1360
|
||||
|
610
|
1400
|
1600
|
8
|
1600
|
||||
|
630
|
1480
|
1600
|
8
|
1950
|
||||
|
680
|
1550
|
1800
|
8
|
2200
|
||||
|
730
|
1620
|
1900
|
9
|
2300
|
||||
|
780
|
1700
|
2000
|
9
|
2700
|
||||
|
840
|
1850
|
2100
|
12
|
3200
|
||||
|
890
|
2000
|
2400
|
12
|
4600
|
||||
|
940
|
2040
|
2500
|
13
|
4900
|
||||
|
1150
|
2400
|
2600
|
14
|
6500
|
||||
|
NOTE:
1.1 pair of floaters could float 4 meters long HDPE dredging pipe and 1.5m long rubber hose.
2. The floaters customerized is available.
|
|
|
|
|
||||
