The machine is commonly used in plastic recycling and processing industries. Our pulverizers are suitable for various types of plastics commonly used in the market.This MF series mill can crush HDPE, LDPE, LLDPE, PVC, PE, PET pellet or flakes up to 12mm in size. Final poeder mesh size in
general is between 20-80mesh.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
sevenstars, sevenstars
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
300cmx150cmx400cm
-
Power (kW):
-
45
-
Weight (T):
-
2
-
Name:
-
plastic pulverizer machine
-
Color:
-
Sevenstars standard or customerized
-
Keyword:
-
palstic recycling machine
-
Cooling type:
-
water cooling
-
After-sales Service Provided:
-
1 Year
-
Function:
-
pulverize
-
Crushing material:
-
PVC PP PE LLDPE LDPE HDPE ABS
-
Capacity:
-
200-450kg/h,based on the models and material
-
Mesh size:
-
20-80mesh
Quick Details
-
Max.Production Capacity (kg/h):
-
500
-
Place of Origin:
-
Jiangsu, China
-
Production Capacity (kg/h):
-
150 - 500 kg/h
-
Brand Name:
-
sevenstars, sevenstars
-
Voltage:
-
customized
-
Dimension(L*W*H):
-
300cmx150cmx400cm
-
Power (kW):
-
45
-
Weight (T):
-
2
-
Name:
-
plastic pulverizer machine
-
Color:
-
Sevenstars standard or customerized
-
Keyword:
-
palstic recycling machine
-
Cooling type:
-
water cooling
-
After-sales Service Provided:
-
1 Year
-
Function:
-
pulverize
-
Crushing material:
-
PVC PP PE LLDPE LDPE HDPE ABS
-
Capacity:
-
200-450kg/h,based on the models and material
-
Mesh size:
-
20-80mesh
Products Description
Application
Suitable Materials
Effect Display
Technology Features
1.This machine have water cycle cooling and wind cooling,the machine can be applied into processing heat sensitive material and it can cool the machine body very good.
2.With the tail-wagging air stream(partly eddy flow)produced by the tail-wagging of the main shaft capstan of the machine(without sieving).
3.Both the board and the cutting blade are made of abrasion-resistant steel,with excellent performance after heat treatment.
4.Compare with same type pulverizer, the capacity of this mode is more higher and with severeness of framework,the volume of the machine is quite small.the cover of main machine can be opened for maintain.
5.It is completely airproof and without any dust leakage.Equipped with dust collection device to reduce dust pollution and close blower for discharge can reduce labor intensity of worker.
6.With winding reclaiming equipment,the machine is features by cooling materials evenly,quick cooling and some other characteristics.
2.With the tail-wagging air stream(partly eddy flow)produced by the tail-wagging of the main shaft capstan of the machine(without sieving).
3.Both the board and the cutting blade are made of abrasion-resistant steel,with excellent performance after heat treatment.
4.Compare with same type pulverizer, the capacity of this mode is more higher and with severeness of framework,the volume of the machine is quite small.the cover of main machine can be opened for maintain.
5.It is completely airproof and without any dust leakage.Equipped with dust collection device to reduce dust pollution and close blower for discharge can reduce labor intensity of worker.
6.With winding reclaiming equipment,the machine is features by cooling materials evenly,quick cooling and some other characteristics.
Product parameters
MF series
belongs to the Turbo-type pulverizer for hard pvc.Different number of blades can be configured according to the size of grinding cavity.It is mainly for hard PVC,ABS, EVA，PVC pipe ,plastic profile and so on.
|
Model
|
MF400
|
MF500
|
MF600
|
MF800
|
|
Diameter of milling blade
|
400mm
|
500mm
|
600mm
|
800mm
|
|
Power
|
30KW
|
45KW
|
55KW
|
90KW
|
|
Blade material
|
SKD-11 OR D53
|
SKD-11 OR D53
|
SKD-11 OR D53
|
SKD-11 OR D53
|
|
Capacity
|
150KG/H
|
250KG/H
|
350KG/H
|
450KG/H
|
SMW series
plastic pulverizer belongs to the Disc-type pulverizer series, which disc diameter from 500mm to 800mm，applicable PE,soft PVC,PP, LLDPE and others.
|
Model
|
SMW-500
|
SMW-600
|
SMW-800
|
|
Blade diameter
|
500mm±1mm
|
600mm±1mm
|
800mm±1mm
|
|
Main motor power
|
45kw；AC motor
|
55kw；AC motor
|
90kw；AC motor
|
|
Capacity
|
250kg/h
|
300-400kg/h
|
500-800kg/h
|
If you want more sizes, please contact us for details
Detailed photo
1.Blade
PE grinding disc
PP grinding disc
PVC grinding disc
2.Composition of machine
Control Cabinet
Conveyor
Grinding Disc
Off Fan
Outlet

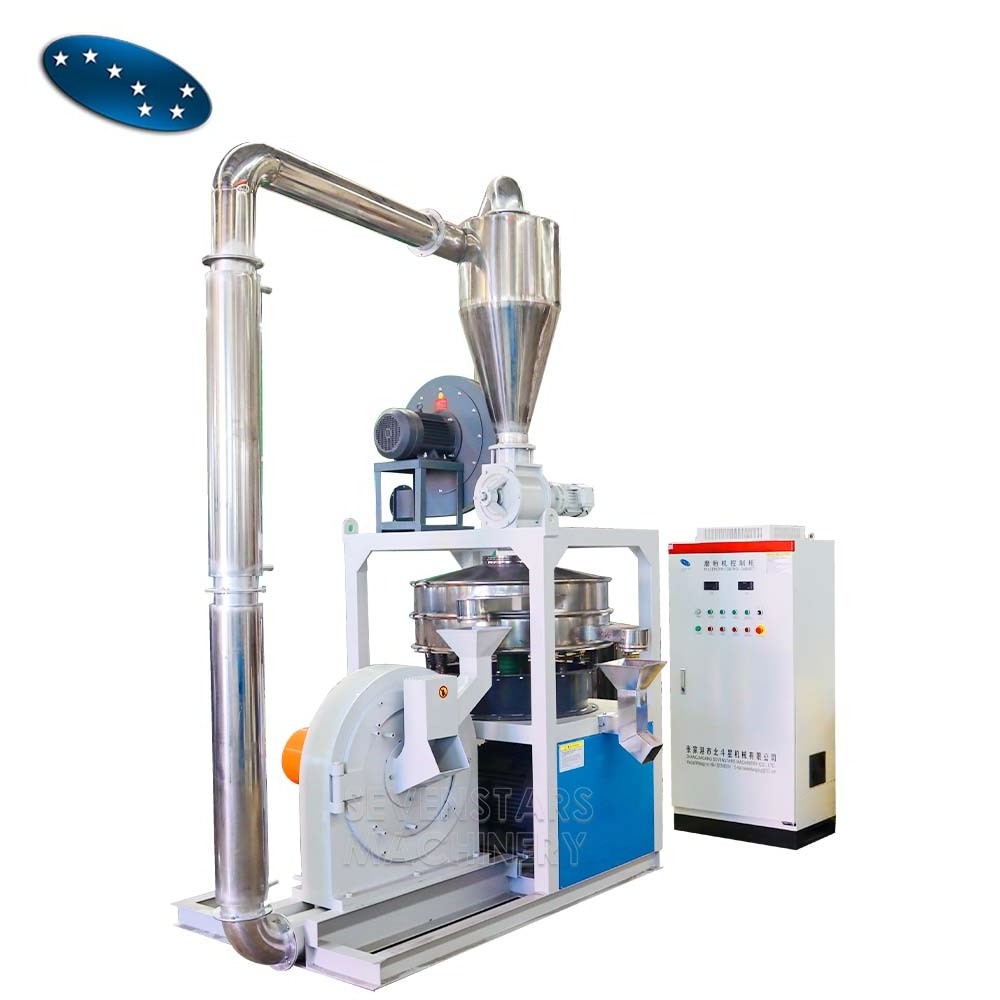

3.Whole Look
Company show
Zhangiagang sevenstars
is located in Zhangjagang city, China. a beautiful and famous city for all kinds of platic machine.
We have 17000 square meters land and new modern workshop
, we mainly development, design, manufacture and marketing plastic granulation machine, plastic recycling machine, pet bottle recycling machine, PVC pipe making machine, PE pipe making machine, PVC foam board production line, plastic granulator, plastic shredder, plastic pulverizer, Plastic agglomerator, single shaft shredder, double shaft shredder, plastic crusher and so on. By the several years developing, we grown up to a middle scale company in China plastic industry. As one of the reliable supplier in China, We have keeping improved our management and technology level. Up to now, we have earned good reputation in domestic and abroad market. And our products have been exported to many countries, like mexico, America, Argentina, Chile, Brazil, Russia and so on.
Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe.
We always focus on improving our qualiy. And we have buit up a professional after-sale services team with rich-experienced in machine commissioning and installation. We believe our quality and service will bring success to each customer. Welcome final users and distributors from all the world contact with us and create success With your support and our effort, we deeply believe that the tomorrow of sevenstar will be much better.
