Quick Details
-
Input:
-
4 channel
-
Resolution:
-
Max 4ch 1920*1080@60 or 2ch 4K30
-
Output:
-
Network
-
Video Code:
-
H.265, H.264
-
Audio Code:
-
AAC, MP3
-
Protocol:
-
SRT, RTMP, RTMPS, RTSP, RTP, UDP, HTTP
-
Power supply:
-
DC12V 1A
-
Certification:
-
CE FCC
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
ISEEVY
-
Model Number:
-
ISV-4HE5
-
Input:
-
4 channel
-
Resolution:
-
Max 4ch 1920*1080@60 or 2ch 4K30
-
Output:
-
Network
-
Video Code:
-
H.265, H.264
-
Audio Code:
-
AAC, MP3
-
Protocol:
-
SRT, RTMP, RTMPS, RTSP, RTP, UDP, HTTP
-
Power supply:
-
DC12V 1A
-
Certification:
-
CE FCC
Overview

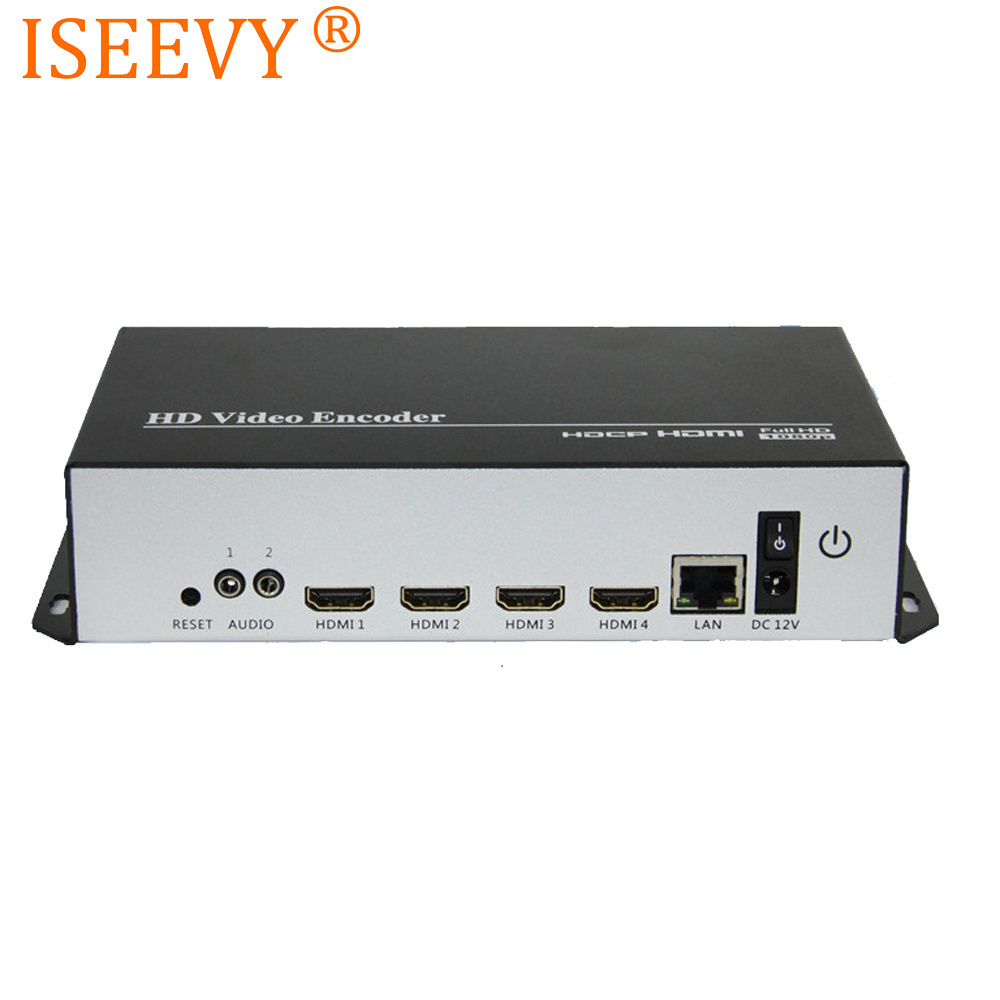

ISEEVY 4 channel H.265 H.264 HDMI-compatible Video Encoder is a professional HD audio & video encoding device with powerful functionality. It supports 4 channel HDMI signal (max 1920*1080P) input, then generates H.265 H.264 high/main/baseline profiles video network streams with SRT/RTMP/RTMPS/RTSP/UDP/HTTP/FLV/HLS/Multicast/Unicast protocols and AAC/MP3 audio format.
Its high integration and cost-effective design make this device widely applied in IPTV, live stream, broadcast, video conference, remote education, network video record etc.
System Connections
Have been compatible with most of streaming platforms, you can choose any of the popular streaming platforms to go live at any time you like ,such as
Facebook Live, YouTube Live,Twitch, Ustream and Livestream or even build your own using WOWZA Streaming Server
.
The encoder can support 4 streams, you can push multi-platforms in the meantime.
Features
support 4 channel 1080P@60fps or 2ch 4K30 HDMI Video
H.265/H.264 high/main/baseline profile video code and AAC/MP3 audio code
SRT/RTMP/RTMPS/RTSP/UDP/RTP/HTTP/FLV/HLS/TS/Multicast/Unicast Protocols
Support 4 streams can transmit with different protocols
Support text and image OSD management
Specifications
| Video | Video Input | 4 channel HDMI input, support HDCP |
| Input Resolution |
3840x2160/1920*1080/1280*720/1600*1200/1400*1050/1440*900/
1280*1024/1280*960/1280*800/1024*768/800*600 |
|
| Video Code | H.265, H.264 High/Main/Baseline Profile | |
| Code Resolution |
3840x2160/
1920*1080/1280*720/1024*576/960*540/850*480/
720*576/720*540/720*480/720*404/704*576/640*480/640*360 |
|
| Code Rate | CBR/VBR 16Kbps~12Mbps | |
| Rrame Rate | 60fps | |
| GOP Type | IBBP | |
| Advanced | De-interlacing, Noise Reduction, Sharpening | |
| Audio | Audio Input | Built-in audio*1 |
| Audio Code | AAC, MP3 | |
| Sampling Rate | 32K/48K/64K/96K/128K/160K/192K/256K | |
| Sampling Accuracy | 24 bit | |
| Bit Rate | 64Kbps~384Kbps | |
| System | RJ45 | 100M/1000M Ethernet interface |
| Protocol | SRT, RTMP,RTMPS,RTSP,UDP,HTTP,RTP,HLS,FLV,TS | |
| Configuration | WEB operation | |
| Upgrading | Can be upgraded by Internet | |
| Others | Power | DC 12V |
| Consumption | 5W | |
| Temperature | 0~45℃(work),-20~80℃(storage) | |
| Humidty | <90%,non-condensing | |
| Size | 106mm*189mm*44mm | |
| Weight | 0.5kg |
