Quick Details
-
Brand Name:
-
DEMO
-
Model Number:
-
60
-
Input Voltage:
-
3V
-
Current:
-
20mA
-
Ra:
-
>80
-
Length:
-
60mm
-
MOQ:
-
10000
-
PAYMENT:
-
PayPal T/T
Quick Details
-
Color Temperature(CCT):
-
can be customized
-
Input Voltage(V):
-
3V
-
Place of Origin:
-
Jiangsu
-
Brand Name:
-
DEMO
-
Model Number:
-
60
-
Input Voltage:
-
3V
-
Current:
-
20mA
-
Ra:
-
>80
-
Length:
-
60mm
-
MOQ:
-
10000
-
PAYMENT:
-
PayPal T/T
Product Description

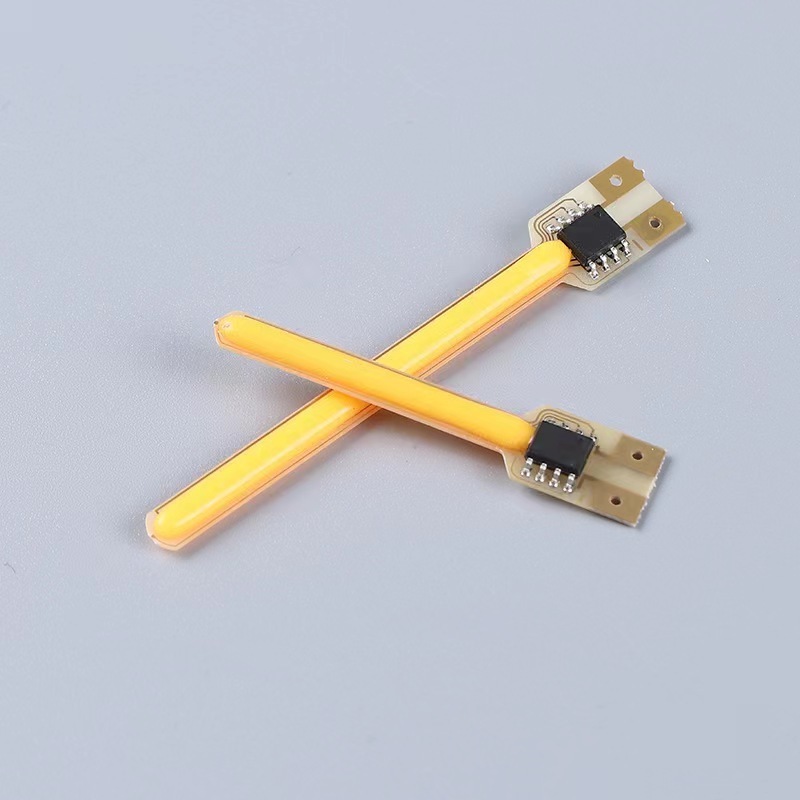

Wholesale 3V 20mA 60mm Fire Flame Filament LED Chip For Light Bulb
Custom Design! Patent Technology! High Reliability!
Specification
|
item
|
value
|
|
Place of Origin
|
Jiangsu
|
|
Brand Name
|
DEMO
|
|
Model Number
|
DM-60
|
|
Application
|
light bulb
|
|
Color Temperature(CCT)
|
can be customized
|
|
Lamp Body Material
|
Ceramic
|
|
Input Voltage(V)
|
3V
|
|
Color Rendering Index(Ra)
|
80
|
|
Input Voltage
|
3V
|
|
Current
|
20mA
|
|
Ra
|
>80
|
|
Length
|
60mm
|
|
MOQ
|
10000
|
|
PAYMENT
|
PayPal T/T
|
Advantage
2. Low Power Consumption: This LED chip operates at a low voltage of 3V and consumes only 20mA of current, making it energy-efficient and cost-effective, resulting in reduced electricity bills.
3. Long Lifespan: With high-quality construction, this LED chip offers a long lifespan, ensuring extended and reliable use without frequent replacements.
4. Safe and Reliable: Unlike real flames, this LED chip is safe and does not pose a fire hazard. It's an excellent choice for applications where safety is paramount.
5. Versatile Design: The 60mm size and versatility of this chip make it suitable for use in various light bulb designs, giving you the flexibility to incorporate the flame effect into different lighting fixtures.
6. Wholesale Availability: Buying this product in bulk offers cost savings for manufacturers, retailers, or businesses looking to incorporate this feature into their product lines or lighting designs.
1)Customized View angles are acceptable! 10deg, 15deg, 30deg, 45deg, 60deg, 90deg, 120deg, 160deg, etc. for options!
2)Customized LED shapes for options, round head shape, bullet head shape, flat head shape, rectangle shape, oval shape, concave shape, straw-hat shape, etc.
3)Various LED size for options, 2mm/3mm/4mm/5mm/8mm/10mm
Notice for LED Handling
1)All personnel in direct contact with the LEDs throughout the process of use shall perform anti ESD measures. Do not touch the LEDs directly with hands
2) When welding, the operator needs to pay attention to the welding time, welding temperature, and the positive and negative poles of LEDs should be clearly distinguished.
3) Electrical parameters such as current and voltage should not exceed the rated value.
Precautions for LED Soldering
1)The welding time should not exceed 3 seconds
2)The welding temperature is less than 260 ℃
3)Reflow welding is allowed only once
4)When welding, distinguish the positive and negative poles and avoid the lens to avoid damaging the lens.
5)When welding, distinguish the positive and negative poles of LEDs, take care to avoid touching the LED lens from lens-damaging.
6)Especially for IR LEDs and UV LEDs, try to take cooling measures as good as possible to provide adequate heat dissipation area.
7)For longer life of IR LEDs and UV LEDs, it is recommended to use a more stable constant current driver instead of a constant voltage driver.
