Quick Details
-
Voltage:
-
100--380V, 110--380V available to choose
-
Power:
-
2.2KW
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
22800*1030*1600mm
-
Year:
-
2023
-
Product Name:
-
cherry remover core machine/fruit destoner
-
Material:
-
Stainless Steel
-
Working Principle:
-
Classifier
-
Production capacity:
-
1--2T/H
-
Matched Power:
-
2.2KW
-
Usage:
-
Industrial usage
-
Suitable:
-
all kinds of fruit and vegetable
-
Certification:
-
ISO CE
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Kewei
-
Type:
-
Stoning Machine
-
Voltage:
-
100--380V, 110--380V available to choose
-
Power:
-
2.2KW
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
22800*1030*1600mm
-
Year:
-
2023
-
Product Name:
-
cherry remover core machine/fruit destoner
-
Material:
-
Stainless Steel
-
Working Principle:
-
Classifier
-
Production capacity:
-
1--2T/H
-
Matched Power:
-
2.2KW
-
Usage:
-
Industrial usage
-
Suitable:
-
all kinds of fruit and vegetable
-
Certification:
-
ISO CE

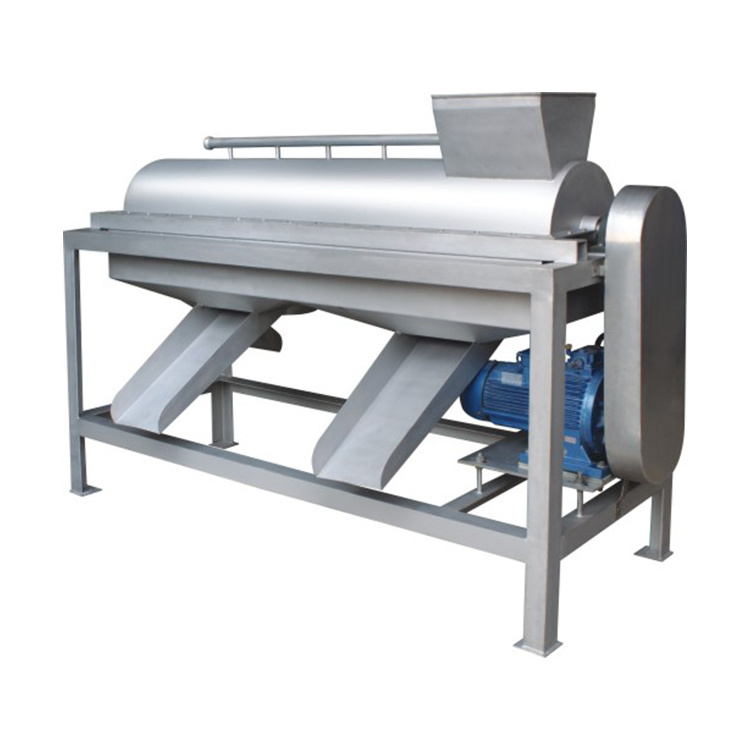

The equipment is mainly used for separating core and pulp of drupe fruits, such as olive, greengage, plum, apricot and peach etc. Through the separating boards of different angles on the rotor, the block pulp of fruits will be achieved, and it will drop into the material discharging hopper from the sieve mesh. The stone will be discharged towards the stone exit through the spiral formed by numerous separating boards. The clearance between the sieve and separating board shall depend on the size of stone.
|
SPECIFICATION
|
|
|
|
|||
|
Model
|
Production capacity(T/H)
|
Matched power(Kw)
|
Outline dimensions(mm)
|
|||
|
LQJ-2
|
1-2
|
2.2
|
2280*1030*1600
|
|||
|
LQJ-5
|
2-5
|
4
|
2600*1030*1750
|
|||
The main working principle
This machine by the transmission speed reducer and bearing seat, frame, into the hopper, drive roller, separating plate, a hopper, a bucket and other parts.Working principle: the material from the feed hopper to go nuclear studio, due to nuclear indoor roller has a different point of view of separation plate, make the fruit pulp, separating from the stone of the fruit.Isolated from pulp screen hole into the hopper, the core is composed of a number of separate plate screw, to the nucleus in moving by the bucket discharge, screen mesh and the clearance between the separating plate can be try to deal with material on the size of the nucleus.
