- Product Details
- {{item.text}}
Quick Details
-
Rated Input Voltage:
-
220 V
-
Rated Output Voltage (MIG):
-
220 V
-
Wire Feeding Speed:
-
30 m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BAOHUA
-
Dimensions:
-
870*460*1650mm
-
Usage:
-
Welding
-
Weight (KG):
-
100 KG
-
Warranty:
-
3 Years
-
After-sales Service Provided:
-
Overseas service center available
-
Demension:
-
87*46*165Cm
-
Power:
-
21KVA
-
Voltage:
-
220V or 380V 50/60Hz, AC 200-240V/380-440V 50/60Hz
-
color:
-
gray
-
Certification:
-
ISO9001:2000
Quick Details
-
Wire Melting Type:
-
Globular Transfer
-
Max. Load Power Capacity:
-
24.4KVA
-
Rated Duty Cycle @40°C (MIG):
-
40%
-
Rated Input Voltage:
-
220 V
-
Rated Output Voltage (MIG):
-
220 V
-
Wire Feeding Speed:
-
30 m/min
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BAOHUA
-
Dimensions:
-
870*460*1650mm
-
Usage:
-
Welding
-
Weight (KG):
-
100 KG
-
Warranty:
-
3 Years
-
After-sales Service Provided:
-
Overseas service center available
-
Demension:
-
87*46*165Cm
-
Power:
-
21KVA
-
Voltage:
-
220V or 380V 50/60Hz, AC 200-240V/380-440V 50/60Hz
-
color:
-
gray
-
Certification:
-
ISO9001:2000

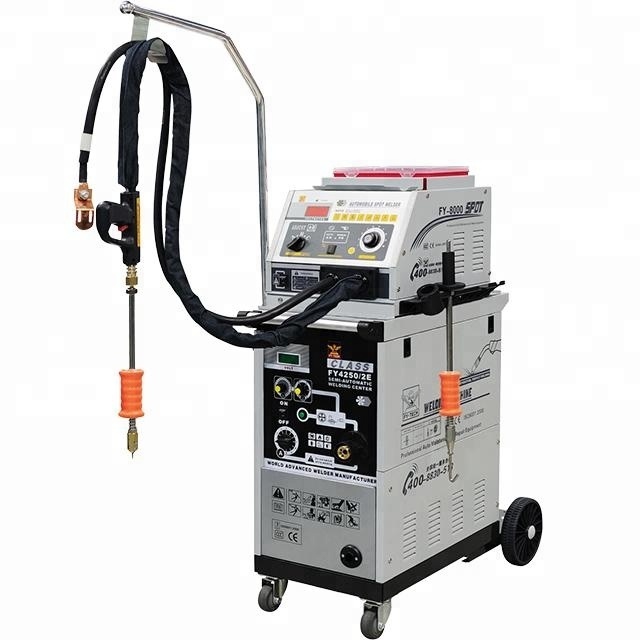

Multifunctional resistance spot welder and MIG welder
Description:
FY-8000-250 is a multi tasking welder which combines a variety of functions into one unit. The system caters to all your welding needs such as spot welding, MIG welding, dent pulling, sheet metal welding, carbon heating and shrinking and triangle washer welding. Despite its size and many functions it is still simple to operate and easy to manoeuver. Your work can be done quickly and easily with one of the best tools in the auto collision repair industry.
Features:
All in one design for high quality spot welding and MIG welding in one unit
Suitable for dent pulling of different kinds of car steels such as conventional steel and stainless steel
A welding gun test function to evaluate the usage status of the welder
A variety of welding procedures are available such as shrinking, washer, direct-pulling, spot welding, flattening, waveform wire, stud welding, OT washer and triangle washer
Complete with pneumatic vacuum cupule
Complete with rotatable gun cable support arm
Complete with heated gas regulator
MIG welder with welding current 250A, spot welder with maximum welding current 5400A and input voltage 380V
Complete with VPOWER wire feeder
Taiwan TIANWEI switch
With the world famous EMIR brand welding gun
Separated wire feeder and welding gun with extendable cable is available as an option
Specifications:
|
Input voltage:
Input power:
Input current:
Max welding current: One-side welding thickness: Cable length:
Input voltage:
Rated maximum supply current:
Maximum effective supply current:
Output current /voltage:
No-load voltage:
Welding current range:
Weldable wire:
Dimensions:
Weight:
|
AC 200-240V or 380-440V 50/60Hz
21KVA
55A 5400A 0.8+1.2mm 2300+1900mm
AC220V or 380V
16.8A
12.5A
35A/17V - 250A/26.5V
20-37V
35-250A
Low carbon steel solid wire φ0.8-1.0mm
870 x 460 x 1650mm
138kg
|
