Die-casting aluminum base, excellent heat dissipation.
PC housing, high impact resistance.
304Stainless steel hexagon socket head cap screws.
Electrostatic powder coating and thermostatic hardening.
Black/White/Gray paint available.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Housing color:
-
black,white,grey color
-
Product Size:
-
275*275*85mm
-
IK rating:
-
IK10
-
material:
-
Die-casting aluminum, milky PC cover
-
Power:
-
12W 15W 18W 20W 25W
-
PF:
-
>0.95
Quick Details
-
Place of Origin:
-
China
-
Product name:
-
led bulkhead light,outdoor led bulkhead lights
-
Function:
-
can add motion sensor/Emergency/Dimmable
-
Housing color:
-
black,white,grey color
-
Product Size:
-
275*275*85mm
-
IK rating:
-
IK10
-
material:
-
Die-casting aluminum, milky PC cover
-
Power:
-
12W 15W 18W 20W 25W
-
PF:
-
>0.95
Specification
|

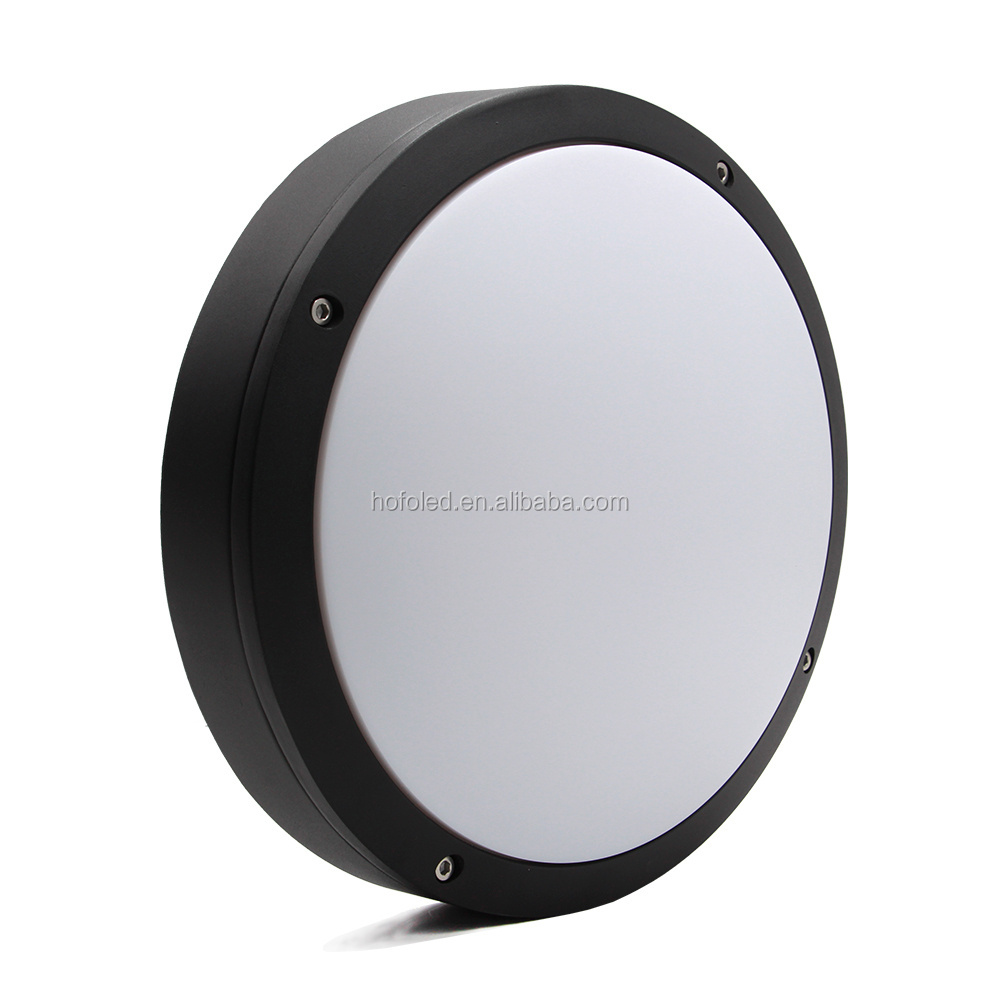

IP65 LED Bulkhead Light
|
|
|
|
Model
|
HF-CL20R275
|
|
|
Power
|
20W
|
|
|
LED resource
|
SMD 2835
|
|
|
Luminous
|
2000Lm 100Lm/w
|
|
|
Color temperature
|
3000K,4000K,6000K
|
|
|
Dimensions
|
Ø275 x 85 mm
|
|
|
IP rating
|
IP65(waterproof)
|
|
|
Certification
|
CE RoHS SAA IP65 IK10
|
|
Product Description
Lamp Material
Chip and Driver
LED Chip and Driver
We use high lumens Epistar Chip,other chip also OK.
Lumen:100LM/W CRI> 80
High quality driver, like Boke, Lifud, Tridonic, CE RoHS approval
Power factor> 0.95, no flicker, IP66UGR < 19
Temperature test is 47-49 degree
Cable (GLOW WIRE): VDE, IEC approval
Advantages
Save more than 80% energy.
IP65 Waterproof, moisture proof, rust proof.
Super bright light soft and uniform.
Attractive appearance and corrosion-resistant.
Rubber seal ring for prevention of dust and water splashing.
Experienced technical staff.
Strong products capability.
High quality and reasonable price.
CE/RoHS/SAA IP65 approval.
|
Model
|
HF-CL20R275
|
HF-CL20R300
|
HF-CL20S300
|
|
Power
|
15W/20W
|
20W/30W/40W
|
20W/30W/40W
|
|
Size
|
275*275*85mm
|
300*300*85mm
|
300*300*90mm
|
|
Color housing
|
Black / white / grey
|
Black / white / grey
|
Black / white / grey
|
Applications
Customer case: Most of project, use in Corridor, Kitchen, Toilet, Corridor, School, Building, Bedroom,
Spa room, Hotel,Hospital, Meeting room, Showcase, Warehouse, Office, Supermarket, Department store.
UK Hilton Hotel Project 2017
Project Location: EnglandCompletion Date: Jan, 2017
Number of lamps: 2000PCS
Project Location: EnglandCompletion Date: Jan, 2017
Number of lamps: 2000PCS
New Zealand Apartment 2018
Project Location: AucklandCompletion Date: Dec, 2017
Number of lamps: 3500PCS
Project Location: AucklandCompletion Date: Dec, 2017
Number of lamps: 3500PCS
UAE Dubai Nad Mall Project 2019
Project Location: DubaiCompletion Date: July, 2019
Number of lamps: 5000PCS
Project Location: DubaiCompletion Date: July, 2019
Number of lamps: 5000PCS
Factory production
