Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JL
-
Voltage:
-
AC 240VAC,50/60 Hz(single phase)
-
Dimension(L*W*H):
-
990(L)X900(W)X1330(H)mm
-
Weight:
-
120 kg
-
Core Components:
-
Neitian, Rilu
-
PLC Brand:
-
Rilu, Neitian
-
Product name:
-
Paper Number Counting Machine
-
Application:
-
Industrial, School, Home
-
After Warranty Service:
-
3 Year Warrnty
-
Machine type:
-
Automatic Paper Counting Machine
-
Working Speed:
-
2000 sheets / min
-
Paper thickness:
-
25g/m2-210g/m2
-
Function:
-
Single sheet mode/Volume mode
-
Advantage:
-
High Efficiency Automatic Working
-
Power:
-
AC 240VAC,50/60 Hz(single phase) (Special voltage can be customized)
-
Usage:
-
Counting
Quick Details
-
Type:
-
Other
-
Production Capacity:
-
2000sheets/min
-
Max. workable width:
-
546(length)X788(W)mm,
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JL
-
Voltage:
-
AC 240VAC,50/60 Hz(single phase)
-
Dimension(L*W*H):
-
990(L)X900(W)X1330(H)mm
-
Weight:
-
120 kg
-
Core Components:
-
Neitian, Rilu
-
PLC Brand:
-
Rilu, Neitian
-
Product name:
-
Paper Number Counting Machine
-
Application:
-
Industrial, School, Home
-
After Warranty Service:
-
3 Year Warrnty
-
Machine type:
-
Automatic Paper Counting Machine
-
Working Speed:
-
2000 sheets / min
-
Paper thickness:
-
25g/m2-210g/m2
-
Function:
-
Single sheet mode/Volume mode
-
Advantage:
-
High Efficiency Automatic Working
-
Power:
-
AC 240VAC,50/60 Hz(single phase) (Special voltage can be customized)
-
Usage:
-
Counting

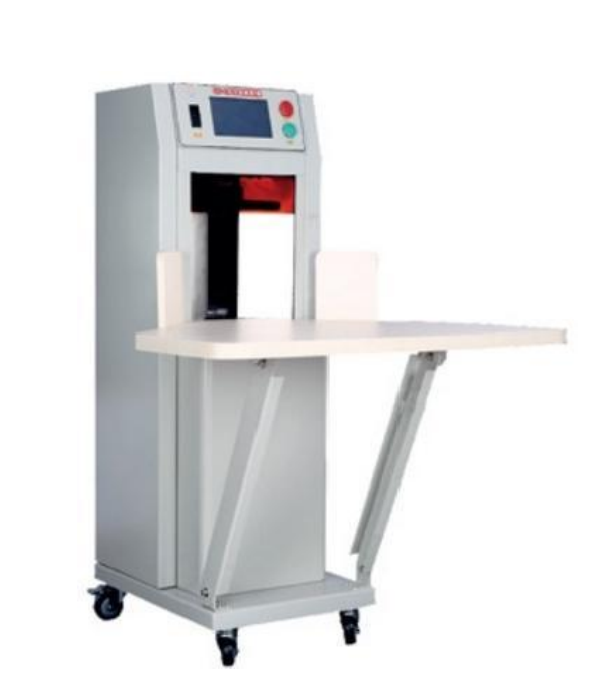

GY-1 paper counting machine is a full - automatic paper counting machine composed of microcomputer controller and mechanical linkage mechanism. Its main functions and features are as follows:
FUNCTION
There are four operation modes: counting paper mode, equal quantity mode, programming mode and comparison mode. These four modes can be converted arbitrarily.
|
Counting and counting paper mode |
this mode is a simple counting function. If this mode is selected, the machine will not insert the sub volume function. |
|
Programming mode |
this mode is the function of unequal volumes, that is, the number of inserted and signed volumes of each volume is not equal. This cycle can be set (2-9 times) by setting a group (the number of volumes of 500 volumes can be set in each group). |
|
Equal quantity mode |
the quantity of each volume, the number of inserted labels and the total number of papers can be set arbitrarily on the touch screen and can be modified. The machine also has the functions of setting the initial parameters of the machine, such as label tape length, pressboard operation mode, data storage, high-speed and low-speed selection, etc. |
|
Comparison mode |
this function is used to check whether the quantity is correct. For example, if the input quantity is 100 sheets, the machine will automatically alarm if there are less than 100 sheets after counting |
