Quick Details
-
Brand Name:
-
HUAJIN
-
Model Number:
-
HUAJIN
-
Delivery Time:
-
within 15 days
-
Material:
-
NdFeB Magnet
-
MOQ:
-
100 pcs
-
Sample:
-
Avaliable
-
Color:
-
Bright Silver
-
Packing:
-
Magnetic isolation box
-
Usage:
-
Industrial Usage
-
Coating:
-
Zinc
-
Working Temperature:
-
80 Degrees
-
Certification:
-
RoHs ISO9001
Quick Details
-
Tolerance:
-
±5%
-
Grade:
-
Neodymium Magnet, N35-N52
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HUAJIN
-
Model Number:
-
HUAJIN
-
Delivery Time:
-
within 15 days
-
Material:
-
NdFeB Magnet
-
MOQ:
-
100 pcs
-
Sample:
-
Avaliable
-
Color:
-
Bright Silver
-
Packing:
-
Magnetic isolation box
-
Usage:
-
Industrial Usage
-
Coating:
-
Zinc
-
Working Temperature:
-
80 Degrees
-
Certification:
-
RoHs ISO9001
Products Description

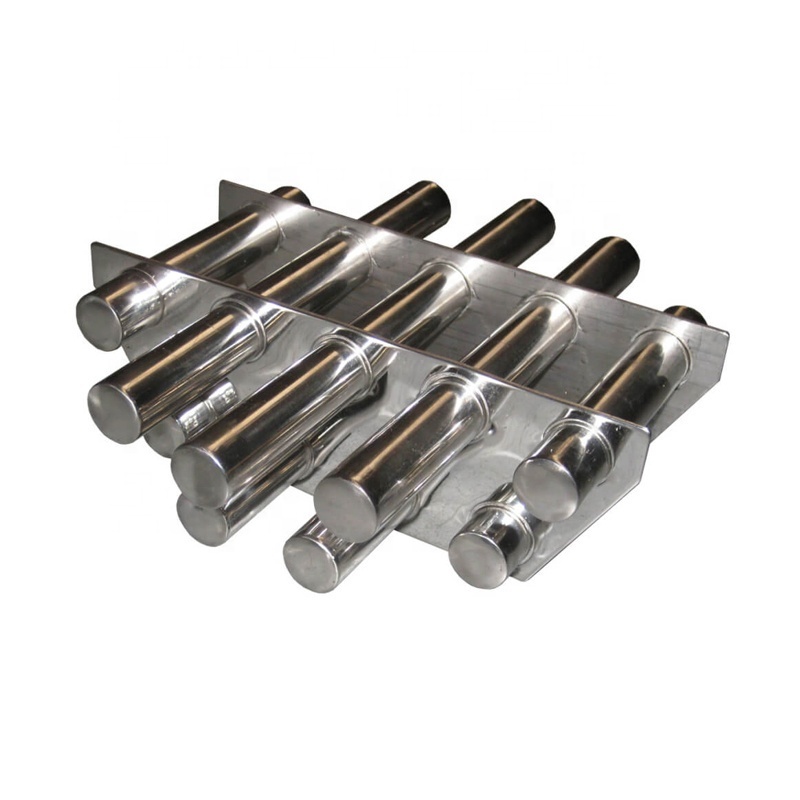

Strong Magnetic Filter Easy Cleaning Grate Magnet Of Neodymium
Description:
1.Frame and tube material is 304 or 316L stainless steel,good corrosion resistance and no pollution .
2.Standard magnetic grates are assembled with stainless steel frame and 25mm diameter round bars.
3.The frame and magnetic bar surface can be fine polished and full welded to meet food grade or pharmacy application.
4.Standard working temperature<=80°C, if needed , max . working temperature from 80°Cto 350°C is also available.
5.Normal item(N style),Easy-cleaning(E style), grate with angle baffles or rod are available.
The magnetic bar is also as important inspection tools for the purpose of material quality assurance.
1.Frame and tube material is 304 or 316L stainless steel,good corrosion resistance and no pollution .
2.Standard magnetic grates are assembled with stainless steel frame and 25mm diameter round bars.
3.The frame and magnetic bar surface can be fine polished and full welded to meet food grade or pharmacy application.
4.Standard working temperature<=80°C, if needed , max . working temperature from 80°Cto 350°C is also available.
5.Normal item(N style),Easy-cleaning(E style), grate with angle baffles or rod are available.
The magnetic bar is also as important inspection tools for the purpose of material quality assurance.
|
Model
|
D (total)
|
H
|
D (bar)
|
No. of rods
|
Gauss
|
|
1
|
127 mm
|
80 mm
|
20/22/25 mm
|
5 rods
|
6000-14000 Gs
|
|
2
|
160 mm
|
80 mm
|
20/22/25 mm
|
7 rods
|
6000-14000 Gs
|
|
3
|
219 mm
|
80 mm
|
20/22/25 mm
|
9 rods
|
6000-14000 Gs
|
|
Model
|
L
|
W
|
H
|
D (bar)
|
No. of rods
|
Gauss
|
|
1
|
200 mm
|
200 mm
|
40 mm
|
20/22/25 mm
|
4 rods
|
6000-14000 Gs
|
|
2
|
300 mm
|
300 mm
|
40 mm
|
20/22/25 mm
|
6 rods
|
6000-14000 Gs
|
|
3
|
400 mm
|
400 mm
|
40 mm
|
20/22/25 mm
|
8 rods
|
6000-14000 Gs
|
Product Details
Characteristics:
1) Outside material: stainless steel pipe
2) Inside material: NdFeB magnets (or ferrite) and iron spacers
3) Diameter: 20 - 50mm, normal: 25mm
4) Price unit: per set or per meter
5) Highest surface flux:10000-12000gauss
6)Inspection procedure: appearance, linearity, surface gauss for magnetic bars.
Service:
1. We will offer the suitable iron separator project according your material and working environment for your reference.
2. We can do the test to confirm the iron separation effect for free.
Technical Parameters:
Note: 1. Special sizes available upon request.
2. Dimensions and specifications are subject to change without notice.
