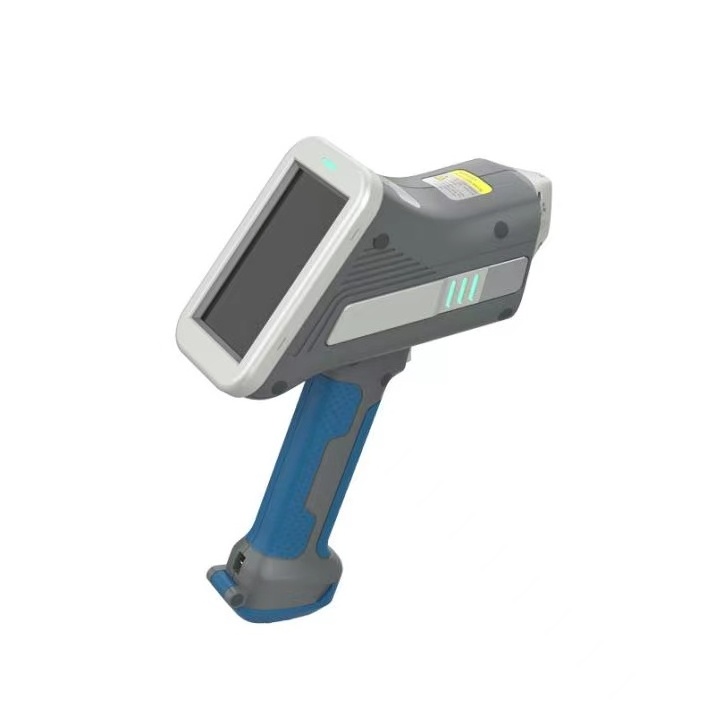

OTS portable xrf handheld metal gold tester analyzer

The detector

High-performance SIPIN detection kit

Excitation source

50KV/200uA- Silver target/tungsten target end window integrated micro X-ray tube and high pressure source

Element detection range

Elements with atomic numbers from 20 to 92 [calcium (Ca) to uranium (U)] can be measured

Detection object

Solid

Analysis method

Intelligent Direct Reading Optimization Analysis method + Basic Parameter Method (FP)

Software

Remote control system, based on PC/Windows system based on android mobile terminal can be through the software operating
instrument, data across multiple platforms (instrument, PC, mobile phone, the cloud), software is data analysis, spectrogram
display, report printing, etc, the instrument and the client has the function of email analysis report;

Weight

≤ 1.75kg (including battery)

Size

254mm(L)X91mm(W)X319mm(H)

Microcomputer display system

1. Semi-transparent and semi-anti-industrial customized touch screen ≥5 inches, standard configuration :4G, built-in expanded
storage support 32G, can store massive data.
2, resolution 1080*720

The power supply

1, rechargeable lithium battery, standard 6800mAh, voltage: 7.2V; Sustainable work up to 12 hours;
2, the instrument has hot swap function, delay power, replace the battery is no need to shut down, the battery comes with the
power display;

Charging mode

1. Charging interface on the side of the fuselage;
2. The battery can be charged by vehicle; (Non-standard)
3, universal adapter charge current power supply;

Collimator, filter

1, special radiation protection material collimating device, inner diameter 3MM
2, no filter, save switching time, software to deduct background interference

Front-end test window

≤9mm*5mm "waist" window

Camera

With built-in 5 million pixel high-definition camera function, can be measured to take photos, easy management

Test report sending mode

E-mail sending, Bluetooth synchronous transmission, software synchronous transmission

The data transfer

Digital multichannel technology, SPI data transmission, fast analysis, high count rate; Waterproof mini USB, and can be connected
to an external desktop.

Maintenance method

Remote software upgrade and diagnosis, on-site maintenance, diagnosis

User management

Multi-level user management function (can create multiple accounts, so that the corresponding person number, convenient management
and data traceability)

Protection cover

The instrument is equipped with a protective cover, with instrument calibration, radiation prevention, damage prevention functions
(non-standard)

Operating environment temperature,humidity

- 20 ℃ to + 60 ℃
Humidity of 90% or less
