Quick Details
-
Dimension(L*W*H):
-
32*30*31cm
-
Weight (T):
-
0.12 T
-
Power (kW):
-
5-8
-
Product Name:
-
Mini MF Induction Melting Furnace
-
Melting Capacity:
-
1-6KG gold
-
Net Weight:
-
7.5KG-15kg
-
Max temperature:
-
1350- 1600℃
-
Melting Time:
-
5-6mins for 1KG Gold(granular)
-
Suitable Metal:
-
Gold, Silver, Brass, Karat Gold, Steel, Aluminum, etc
-
Application:
-
Smelting, Refining, Recycling
-
Heating element:
-
Induction Copper Coil
-
Operating time:
-
Continuously 24 hours
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YALI
-
Voltage:
-
190/230V, 190V/235V
-
Dimension(L*W*H):
-
32*30*31cm
-
Weight (T):
-
0.12 T
-
Power (kW):
-
5-8
-
Product Name:
-
Mini MF Induction Melting Furnace
-
Melting Capacity:
-
1-6KG gold
-
Net Weight:
-
7.5KG-15kg
-
Max temperature:
-
1350- 1600℃
-
Melting Time:
-
5-6mins for 1KG Gold(granular)
-
Suitable Metal:
-
Gold, Silver, Brass, Karat Gold, Steel, Aluminum, etc
-
Application:
-
Smelting, Refining, Recycling
-
Heating element:
-
Induction Copper Coil
-
Operating time:
-
Continuously 24 hours
Product Description

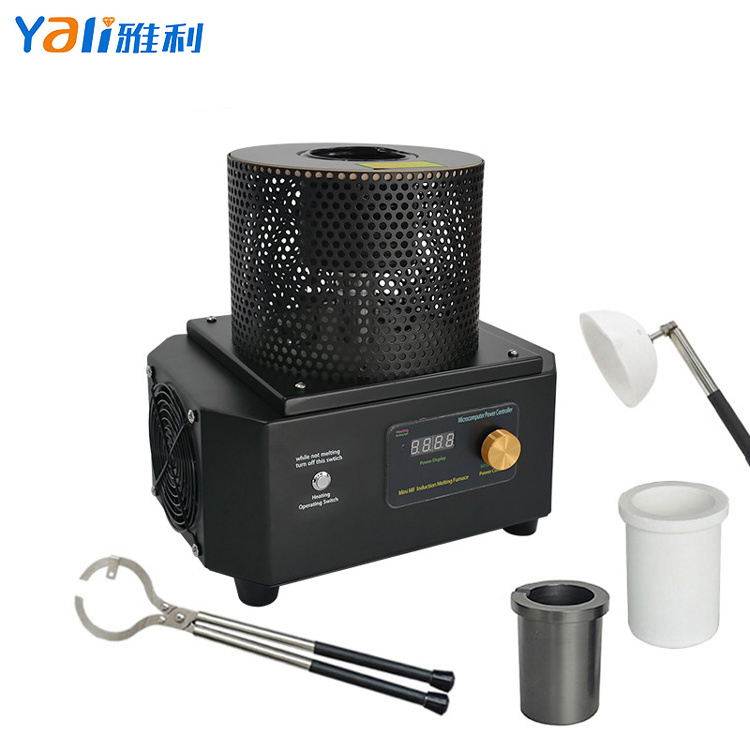

1-6KG Gold Capacity Induction Silver Copper Aluminum Melting Furnace Small Melting Machine For Smelting Gold
Hand-held Induction Melting Furnace
Features:
The machine adopts
medium frequency induction heating
,
DSP digital control circuits
, the actual heating temperature
can reach 1300-1600 ℃
Used for refining precious metals (gold, silver, copper, aluminum etc.).Using the patented magnetic heat technology driving technology, the operation is simple, the melting speed is fast,low energy consumption, the machine volume is small, the outside part is low heat storage.It is a
new high performance portable gold melting furnace.
Hand-held Induction Melting Furnace
Features:
The machine adopts medium frequency induction heating , DSP digital control circuits , the actual heating temperature can reach 1300-1600 ℃
Used for refining precious metals (gold, silver, copper, aluminum etc.).Using the patented magnetic heat technology driving technology, the operation is simple, the melting speed is fast,low energy consumption, the machine volume is small, the outside part is low heat storage.It is a new high performance portable gold melting furnace.
Features:
The machine adopts medium frequency induction heating , DSP digital control circuits , the actual heating temperature can reach 1300-1600 ℃
Used for refining precious metals (gold, silver, copper, aluminum etc.).Using the patented magnetic heat technology driving technology, the operation is simple, the melting speed is fast,low energy consumption, the machine volume is small, the outside part is low heat storage.It is a new high performance portable gold melting furnace.
|
Mini Induction Melting Furnace Technical Parameters
|
|
|
|
|||
|
Voltage
|
200v - 235v
|
|
|
|||
|
Working Frequency
|
50hz - 60hz
|
|
|
|||
|
Power input:
|
1KG 3500W， 2KG/3KG 5000W, 4KG 6000-8000W, 5/6KG 8000W
Support 100%full load |
|
|
|||
|
System protection:
|
Double
IGBT Over heat protection
,Lack water protection.
Non - pot circuit detection function. Automatic many kinds of internal fault detection procedures, such as driving frequency error automatic alarm protection , such as a variety of protection circuits. |
|
|
|||
|
Water Cooling system:
|
External water cooler, or direct tap water, only
a minute 1L
of water flow can be used normally.
|
|
|
|||
|
Melting Temp:
|
The actual temperature can be heated up to more than 1350-
1600 ℃
, the temperature can be raised rapidly, the electricity can be saved, the smelting cost is low, the cost performance is high
|
|
|
|||
|
Melting Speed:
|
500 grams of copper. Silver. Gold.
About 6 minutes
.Graphite crucibles are necessary
|
|
|
|||
|
Dimension
|
About (315long * 295wide * 310 high) innovative design,
small size, light weight.
|
|
|
|||
