Ultra thin high quality LED panel SMD2835 bright Panel Flexible Backlight led flexible sheet led light for Marble table
Ultra thin high quality LED panel SMD2835 bright Panel Flexible Backlight led flexible sheet led light for Marble table
Ultra thin high quality LED panel SMD2835 bright Panel Flexible Backlight led flexible sheet led light for Marble table
Ultra thin high quality LED panel SMD2835 bright Panel Flexible Backlight led flexible sheet led light for Marble table
Ultra thin high quality LED panel SMD2835 bright Panel Flexible Backlight led flexible sheet led light for Marble table
Ultra thin high quality LED panel SMD2835 bright Panel Flexible Backlight led flexible sheet led light for Marble table
Ultra thin high quality LED panel SMD2835 bright Panel Flexible Backlight led flexible sheet led light for Marble table
Ultra thin high quality LED panel SMD2835 bright Panel Flexible Backlight led flexible sheet led light for Marble table

Ultra thin high quality LED panel SMD2835 bright Panel Flexible Backlight led flexible sheet led light for Marble table

FOB Reference Price: Get Latest Price
≥5 Pieces
US $24.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty(Year):
3-Year
Color Temperature(CCT):
3000K~6000K
Product Weight（kg）:
0.5
Lamp Luminous Flux(lm):
3500
CRI (Ra>):
80
Working Temperature(℃):
-20 - 45
Working Lifetime(Hour):
30000
Place of Origin:
Guangdong, China
Brand Name:
PERFECT
Model Number:
PSB422C
Product Name:
2835 LED Strip Sheet
LED QTY:
420-led/sheet
Color:
2700K/3000K/4000K/6500K
Power:
35W/sheet
Size:
503.1*235*6.5mm
Package:
5pcs/box
Warranty:
3 years
voltage:
DC 24V
Usage:
Used for Light Box

Quick Details

Lamp Luminous Efficiency(lm/w):
100
Application:
Supermarket
Lamp Body Material:
PCB+LED
Warranty(Year):
3-Year
Color Temperature(CCT):
3000K~6000K
Product Weight（kg）:
0.5
Lamp Luminous Flux(lm):
3500
CRI (Ra>):
80
Working Temperature(℃):
-20 - 45
Working Lifetime(Hour):
30000
Place of Origin:
Guangdong, China
Brand Name:
PERFECT
Model Number:
PSB422C
Product Name:
2835 LED Strip Sheet
LED QTY:
420-led/sheet
Color:
2700K/3000K/4000K/6500K
Power:
35W/sheet
Size:
503.1*235*6.5mm
Package:
5pcs/box
Warranty:
3 years
voltage:
DC 24V
Usage:
Used for Light Box
Ultra thin high quality LED panel SMD2835 bright Panel Flexible Backlight led flexible sheet led light for Marble table

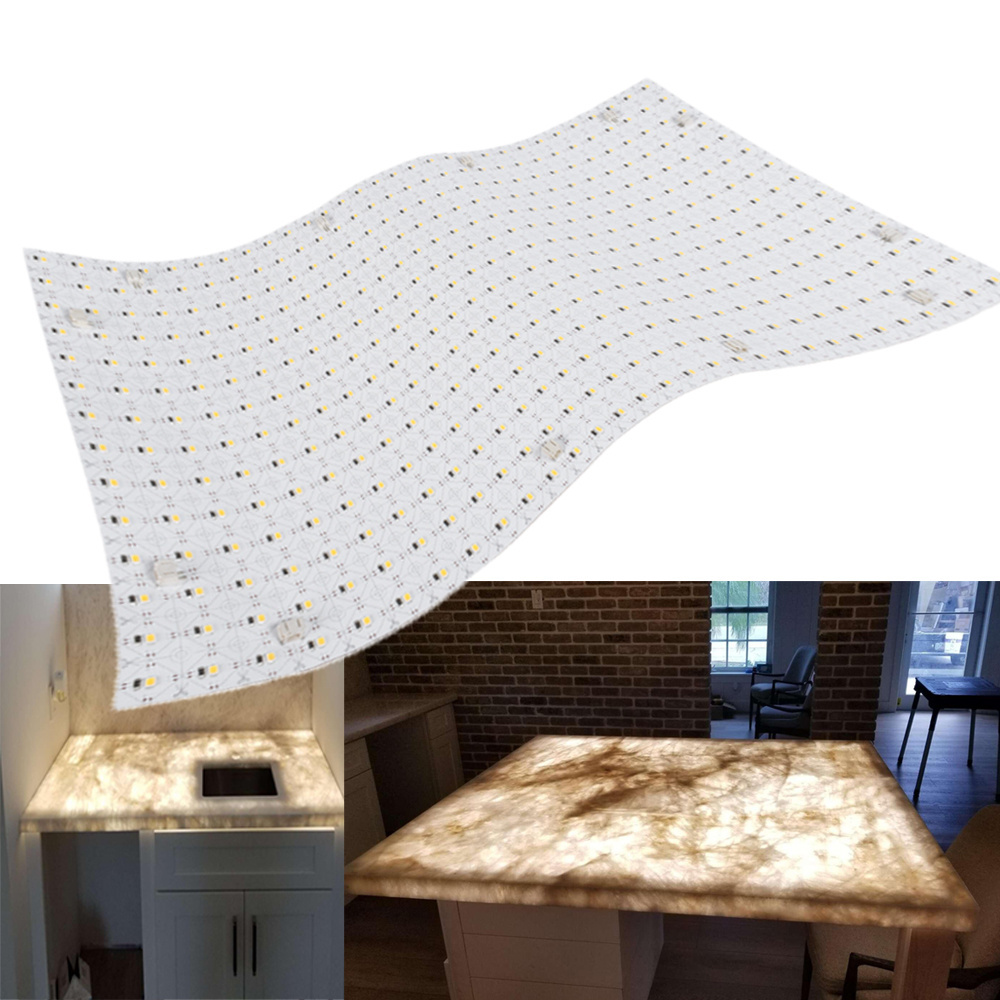

Flexible LED Strip Sheet
Flex LED Sheet is ideally suited for counter and bar tops, curved surfaces, low clearance applications and situations where exact measurements are not known or likely to change. With high density LED, Light Sheets are specifically engineered to be a dimmable, field customizable solution for backlighting translucent materials. Cut LEDs from any part of the sheet to avoid obstacles without interrupting power to the rest of the sheet. Perfect for back lighting advertisements or translucent panels like onyx, stone and resin panels, our Flexible Backlight can be bent and cut into virtually any shape.
Product Details
* Adopt SMD 2835 as light source.
* Keep every batches in one Bin, SDCM<1.
* Widely used in light box, bar, large area
lighting, led panel light. * Can be cut by every 1 led,Any shape are
available. * A led strip can be folded into two sides
lightin g, three sides lighting, and full
coverage lighting.
* DC12V And DC24V Are available. * 2700K/3000K/4000K/6500K,CRI80/90/95.
* 3M 300LSE adhesive tape for easy intallation.
* CE,RoHS,UL, 3 years warranty.
IP
IP20
Luminous flux
3500Lm/sheet
Quantity
420led/sheet
Power(w)
35W/sheet
Product size
503.1*235*6.5mm
Input voltage
DC 24V
Warranty
3 Years
LED type
SMD2835
Working hour
30000h
CRI(Ra)
80
Working temperture
-20℃~+45℃
Input current
1.5A
CCT(K)
2700k/3000k/4000k/6500k
Size of section
16.77*16.77mm(1LED)

Connection diagram:
How to use flexible led sheet?
Clean the wooden board first, measure the length, width and height of the board and calculate how many led sheet light to use.
Attach the led sheet to the wooden board, or fix it with screws. Then use the wires in the accessory bag to connect all the led sheet light. Stick bumper on the lighting board.
Turn on all the light panels and check to see if they are all lit. If it is not lit, please check whether the positive and negative connections are wrong.
Cover the marble slab on top of the led sheet light, you can get a good lighting effective.
Accessories Bag:
