Jerry 20 Ton Automatic Portable Gasoline Engine Wood Processor Cutting Machine Timber Log Splitter Machinery Firewood Processor

Jerry 20 Ton Automatic Portable Gasoline Engine Wood Processor Cutting Machine Timber Log Splitter Machinery Firewood Processor

FOB Reference Price: Get Latest Price

≥1 Sets

US $3900

≥10 Sets

US $3800

≥50 Sets

US $3500

≥100 Sets

US $3200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 2240*1000*2230mm

Weight:: 650 KG

Marketing Type:: New Product 2022

Product name:: Firewood Processor Log Splitter

Application:: Wood Splitting Wounted

Usage:: Wood Shredder Cutting Wood Branch

Power:: Electric/Gasoline/Diesel Motor

Raw material:: Wood Tree

Certification:: CE.EPA

Package:: Wooden Case

Feature:: Portable Split Wood

Quick Details

Use:: Splitting wood

Place of Origin:: Shandong, China

Brand Name:: Jerry-Machinery

Dimension(L*W*H):: 2240*1000*2230mm

Weight:: 650 KG

Marketing Type:: New Product 2022

Product name:: Firewood Processor Log Splitter

Application:: Wood Splitting Wounted

Usage:: Wood Shredder Cutting Wood Branch

Power:: Electric/Gasoline/Diesel Motor

Raw material:: Wood Tree

Certification:: CE.EPA

Package:: Wooden Case

Feature:: Portable Split Wood

Products Description

Max Splitting Force	15T	20T
Cycle Time	7seconds	8seconds
Max Splitting Length	610mm	610mm
Max Splitting Diameter	380mm	400mm
Work Efficiency	4m3/h	5m3/h
Power	13.5HP gasoline engine	13.5HP gasoline engine
Engine Displacement	420cc	420cc
Fuel Tank Capacity	6.6L	6.6L
Engine Oil Capacity	1.1L	1.1L
Gross Torque	25N.m/2500rpm	25N.m/2500rpm
Firewood Conveyor	Length:3.2m	Length:3.2m
		Width of belt:250mm	Width of belt:250mm
		Width of chute:400mm	Width of chute:400mm
		Hydraulic rotator:1set	Hydraulic rotator:1set
Chain Saw length	22‘’	22”
Chain Saw Rotate Speed	5600rpm	5600rpm
Sawing Speed	Adjustable	Adjustable
Oil Pump	22GMP, 2-stage	22GMP, 2-stage
Oil Tank Capacity	50L	50L
Control Valve	ONE-handle	ONE-handle
Control Valve		4-Directional control valve	4-Directional control valve
Tyre	12"	12"
Knife	4 ways (6 ways option)	4 ways (6 ways option)
Weight	480kg	510kg
Main Machine Package size	2200x900x1100mm	2200x900x1100mm
Conveyor Package Size	22609601170mm	22609601170mm
Units/20’:	7Units	7Units

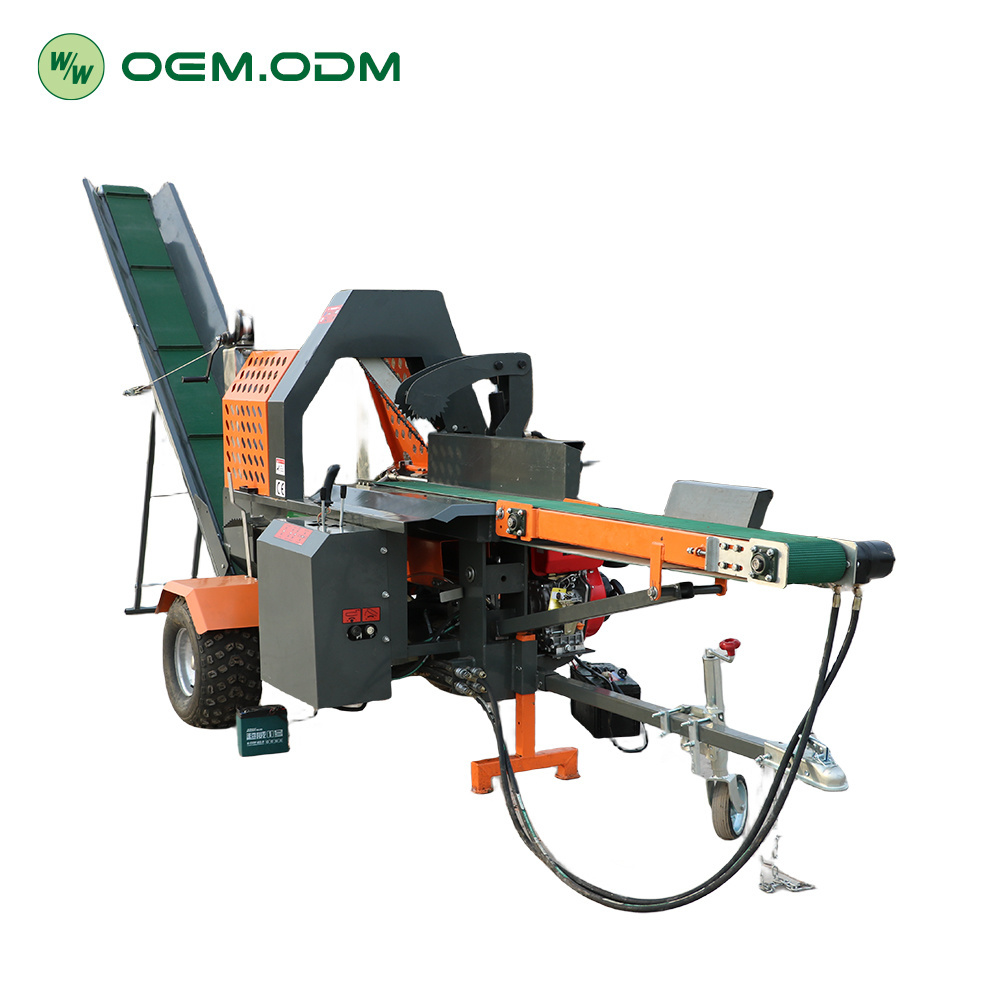

Jierui Machinery are proud to unveil our new range of firewood processors, After years of being in the forestry industry a processor, has always been in the works. The JR480D is our 20ton splitting force model. With its modern efficient hydraulic system the dominator processors are smooth and easy to use and complies with the new (2018) CE safety standard. The JR480D comes complete with hydraulic feeder, 3 meter conveyor,22″ STHIL Chainsaw blade and Briggs & Stratton engine with electric start as standard. We have tried to keep the operation simple, easy and safe. The saw will not engage until the safety handle is used and guards are down. If the guard is raised the hydraulic system will automatically stop the saw and splitter from working for increased operator safety. Once the timber has been sawn and dropped into the splitting area the ram will automatically engage pushing the log into the fully height adjustable 4 way splitting head. The processor has a 50mm tow hitch for towing around the yard or working area.

Product Details

Hydraulic automatic log clamping

Automatic feed conveyor system
