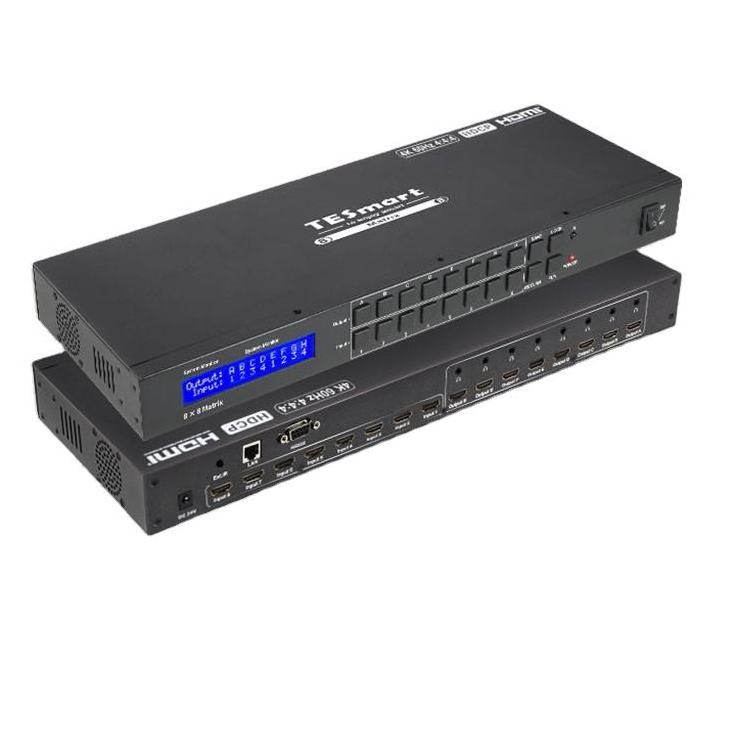

TESmart 8x8 Video Matrix 4K 60HZ With L/R Support Power Off Memory Smart EDID LAN RS232 IR Remote 8 In 8 Out HDMI Video Switch

TESmart 8x8 Video Matrix 4K 60HZ With L/R Support Power Off Memory Smart EDID LAN RS232 IR Remote 8 In 8 Out HDMI Video Switch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1200.35

≥100 Pieces

US $1100.22

≥200 Pieces

US $840.14

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: 8X8 HDMI Switcher

Resolution:: 4K@60Hz

Feature 1:: EDID

Feature 3:: additional power supply

Input:: 8 HDMI

Output:: 8 HDMI

Material:: Metal

Quick Details

Model Number:: HMA0808A1U

Brand Name:: TESmart

Place of Origin:: China

Product name:: 8X8 HDMI Switcher

Resolution:: 4K@60Hz

Feature 1:: EDID

Feature 3:: additional power supply

Input:: 8 HDMI

Output:: 8 HDMI

Material:: Metal

Products Description

If you have multiple sources and display devices like game consoles, streaming boxes, projectors and monitors, our 8 x8 HDMI Matrix can help you match your devices at will. It also supports audio separation to enable independent audio play with an extra audio output port in each HDMI output. You can switch input ports with front panel buttons, IR signals, RS232 port and LAN port.

Features:

● All the HDMI outputs can share same input or select standalone input

● Each output group contains an HDMI port and an audio jack

● Support resolution up to 3840x2160@60Hz 4:4:4

● HDMI 2.0 compliant

● HDCP 2.2 compliant

● Support audio separation which could play audio independently corresponding to the HDMI output port

● Matrix status could be memorized after power down, automatically restore previous matrix status after next power on

● Smart EDID management, make it compatible with most display devices

● Support 8 confifigurable user preset connections

● Easy to control matrix via IR receiver, front panel key and PC (via RS232 port or LAN port)

Packing List

1 * 8x8 HDMI Matrix

1 * IR Remote Control

1 * IR Extension Cable

1 * DC 24V Power Adapter

2 * Rack-ears

1 * User Manual

Specification

HMA0808A1U		8x8 HDMI Matrix
Functionality
Port selection	Front panel buttons		Yes
	Console commands		RS232/IP
	IR remote control		Yes
OSD		No
Smart EDID		Yes
Technical
Resolution		Up to 3840x2160@60Hz
HDCP version		2.2
Data rate		18 Gbps
Input		8*HDMI Type A
Output		8*HDMI Type A
		8*AUX
ESD protection		Human body model - ±8kV (Air-gap discharge)
Mechanical
Chasing material		Metal
Power supply		DC 24V 2A
Operating/Storage temperature		0 to 70 degree/-40 to 85 degree
Operating Humidity		10 to 90% RH
