Products Description

Features

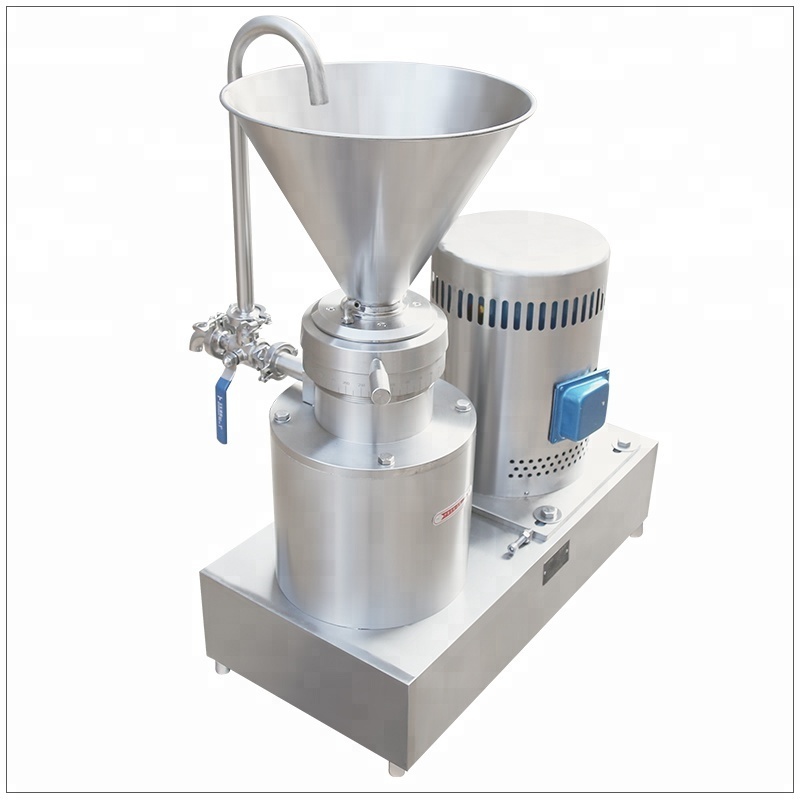

● Sanitary food-grade stainless steel. Except motor part, all contact parts are made of stainless steel, especially both dynamic grinding disc and static grinding disc are reinforced, making them better properties of corrosion-resistance and wear-resistance. In that case, the finished materials are non-pollution and safe. ● Colloid mill is an ideal equipment for processing fine materials with features of compact design, elegant appearance, good seal, stable performance, easy operation and high production efficiency. ● The motor and the base are separate in the split colloid mill, ensuring good stability, easy operation and a long service life of motor, furthermore it avoids material leakage to prevent motor from burning. It employs labyrinth seal, no wear, corrosion-resistance and less failure. Driving by pulley, it can change gear ratio, increase speed and make materials crushed finely. ● How to know the capacity of a colloid mill ? The flow varies greatly according to materials of different density and viscosity. For example the flow of viscous paint and thin dairy fluids can be different more than 10 times on the same colloid mill. ● Capacity depends on concentration and viscosity of materials ? A colloid mill mainly consists of a motor, grinding parts, driving and base part. Among them, dynamic grinding core and static grinding core are key parts. So you may need to choose different models according to nature of materials. ● Various colloid mill are small vibration, work smoothly and no need foundation.

How to choose a suitable colloid mill?

Check model no : The model no. of a colloid mill shows its structure type and diameter (mm) of grinding disc, which determines capacity. Check capacity : the capacity of a colloid mill varies greatly according to materials of different density and viscosity.

Circulation Tube : suitable for low-viscosity materials that need recycling and reflux for grinding, such as soy milk, mung bean drinks, etc. Rectangle Inlet : suitable for high and medium viscosity materials that don’t need reflux or grinding, such as peanut butter, chili sauce, etc.

Product Parameters

For your Detailed description and drawings, please send us inquiry and request!

● Sanitary food-grade stainless steel. Except motor part, all contact parts are made of stainless steel, especially both dynamic grinding disc and static grinding disc are reinforced, making them better properties of corrosion-resistance and wear-resistance. In that case, the finished materials are non-pollution and safe. ● Colloid mill is an ideal equipment for processing fine materials with features of compact design, elegant appearance, good seal, stable performance, easy operation and high production efficiency. ● The motor and the base are separate in the split colloid mill, ensuring good stability, easy operation and a long service life of motor, furthermore it avoids material leakage to prevent motor from burning. It employs labyrinth seal, no wear, corrosion-resistance and less failure. Driving by pulley, it can change gear ratio, increase speed and make materials crushed finely. ● How to know the capacity of a colloid mill ? The flow varies greatly according to materials of different density and viscosity. For example the flow of viscous paint and thin dairy fluids can be different more than 10 times on the same colloid mill. ● Capacity depends on concentration and viscosity of materials ? A colloid mill mainly consists of a motor, grinding parts, driving and base part. Among them, dynamic grinding core and static grinding core are key parts. So you may need to choose different models according to nature of materials. ● Various colloid mill are small vibration, work smoothly and no need foundation.

Working Principle

The basic work principle of colloid mill is that fluid or semi-fluidmaterials pass the gap between fixed tooth and rotation tooth which are relative high-speed interlocking to make materials bear strong shearing force, frictional force and high-frequency vibration force. Grinding is by the relative motion of toothed bevels, one rotates at high speed, the other keeps static. In that case, materials passing the toothed bevels are greatly sheared and rubbed. At the same time, those materials are under forces of high-frequency vibration and high-speed vortex, which make them ground, emulsified, crushed, mixed, dispersed and homogenized, finally fine finished products are achieved.

Spiral Feeder: For feeding materials of large particles to the mill disc.

Blade Feeder: For fluid of small particles, semi-fluid and emulsion materials.

Static Disc: It makes materials greatly sheared and rubbed when passing though toothed bevels

Rotation Disc: Making materials effectively ground, emulsified,

Product details

Note: The standard hopper capacity is 4 - 12 liters, and the customized capacity is acceptable.

Circulation Pipe / Hopper

Stainless steel mill cores

Cooling Pipe Fittings / Adjust Disc

Internal structure

Quick connector / Outlet

Square outlet

Motor

Strengthen the base

Customer case

Send an inquiry to obtain Manuals and Videos for detailed operation instruction and Advice on optimize work process.

Advantages

Certification	25 National Patents, Audited by SGS/TUV/CE/ISO9001
Quality Guarantee	Complaint rate as low as 5‰ for 15 years. If you decide to purchase from us, any malfunction happened, once you enquiry us, we will reply you solution within 48 hours except the special reasons
Short Lead Time	Lead time is flexible. Short turnaround of replacement parts made by substantial storage, Normally we are 20% faster than others. If you have urgent orders, pls feel free to contact us. We will get the job done with 100% satisfaction.
24/7 Available	All your inquiry will be responded within 1 hour. All your quotation will be satisfied within 12 hours.
Why choose us？	•100% manufacturer • Rich production experience •Strict Quality Control System •Flexible MOQ •Punctual delivery •Excellent and Experienced Team
