Quick Details
-
Main Circuit Rating Current:
-
9-475A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YOGU/OEM
-
Model Number:
-
3TF
-
Frequency:
-
AC50/60Hz
-
Number of the contact:
-
NC+NO
-
Installation:
-
Rail or Screw
-
Color:
-
White, Black
Quick Details
-
Electricity Type:
-
AC
-
Number of Pole:
-
3
-
Phase:
-
3
-
Main Circuit Rating Current:
-
9-475A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YOGU/OEM
-
Model Number:
-
3TF
-
Frequency:
-
AC50/60Hz
-
Number of the contact:
-
NC+NO
-
Installation:
-
Rail or Screw
-
Color:
-
White, Black

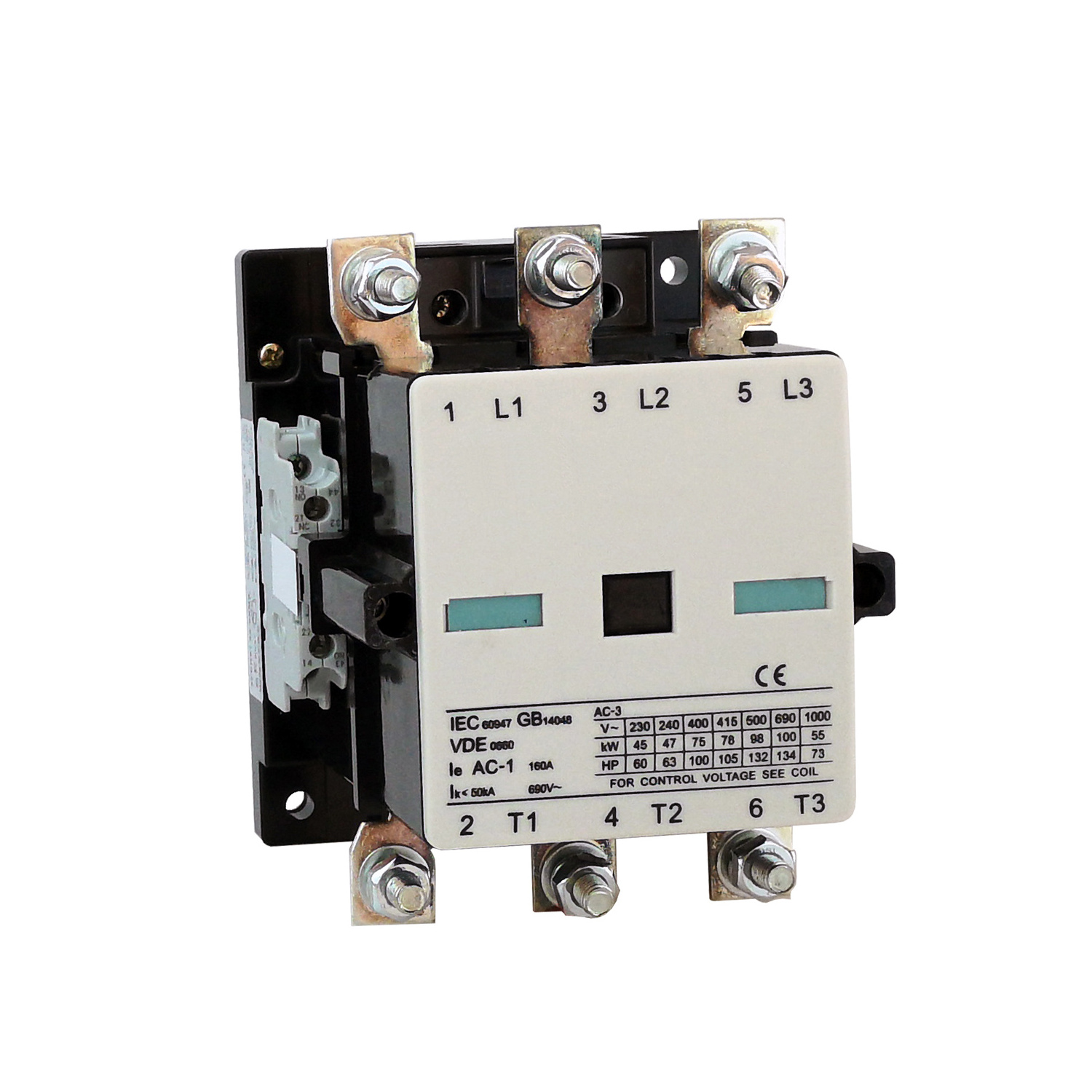

3TF Series Ac Magnetic Contactor
are suitable in electrical system with AC 50/60Hz, rated operational voltage up to 660V, In AC-3 usage, rated operational voltage up to 380V, rated operational current up to 630A to make or break remote motors or system.
They can form electromagnetic starters with suitable thermal overload relays 3UA series to protect system and motors against overload or phase-failure. They are made according to IEC60947-4.
The contactor is a straight motion mechanism having double-breaking contacts.
The auxiliary contacts are arranged 2NO, 2NC at most. It is employed the flexible locking connection between the contact support and core.
There is no arc-isolated panel in the le≤22A contactors. In the In≥32A contactors, there are moulded are-chute with the arc-isolated panel.
Because all contacts are made of high non-fusibility and against corrosion silver alloy. All series products can be mounted by screws, le 32A contactor also by installation rail.
