Quick Details
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Brand Name:
-
SINOTRUK HOWO
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8214x2496x3386mm
-
Cargo Tank Dimension:
-
5600x2300x1500mm
-
Truck Model:
-
ZZ3257N3847A
-
Truck Brand:
-
SINOTRUK-HOWO
-
Cargo body size (L*W*H, mm(mm):
-
5600x2300x1500
-
Cargo body thickness(mm):
-
bottom:8mm, side:6mm,
-
Lift type of Carriage:
-
Front or Ventral lifting
-
Approaching angle/Departure angle(°):
-
19/23
-
Engine Model:
-
WD615.47
-
Horse Power, max(kw/rpm):
-
371HP
-
Color:
-
Customer's Request
Quick Details
-
Condition:
-
Used
-
Horsepower:
-
351 - 450hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
25000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Brand Name:
-
SINOTRUK HOWO
-
Place of Origin:
-
Shandong, China
-
Dimensions (L x W x H) (mm):
-
8214x2496x3386mm
-
Cargo Tank Dimension:
-
5600x2300x1500mm
-
Truck Model:
-
ZZ3257N3847A
-
Truck Brand:
-
SINOTRUK-HOWO
-
Cargo body size (L*W*H, mm(mm):
-
5600x2300x1500
-
Cargo body thickness(mm):
-
bottom:8mm, side:6mm,
-
Lift type of Carriage:
-
Front or Ventral lifting
-
Approaching angle/Departure angle(°):
-
19/23
-
Engine Model:
-
WD615.47
-
Horse Power, max(kw/rpm):
-
371HP
-
Color:
-
Customer's Request
Products Description

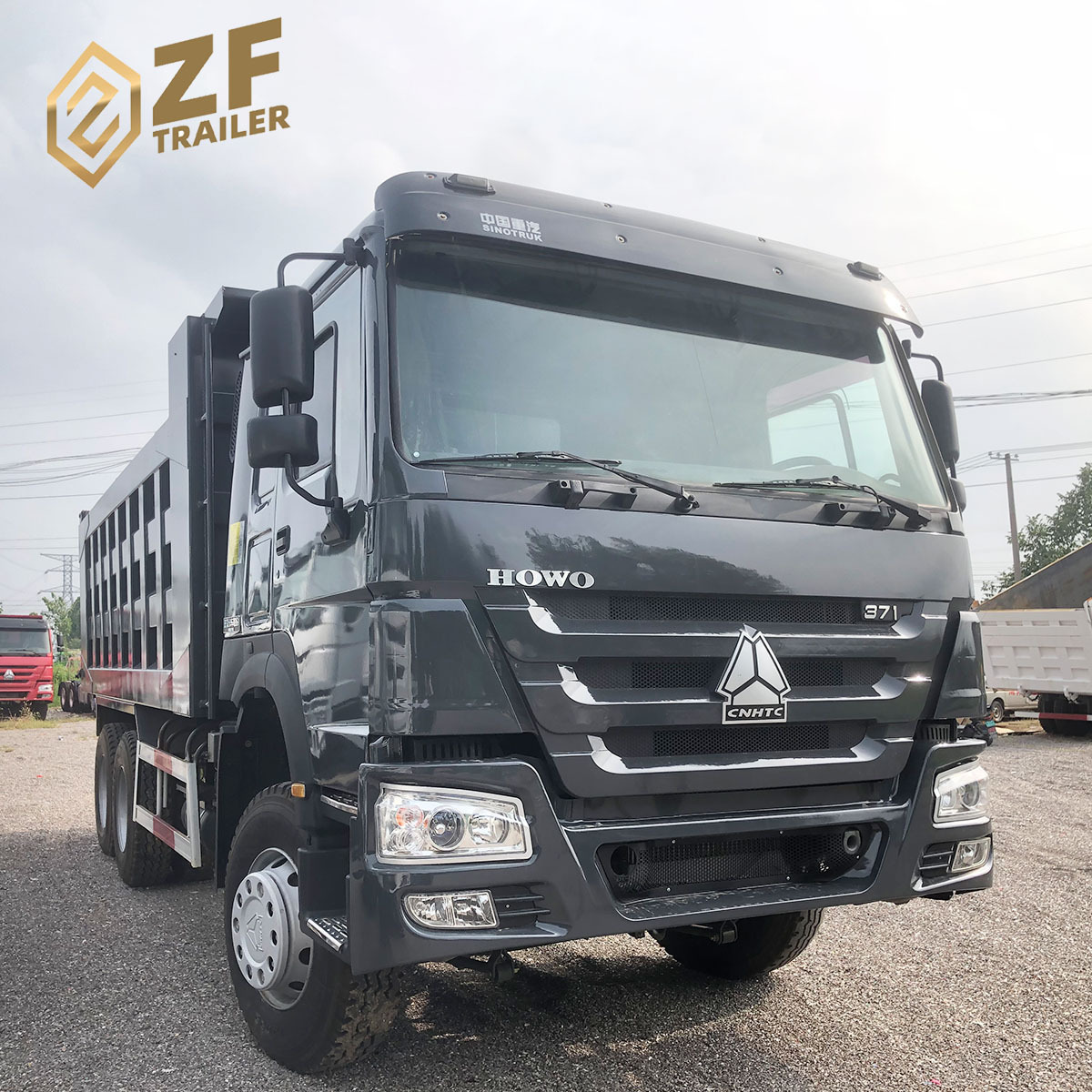

Used 10 Wheel 371/375 horse power d 6x4 18 Cubic Meter tipper truck Mining dump Truck with left hand drive with
Our company has
15 years of export experience
The product quality with a
Two year warranty.
Source factory with
low product prices.
It is recommended to choose triangle type lifting mechanism for dump truck. The structure has 40 years of history in China, and the technology is relatively mature. It is suitable for reasonable arrangement of dump truck with 4~6 meters length, the force of each part will not exceed the bearing capacity of the parts, and the oil pressure of the system is small, so as to ensure the service life of each seal. Select high quality hydraulic cylinder.
Details Images
Our used tipper trucks are available for customers to choose from.Firstly,we have 336 HP to 420 HP for you to choose from.You can choose to use the most suitable horsepower in your country, we can renovate according to your requirements.Secondly,The present running mileage of this used howo tractor is 50,000 to 70,000 kilometers.Generally speaking,these trucks can work 8 years more in the future.The final service life will depend on road conditions and the maintenance.
.
If it is a large coal mine or a large-scale project, the tipper truck requires much more labor and cost than the tipper semi-trailer, and the tipper trailer is more suitable for use in these aspects. Each time it is carried, the tipper truck is several times brighter. The engineering time can be shortened, and the efficiency can be improved.
Product parameter
|
Truck Model
|
|
|
ZZ3257N3847A
|
|
|||
|
Truck Brand
|
|
|
SINOTRUK-HOWO
|
|
|||
|
Dimension(Lx W xH)(unloaded)(mm)
|
|
|
8214x2496x3386
|
|
|||
|
Cargo body size (L*W*H, mm(mm)
|
|
|
5600x2300x1500
|
|
|||
|
Cargo body thickness(mm)
|
|
|
bottom:8mm, side:6mm,
|
|
|||
|
Lift type of Carriage
|
|
|
Front or Ventral lifting
|
|
|||
|
Approaching angle/Departure angle(°)
|
|
|
19/23
|
|
|||
|
Overhang(front/rear) (mm)
|
|
|
1500/1739
|
|
|||
|
Wheel base (mm)
|
|
|
3625+1350
|
|
|||
|
Max speed(km/h)
|
|
|
75
|
|
|||
|
Curb weight(kg)
|
|
|
12270
|
|
|||
|
Loading Weight(kg)
|
|
|
30000-40000
|
|
|||
|
Fuel tanker capacity (L)
|
|
|
300L with locking fuel cap
|
|
|||
|
Fuel consumption(L/100km)
|
|
|
32
|
|
|||
|
Clutch
|
|
|
Single-plate dry clutch Φ420mm
|
|
|||
|
Engine Model
|
|
|
WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling 371HP EUROII
|
|
|||
|
Transmission
|
|
|
HW 19710,10 forwards and 2 reverse
|
|
|||
After-sale Service
1: Our company promise a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.
2: Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of foreign service department, will be better to serve the global customers.
3: We are serious about after-sales service.
Product packaging
Shipping method: Ro-Ro, Bulk cargo, Container These three modes of transportation, we can provide customers with the most economical semi-trailer transportation plan according to the number of semi-trailers required by customers.
