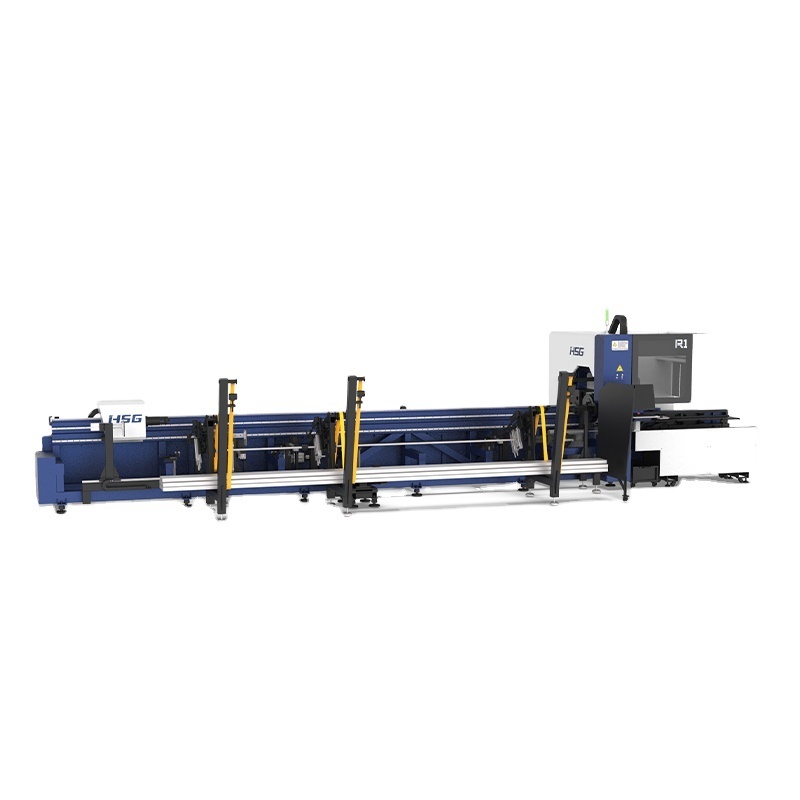

Fully Automatic Tube Metal Laser Cutting Machine with High Speed and High Precision

Fully Automatic Tube Metal Laser Cutting Machine with High Speed and High Precision

FOB Reference Price: Get Latest Price

≥1 Sets

US $128000

≥10 Sets

US $115000

≥20 Sets

US $86000

≥100 Sets

US $78000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Cutting Area:: /

Place of Origin:: Guangdong, China

Brand Name:: HSG Laser

Weight (KG):: 3800 KG

Mode of Operation:: /

Configuration:: /

Feature:: /

Control system:: Intelligent Bus Operating System

Cutting materials:: Metal Carbon Steel Copper SS CS Brass

Fiber Laser Source:: IPG / Raycus

After-sales Service Provided:: Online support and local service

Length of Tube:: 7300mm

Laser power:: 1500-3000W

Cetification:: CE

Cooling system:: Water Cooling System

Quick Details

Laser Type:: Fiber Laser

Cutting Speed:: 90m/min

Cooling Mode:: WATER COOLING

Cutting Area:: /

Place of Origin:: Guangdong, China

Brand Name:: HSG Laser

Weight (KG):: 3800 KG

Mode of Operation:: /

Configuration:: /

Feature:: /

Control system:: Intelligent Bus Operating System

Cutting materials:: Metal Carbon Steel Copper SS CS Brass

Fiber Laser Source:: IPG / Raycus

After-sales Service Provided:: Online support and local service

Length of Tube:: 7300mm

Laser power:: 1500-3000W

Cetification:: CE

Cooling system:: Water Cooling System

Hi-tech Enterprise

HSG Laser, dated back to 2006, as a hi-tech enterprise focusing on R&D, production and sales of laser equipment,
is dedicated to serve global customers with metal forming solutions. HSG Laser has applied for 366 patents in total.

Serve 100+ Countries and Regions
HSG Laser has built 4 standardized manufacturing plants in China, 13 branches/subsidiaries/sub-subsidiaries
and 30+ service outlets overseas. Now, we have a total staffff of 1700+ employees, incl. 200+ R&D personnel
and can produce 8000 sets each year by right of 960000m2 production area.

Professional R&D Team
Our R&D team has developed 3D fifive-axis bevel cutting, P40 (40000W) autofocus cutting head,double digital
chucks, Alpha T and HSG-X9000 bus system.

Large Variety in Fiber Laser Machines
HSG Laser can serve global users with 30+ kinds of machines , including sheet metal laser cutting machine,
sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine, welding machine and
automation equipment.

Product Description

High-speed Tiny Tube Laser Cutting Machine

Basic Information

< Follow-up Support for High Precision >

The machine bed is equipped with highly sensitive and independent servo follow-up support to provide enough support force in rotation cutting and achieve high cutting accuracy.

< Efficient Multi-mode Loading >

* R1 Series matches with automatic material racks to achieve loading material in 20s.

* Automatic material racks can support the tubes with 20mm-120mm diameter and 4m-6.5m length.

* Automatic material rack is compatible with semi-automatic loading mode for loading one by one.

< Chuck Jumping for Short Tailings >

* Standard equipped with chuck jumping of the cylinder and R1 Series can shorten the large amplitude of tailing length through chuck jumping.

* Jumping type of high-precision cutting can ensure the cutting accuracy of long tubes by chuck displacement.

* Optional servo chuck jumping can finish chuck jumping action accurately and efficiently.

< Double Squircle Pneumatic Chucks >

* Various auxiliary functions of tube laser cutting machines to satisfy multiple processing demand

* R1 series is equipped with professional nesting software to achieve efficient management of production progress and price calculations.

Specification

Applications

HSG Fiber Laser Cutting Machines are widely used in M anufacture Billboard, Signs, Advertising, Signage, Metal Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts Nameplates, etc.

Technical Parameter

Model	R1
Power	1500-3000W
X/Y-axis Positioning Accuracy	±0.05mm/m
Cutting Capacity of Round Tube	Φ6-Φ120mm
Cutting Capacity of Square Tube	□66-□120120mm
Weight of Single Tube	≈50kg
* The price of machine with different powers is also different. Please contact the customer service staff for consultation.

Sample Display

Certifications

Office Area

Visit & Exhibition

Packing & Delivery

OUR QUALITY TESTING EQUIPMENT

Tri-linear coordinates measuring instrument, Machine body leveller, Collimator, Precise height measuring instrument, Guide rails straightness meter, Laser interferometer.

HIGH-STANDARD PACKAGE

To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oil paper, moisture-barrier bag, waterproof plastic film and filling foam.
