Quick Details
-
Model Number:
-
UCL
-
Brand Name:
-
KITZ
-
Product name:
-

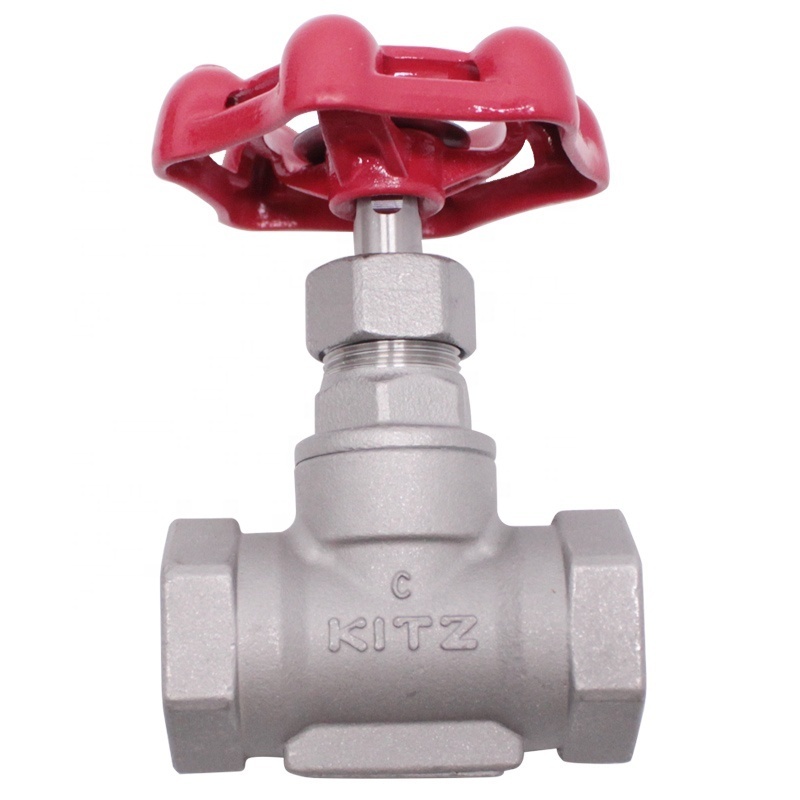

KITZ UCL Globe valve
-
Type:
-
2-way, Globe Valves
-
Medium:
-
Water Oil Gas
-
Body material:
-
Stainless Steel 304
-
Standard:
-
ANSI BS DIN JIS
-
Size:
-
DN8-DN50
-
Connection:
-
NPT
-
Working pressure:
-
PN16
-
Working Temperature:
-
-10℃~120℃
-
Valve type:
-
UCL
Quick Details
-
Port Size:
-
DN8-DN50
-
Warranty:
-
1 year
-
Place of Origin:
-
Japan
-
Model Number:
-
UCL
-
Brand Name:
-
KITZ
-
Product name:
-
KITZ UCL Globe valve
-
Type:
-
2-way, Globe Valves
-
Medium:
-
Water Oil Gas
-
Body material:
-
Stainless Steel 304
-
Standard:
-
ANSI BS DIN JIS
-
Size:
-
DN8-DN50
-
Connection:
-
NPT
-
Working pressure:
-
PN16
-
Working Temperature:
-
-10℃~120℃
-
Valve type:
-
UCL
10K CAST STAINLESS STEEL,GLOBE VALVES,SCREWED BONNET,INSIDE SCREW,SCREWED ENDS.,END TO END:KITZ STANDARD,END CONNECTION:JIS B0203,WALL THICKNESS:KITZ STANDARD,TEST STANDARD:KITZ STANDARD
1.0MPa:180℃,
200psi. W.O.G.:350°F S.P.
Test Pressure(MPa) Inspection Standard:KITZ St'd-2
| Water | Air | |
| Shell | 2.10*(1/4-2inch,8-50mm) | 1.4(1/4-2inch,8-50mm) |
| Seat | - | 0.6(1/4-2inch,8-50mm) |
| Back Seat | - | - |
Size Range
| inch | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| mm | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 |
| L | 44 | 48 | 52 | 60 | 72 | 80 | 90 | 100 |
| H | 68 | 68 | 68 | 93 | 100 | 122 | 138 | 153 |
| D | 55 | 55 | 55 | 60 | 70 | 80 | 90 | 100 |
