Quick Details
-
Feed Mechanism:
-
Manual
-
Place of Origin:
-
China
-
Power:
-
370W
-
Overall Dimensions:
-
520*340*440
-
Weight (KG):
-
28 KG
-
Keywords:
-
button attaching sewing machine
-
Needle Type:
-
TQx1(#16)#14 20
-
Number of stitches:
-
8,16 and 32 stitches
-
Model:
-
UH373
-
Product name:
-
button attaching machine sewing machine industrial
-
Application:
-
light to medium materials
-
Stitch type:
-
chainstitch
Quick Details
-
Type:
-
Industrial Sewing Machine
-
Max. Sewing Thickness:
-
5.5mm
-
Stitch Length:
-
8,16 and 32 stitches
-
Feed Mechanism:
-
Manual
-
Place of Origin:
-
China
-
Power:
-
370W
-
Overall Dimensions:
-
520*340*440
-
Weight (KG):
-
28 KG
-
Keywords:
-
button attaching sewing machine
-
Needle Type:
-
TQx1(#16)#14 20
-
Number of stitches:
-
8,16 and 32 stitches
-
Model:
-
UH373
-
Product name:
-
button attaching machine sewing machine industrial
-
Application:
-
light to medium materials
-
Stitch type:
-
chainstitch

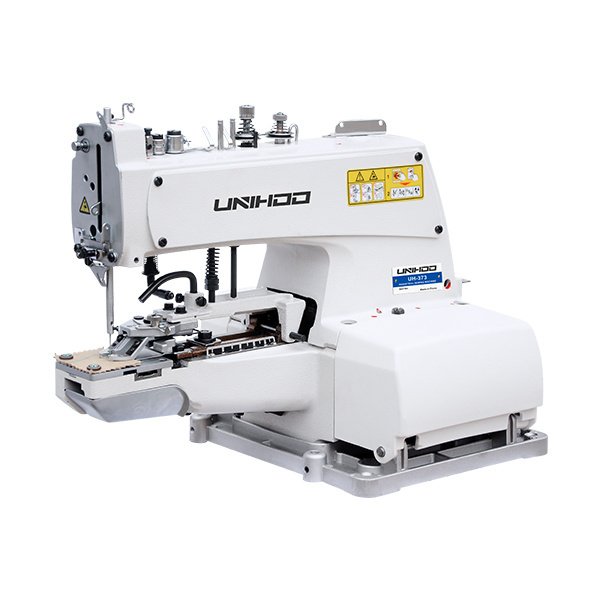

Product Description
Features
1)
The single-thread, chainstitch, button sewing machine, which is frequently used for sewing buttons on men's wear and blouses under different sewing conditions, has been redesigned with its capabilities upgraded.
2)
This single machine is able to sew two different kinds of buttons to save space and increase availability.
3)
The machine sews buttons with an optimum number of stitches; 8, 16 or 32, according to the sewing conditions.
Specification
|
Model
|
UH373
|
|
Max. speed
|
1,500sti/min
|
|
Lubrication
|
Automatic
|
|
Needle type
|
TQx1(#16)#14 20
|
|
Number of Stitches
|
8,16 and 32 stitches
|
|
Feed length (crosswise feed)
|
2.5~6.5mm
|
|
Feed length (lengthwise feed)
|
0~6.5mm
|
|
Button size
|
10~28mm
|
|
Thickness of button
|
1.8~3.5mm (options max. 5mm)
|
|
Pesser foot lift
|
9mm
|
|
Power
|
370W
|
|
G/N weight & volume
|
28/22kg, 520*340*440mm=0.078cbm
|
|
Complete set
|
With stand & table and motor
|
