PVC PP 80mm lamella water clarifier for trickling filter
PVC PP 80mm lamella water clarifier for trickling filter
PVC PP 80mm lamella water clarifier for trickling filter
PVC PP 80mm lamella water clarifier for trickling filter
PVC PP 80mm lamella water clarifier for trickling filter
PVC PP 80mm lamella water clarifier for trickling filter
PVC PP 80mm lamella water clarifier for trickling filter
PVC PP 80mm lamella water clarifier for trickling filter

PVC PP 80mm lamella water clarifier for trickling filter

FOB Reference Price: Get Latest Price
≥5 Cubic meter
US $100
≥30 Cubic meter
US $50
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Lanyu
Material:
Pallet, pp/pvc/plastic/fiberglass
Weight:
1
Size:
1000*1000mm
Power:
220
Weight (KG):
2 kg
Application:
water treatment
Color:
blue /white/ black
Function:
precipitate solid impurities in water
Usage:
clarifier/Sand sink
Product name:
lamella honeycomb filter plate clarifier tube settler
MOQ:
10 pcs
size:
Diameter: 25mm, 35mm, 50mm, 80mm
Certification:
SGS
Environmental protection standard:
CJ/T83-1999

Quick Details

Applicable Industries:
water treatment
Core Components:
Media
Place of Origin:
Hebei, China
Brand Name:
Lanyu
Material:
Pallet, pp/pvc/plastic/fiberglass
Weight:
1
Size:
1000*1000mm
Power:
220
Weight (KG):
2 kg
Application:
water treatment
Color:
blue /white/ black
Function:
precipitate solid impurities in water
Usage:
clarifier/Sand sink
Product name:
lamella honeycomb filter plate clarifier tube settler
MOQ:
10 pcs
size:
Diameter: 25mm, 35mm, 50mm, 80mm
Certification:
SGS
Environmental protection standard:
CJ/T83-1999

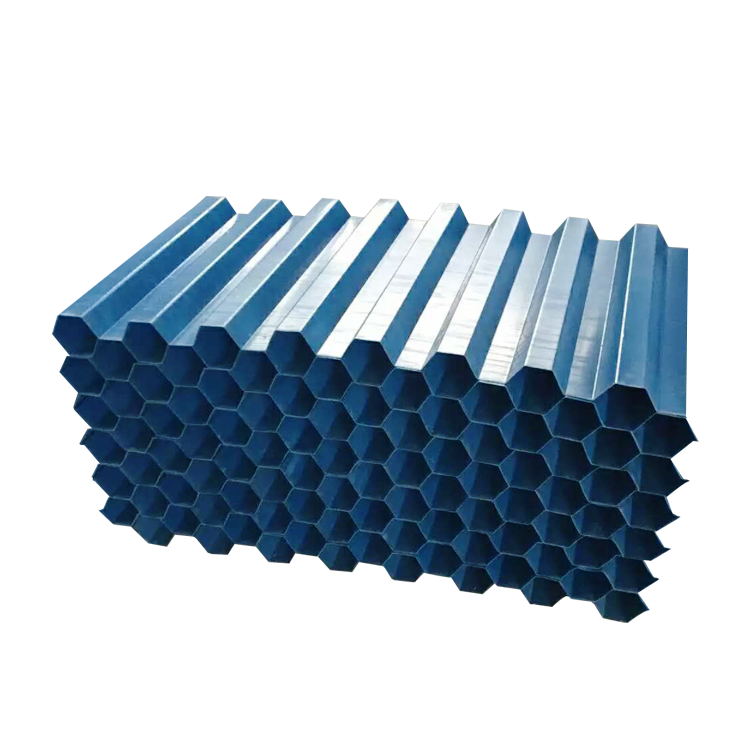

Tube settlers, also called lamella clarifiers, widely used in all different clarifiers to remove sand for water treatment.

The settlers use multiple tubular channels sloped at an angle of 60° and adjacent to each other, which combine to form an increased effective settling area. This provides for a particle settling depth that is significantly less than the settling depth of a conventional clarifier, reducing settling times.

Product Introduction

Item Tube settler media
Material PP PVC FRP
Diameter( mm) æ35 æ50 æ80 æ35 æ50 æ80 æ35 æ50 æ80
Sheet quantity /m2 40 32 20 40 32 20 40 32 20
Thickness (mm) 0.5 0.45 0.7 0.5 0.45 0.7 0.5 0.5 0.7
Weight (kg/m2) 21 16 16 31 23 23 41 31 31
One sheet size(mm) 1000*1000* δ 1000*1000* δ 1000*1000* δ
One block size(mm) 1000×1000×866 1000×1000×866 1000×1000×866
Color White Blue Can be customized
Assemble method Electrical heating Glue Glue
Installation angle 60° 60° 60°
Temperature 5 ~ 50 5 ~ 50 5 ~7 0
Proportion  g/cm3 0.92 1.35 ~ 1.46 1.8
Transportation mode By pcs By pcs By pcs
