* Top Ported, compact design
* Control included with 4-mode operation
* Top air outlets/outlets
* EPP inner struction
* Counterflow heat exchanger
* Heat recovery efficiency up to 95%
* EC fan
* Bypass function
* Machine body control + remote control
* Left or right type optnal for installation
- Product Details
- {{item.text}}
Quick Details
-
Cooling/Heating:
-
Cooling/Heating
-
Power Source:
-
Electric
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
China
-
Voltage (V):
-
220
-
Maximum Airflow Rate:
-
500m3/h
-
Featured Function:
-
ventilation, heat exchange, filteration
-
Recommended Room Size(square feet):
-
100-150m2
-
Name:
-
Compact Heat Recovery Ventilator
-
Heat exchanger::
-
high effiecnt heat exchanger
-
Airflow:
-
500m3/h
-
External static pressure::
-
160Pa
-
Fan Type::
-
EC fan
-
Temperature efficiency (%):
-
up to 95%
-
Energy Efficiency Class:
-
A
-
Noise:
-
39 dB(A)
-
Internal structure:
-
EPP
-
Control:
-
Machine body control + Remote LCD control
Quick Details
-
Capacity (btu):
-
<6000
-
EER:
-
<2
-
Type:
-
Floor Standing Air Conditioners
-
Cooling/Heating:
-
Cooling/Heating
-
Power Source:
-
Electric
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
China
-
Voltage (V):
-
220
-
Maximum Airflow Rate:
-
500m3/h
-
Featured Function:
-
ventilation, heat exchange, filteration
-
Recommended Room Size(square feet):
-
100-150m2
-
Name:
-
Compact Heat Recovery Ventilator
-
Heat exchanger::
-
high effiecnt heat exchanger
-
Airflow:
-
500m3/h
-
External static pressure::
-
160Pa
-
Fan Type::
-
EC fan
-
Temperature efficiency (%):
-
up to 95%
-
Energy Efficiency Class:
-
A
-
Noise:
-
39 dB(A)
-
Internal structure:
-
EPP
-
Control:
-
Machine body control + Remote LCD control
Projects Description
Model
|
|
CFA 250T
|
CFA 350T
|
CFA 500T
|
||
HRV
|
Housing material
|
sprayed sheet metal
|
|
|
||
|
Internal structure
|
EPP
|
|
|
||
|
Heat exchanger
|
Polystyrene
|
|
|
||
|
Fan motor
|
EC
|
|
|
||
|
Filter grade
|
G4 or optional F7
|
|
|
||
|
Control Panel
|
Two screen control, buttons + indica
tor light/digital tube |
|
|
||
|
Bypass
|
100% auto bypass
|
|
|
||
Working
condition |
Standard
|
-10~40°C
|
|
|
||
|
Equipped with
pipeline heater |
-20 to 40°C
|
|
|
||
Pipe
connection |
pipe diameter
|
Φ160mm
|
|
Φ200mm
|
||
Electrical
|
Power supply
|
230V 50Hz 1Ph
|
|
|
||
|
Max. power
|
170W
|
320W
|
480W
|
||
|
Max. current
|
1.5A
|
2.4A
|
3.2A
|

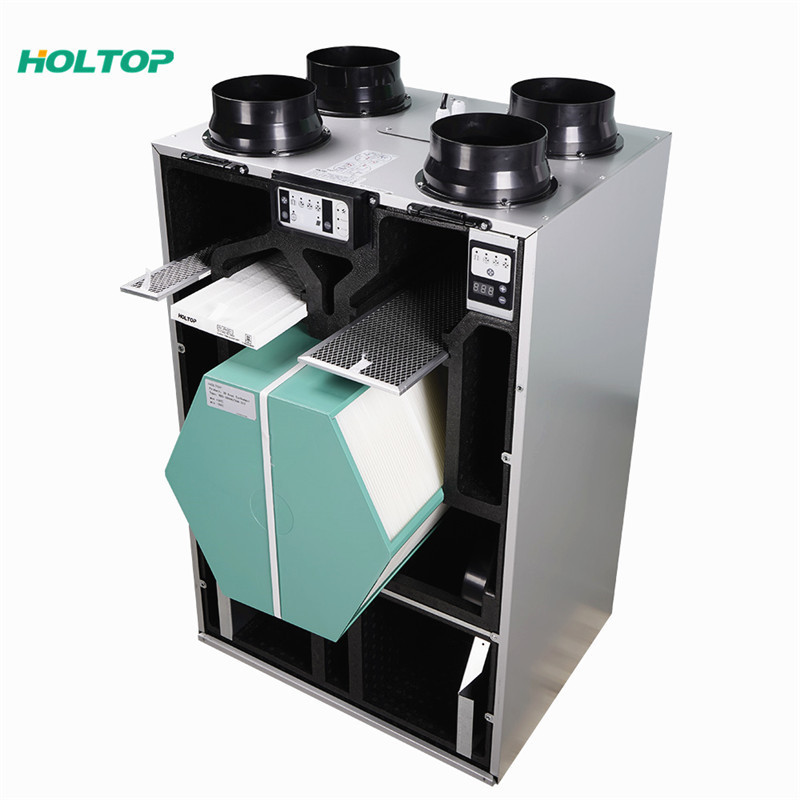

Product Structure
