Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1650*800*1780
-
Weight (T):
-
1.6
-
Function:
-
Metal Processing
-
Type:
-
Q35Y-16
-
Application:
-
Metal Sheet Stamping
-
Name:
-
Hydraulic Punch Press
-
Usage:
-
Pressing Metal Products
-
Color:
-
Blue
-
Material:
-
Steel Material
-
Capacity:
-
600KN
-
Slide Stroke (mm):
-
80
-
Motor Power (kw):
-
4 kw
Quick Details
-
Nominal Force (kN):
-
600
-
Place of Origin:
-
China
-
Brand Name:
-
lifeng
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1650*800*1780
-
Weight (T):
-
1.6
-
Function:
-
Metal Processing
-
Type:
-
Q35Y-16
-
Application:
-
Metal Sheet Stamping
-
Name:
-
Hydraulic Punch Press
-
Usage:
-
Pressing Metal Products
-
Color:
-
Blue
-
Material:
-
Steel Material
-
Capacity:
-
600KN
-
Slide Stroke (mm):
-
80
-
Motor Power (kw):
-
4 kw

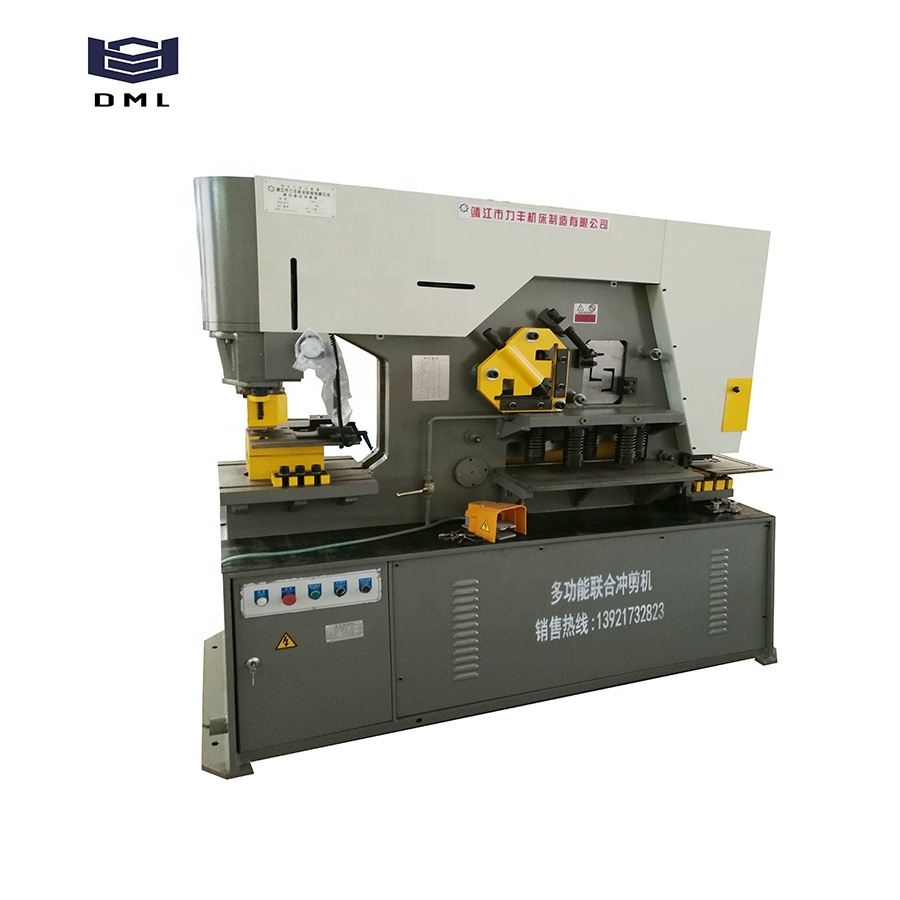

Multi-Purpose notch punch and shear hydraulic wide used Ironworker Machinery
Q35Y Series multi-function Hydraulic Iron worker is the latest product of the punching and shearing machine which can cut , punch , notch and bend all kinds of materials such as plate , flat bar , square bar , round bar , equal , angle, channel ,I-beam and so on .
Lifeng Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry.This profitable machine will serve any grueling fabrication shop for decades to come.
The machine by the European Union CE certification and ISO quality system certification
Product Application
Machine is widely uesd in steel , coal , high-speds railway , highway , automobile , shipbuilding , machine poower and other industries and so on .
Main Features
1) Punch hole
2) Cut angle bar
3) Cut round and square bar , channel bar and I-beam
4) Shearing plate
5) Notching
Punching :
Full range of universal punches and dies are available . Unique style allows for large angle iron punching and large channel punching .
Large viewing window on stripper swing awat design for ease of operation . Large two piece gauging table with rulers and stop as standard fittings . Quick changecoupling nut and sleeve for rapid replacement of change .
Shearing :
Different size channel and I-beam cutting . Large strong guarding of max safety .
Round and square bar shear has multiple holes for a variety of sizes . Adjustable hold down device for round and square bar .
The angle shear has the ability to cut angle at 45º both top and bottom leg . This gives the operator the ability to make a picture frame corner for perfect welds . Diamond shaped blade for quality cuts that is minimal material lost and deformity .
Notching :
Unique design allows for cutting of angle and flat bar . Electrical interlock safety guard and three gauging stops for precise positioning .
Notching is a metal-cutting process used on sheet metal or thin barstock , sometimes on angle sections or tube .
Accessories List :
a. A set of round hole punching die
b. A set of angle steel blade
c. A set of channel blade or round and square bar blade
d. A set of shearing plate blade
e. A set of notching blade
The above moulds will be installed in the machine, safety guards are also fitted as standard on all working stations. For other dies and blades, customers need to order and pay additionally.
Punching Die
A set of round hole punching die will be installed in the machine .
For other size of punching dies , you have to order and pay additionally .
Flat Bar Cutting Blade
The cutting blade will be installed in the machine .
Angle Steel Shearing Blade
The cutting blade will be installed in the machine .
Profile Cutting Blade
A set of round and square bar blade will be installed in the machine .
Also if you have to shear channel steel or I-beam steel , pls inform me the size .
For other blade , you have to order and pay additionally .
Notching Blade
The notching blade will be installed in the machine .
