Used 2D 3D cnc automatic wire strip bending forming machine other bending machines

1.Equipment Overview

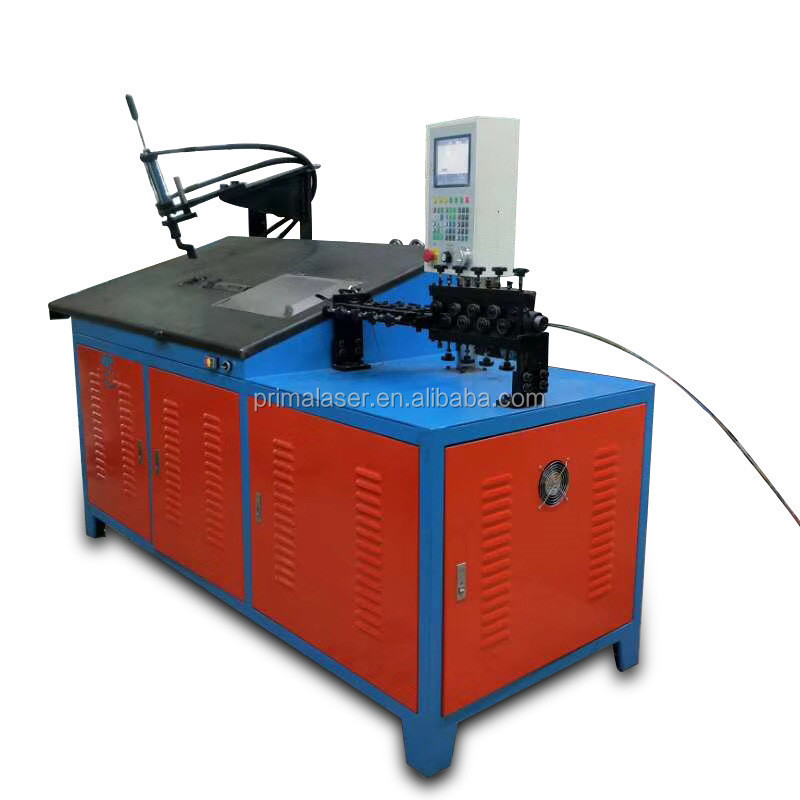

2D forming machine is a plane 2D wire bending forming machine. The forming process of wire shapes with different specifications can be realized through various transformations of molds. There are servo feeding + hydraulic cut-off combination, servo feeding + servo cut-off and full servo combination, which can be selected according to the size of actual products to achieve the highest cost performance. According to the needs of products, chamfering, arc punching, punching and other functions can also be added to achieve wider application and use.

2.Performance characteristics

(1) Outline structure layout: The plane design of the equipment is specialized in the frame type, star type and other 2-dimensional shape shaping design of round wire, flat wire and other wire rod. The servo + spring case is installed with the fuselage, and is equipped with CNC finishing, CNC finishing, and the whole machine is flexible, stable, efficient and labor-saving.

(2) Each device part: The equipment can straighten the protective wire + clamp + accurate wire feeding + forming + cutting at one go.

(3) Forming accuracy control: The equipment can be programmed to control the setting of part accuracy requirements, so as to meet the different forming requirements of different wires and different shapes.

(4) Memory system The equipment has memory storage function, which can save the processed formula. When re processing, it only needs to directly transfer the formula to complete the wire forming processing, and 2048 files can be stored for programming.

(5) Control system:The control system of 2D NC wire rod forming machine has a variety of manual, semi-automatic and full-automatic function choices, which is convenient for one machine to be multi-purpose. 32-bit high-performance processor, capable of storing 2048 files Programming, precision 0.01, control precision 0.01 (screw shaft precision up to 0.001), powerful function, reduce equipment investment and reduce production intensity.
