Shenzhen BWiN Precision Tools Co.,Ltd. is a main professional supplier in CNC Carbide inserts, Turning tools and Milling tools, BWiN manufacture with integration of R&D, Design and Sales. We insists the principles of
"High quality, Competitive price and Excellent service."
BWiN manufacture has over 1500 square meter factory area and storehouse. We are leading OED&ODM manufacture many years of experience in this filed. BWiN have various kinds of productc and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. BWiN relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BWiN
-
Product Name:
-
Carbide mini boring tools
-
Tip Arc:
-
R0.1/R0.15/R0.2
-
Shank Type:
-
Round shank
-
Coating:
-
TiSiN or uncoated
-
Machine Type:
-
Internal boring, profiling, threading, grooving
-
Suitable for:
-
Cast iron, tool steel, stainless steel
-
Shipment:
-
UPS, Fedex, DHL, EMS or Sea
Quick Details
-
Type:
-
Boring tools
-
Diameter:
-
1.5mm-12mm
-
Material:
-
Tungsten carbide, Tungsten carbide
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BWiN
-
Product Name:
-
Carbide mini boring tools
-
Tip Arc:
-
R0.1/R0.15/R0.2
-
Shank Type:
-
Round shank
-
Coating:
-
TiSiN or uncoated
-
Machine Type:
-
Internal boring, profiling, threading, grooving
-
Suitable for:
-
Cast iron, tool steel, stainless steel
-
Shipment:
-
UPS, Fedex, DHL, EMS or Sea
Products Description
|

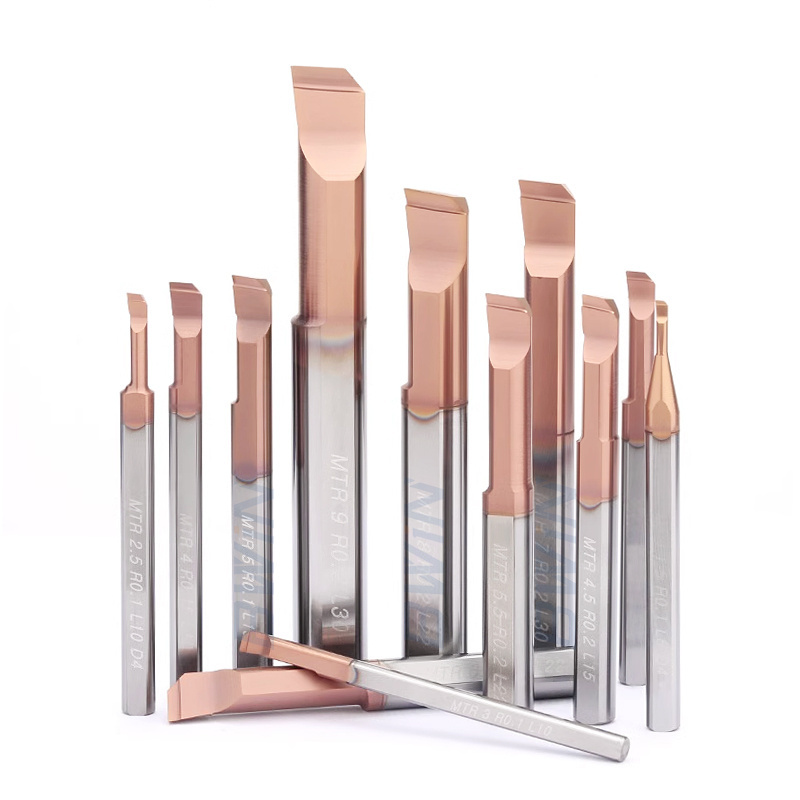

small hole micro bore cutter tool CNC MXR counter boring tool cylinder boring bar for lathe
|
|
|
|
Product Name
|
Micro boring tool
|
|
|
Material
|
Tungsten carbide
|
|
|
Model
|
MTR/MUR/MXR/MPR/MQR/MIR/MFR/MGR/MKR/MZR
|
|
|
Shank Diameter
|
1.5mm-12mm
|
|
|
Tip Arc
|
R0.1-R0.2
|
|
|
Coating
|
AlTiN, TiAlN, TiSiN, AlTiSiN, TiN or your requirement
|
|
|
Shank Type
|
Round shank
|
|
|
Suitable for
|
Cast iron, mould steel, carbon steel, stainless steel, copper, aluminium, etc
|
|
|
Machine Type
|
Internal boring, profile, thread, groove
|
|
|
Features
|
1. Smooth chip evacuation and efficient machining
2. The boring tool Is integrally formed
3. Imported machine tool precision Grinding
4. Nano coating is wear-resistant and durable
5. With Fixed Flat Position
|
|
|
All the specs. can be customized
|
|
|
1. High quality carbide rod:
All cutting materials are from international famous brands, high hardness, long tool life.
|
Grade
|
HRC45
|
HRC55
|
HRC60
|
HRC65
|
|
Materials
|
YG10X
|
ZK30UF
|
ZK40SF
|
GU25UF
|
|
|
Grain size: 0.8um
Co: 10% Flexural strength: 3320N/mm 2 |
Grain size: 0.6um
Co: 10% Flexural strength: 4000N/mm 2 |
Grain size: 0.5um
Co: 12% Flexural strength 4300N/mm 2 |
Grain size: 0.4um
Co: 12% Flexural strength: 4300N/mm 2 |
2. Super coating
Good coating can improve tools life and production efficiency, and we provide professional suggestions according to your cutting requirements.
|
Item
|
Color
|
Hardness (HV)
|
Thickness (UM)
|
Oxidation Temp.(℃)
|
Friction Coeffient
|
|
AlTiN
|
Black
|
3300
|
2.5-3
|
900
|
0.3
|
|
TiAlN
|
Violet
|
2800
|
2.5-3
|
900
|
0.3
|
|
TiSiN
|
Bronze
|
3600
|
3
|
1000
|
0.45
|
|
AlTiSiN
|
Blue
|
4000
|
4
|
1200
|
0.4
|
|
TiN
|
Gold
|
2500
|
2.5-3
|
600
|
0.4
|
|
The key cutting products we selling as below:
|
|
|
|
◆ Carbide inserts
◆ Solid Carbide End Mills
◆ Turning Bar Tool ◆ Face Milling Tool |
◆ Drills & Reamers & Thread Cutters & Burrs
◆ Thread Tapper Tool ◆ CNC Chuck & Adapter ◆ Precision Tool Vise ◆ Other Accessories |
|
Other Products
Our Company
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer with more than 10 years experience in this field.
2. How to place an order?
1.Fill your Order List in our online Inquiry System.
2.Directly contact our salesperson by E-mail / Skype / Whats App
We will make a feedback to you ASAP after receive your order list.
3. What is your payment terms?
T/T, Paypal, Western Union, Alibaba assurance for different circumstances.
4. What's your delivery way?
Express delivery, DHL, TNT, FEDEX , EMS, air shipping, sea shipping are available for your request.
5. Do you offer OEM?
Yes, we do. We have laser machine lasering your logo and tool specification on the body of tools. Also, we can print customized on plastic boxes.
6. How about the delivery time?
Usually delivery time is 2~3 days after receiving the advance payment. For the customized product, 7-10 days after receiving the advance payment.
