Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Signalinks
-
Place of Origin:
-
Guangdong, China
-
Product:
-
4G CPE Router
-
Chipset:
-
ZX7520V3
-
Peak Transmission Rate:
-
150Mbps/50Mbps
-
Frequency:
-
1/2/3/4/5/6/7/8/9/12/13/17/19/20/25/26/28A/28B/38/39/40/41
-
The output voltage:
-
5V DC±10%,1A
-
WiFi Sharing:
-
32 users or 16 users
-
Antenna:
-
2*2 MiMo for LTE and WiFi
-
Protocol:
-
IEEE 802.11b/g/n
-
Certification:
-
CE/ROHS/ISO9001/FCC
-
ESIM:
-
support
Quick Details
-
Max. LAN Data Rate:
-
150Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Signalinks
-
Place of Origin:
-
Guangdong, China
-
Product:
-
4G CPE Router
-
Chipset:
-
ZX7520V3
-
Peak Transmission Rate:
-
150Mbps/50Mbps
-
Frequency:
-
1/2/3/4/5/6/7/8/9/12/13/17/19/20/25/26/28A/28B/38/39/40/41
-
The output voltage:
-
5V DC±10%,1A
-
WiFi Sharing:
-
32 users or 16 users
-
Antenna:
-
2*2 MiMo for LTE and WiFi
-
Protocol:
-
IEEE 802.11b/g/n
-
Certification:
-
CE/ROHS/ISO9001/FCC
-
ESIM:
-
support
|
Signalinks Communication Technology Co.,Ltd |
||
|

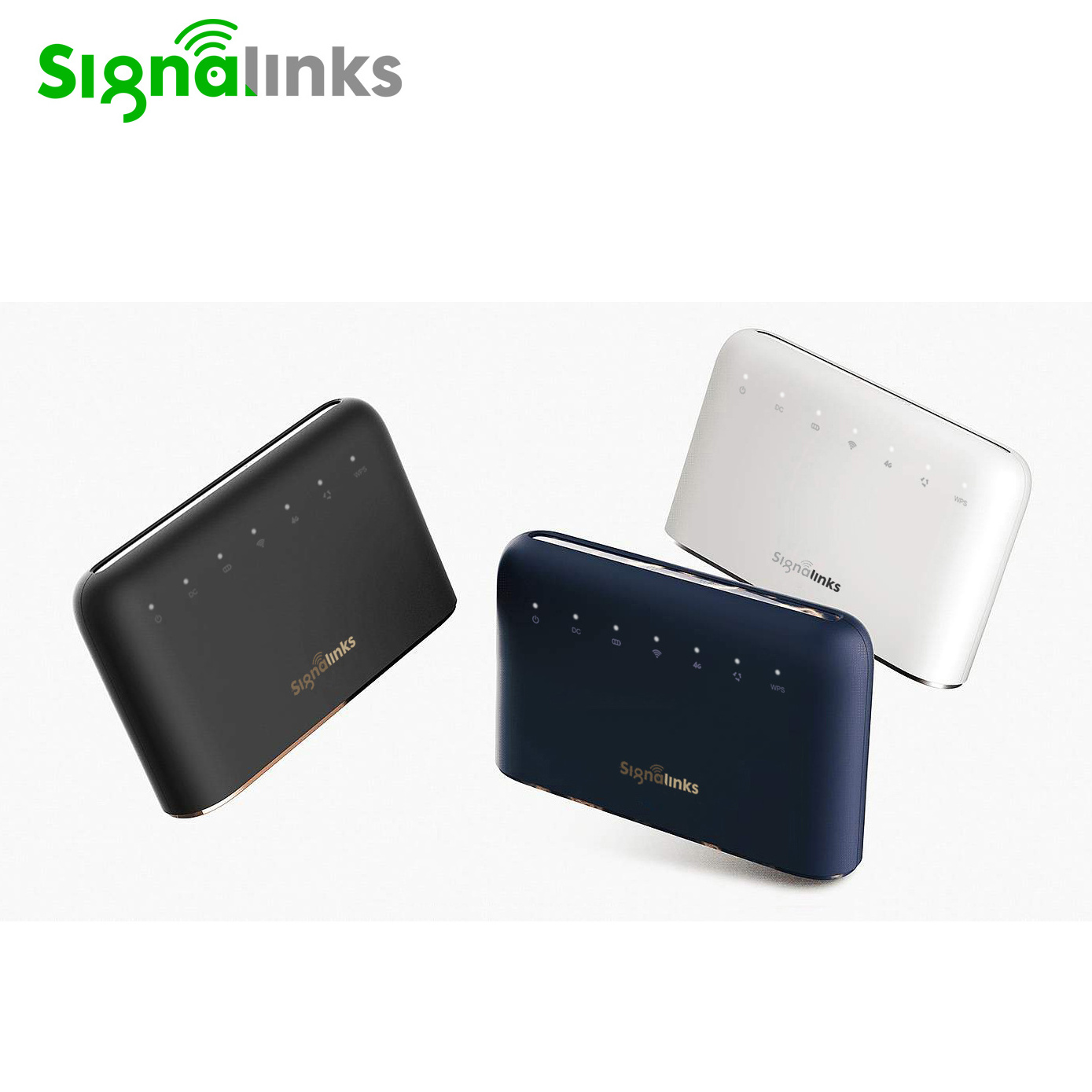

Date:2020-08-23 4G CPE Router specifications
Revision Number:V1.0 |
||
| Category | Spec item | Description |
| Basic Info | Model Name | R109B |
| type | CPE | |
| Dimension | ||
| Weight | 500g | |
| Color | White | |
| Launch time(PP) | Mar.2020 | |
| Air Interface | Technical Standard |
Compatible with WCDMA, FDD-LTE,TDD-LTE
Default 802.11b/g/n |
| Frequency |
LTE:1/2/3/4/5/6/7/8/9/12/13/
17/19/20/25/26/28A/28B/38/39/40/41 WCDMA:B1/2/5/8 |
|
| WIFI | 2.4G, WIFI 2*2 MIMO,802.11 b/g/n,300Mbps | |
| Performance | Maximum Data Throughput |
LTE CAT 4
FDD-LTE(DL/UL) max DL 150Mbps/UL 50Mbps HSPA+ (DL/UL) max DL 21/ UL 5.76Mbps |
| Hardware | Receive Diversity | Support Receive Diversity |
| BB Chipset | ZX297520V3E | |
| WiFi Chipset | RTL8192ES | |
| WiFi Users | 16 | |
| power consumption | <10W | |
| Power Voltage | MICRO USB,DC 5V/2A | |
| SIM card slot |
support 2FF/3FF/4FF SIM card optional
support SIM/USIM/UIM,standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card; push-push SIM slot |
|
| Display | LED indicators | |
| Antenna |
2 internal WIFI antenna;2 internal LTE antenna;
support external antennas |
|
| Buttons | Reset,WPS,Power | |
| Ethernet | 4 WAN/LAN, 10MBase/100MBase/ automatic adaptive port | |
| RJ11 | YES | |
| Reset | Pin-hole | |
| ESD | ESD Protection circuit;Contact±8KV,Air±10KV | |
| Battery | optional (4000mAh) | |
| Software | SW Update | FOTA( if need) |
| WIFI Mode | AP/STATION mode | |
| WIFI Security | OPEN & WPA-PSK& WPA2-PSK | |
| SMS & Phone Book | YES | |
| UPnP | optional | |
| Voice | Support | |
| IPv4 | Support | |
| IPv6 | Support | |
| Firewall | Mac/IP address filter, Port forwarding, WiFi Black/Whilte list | |
| Data Statistics | Support | |
| VPN Pass Through | Support | |
| SIM Lock | Support | |
| HTTP | Support | |
| DMZ | Support | |
| Environment | Operating Temperature | Normal:-10°C to +65°C; |
| Storage Temperature | -20° C to +85° C | |
| Humidity | 5%~ 95% | |
