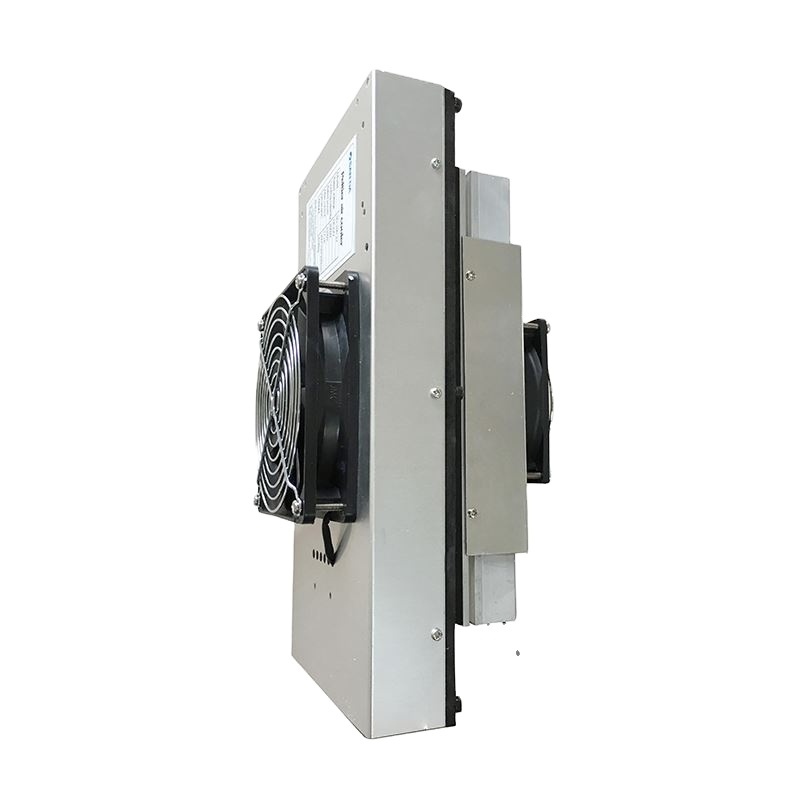

Thermoelectric Peltier Air Conditioner Assembly

Thermoelectric cabinet coolers are the ideal solution to cool and remove heat from small cabinets, control panels and consoles. It's technology and design make them especially suitable for harsh environments like food industry or traffic engineering.  The cabinet coolers utilize solid state peltier technology and can be operated in vertical orientation. Separation of internal air circulation and ambient external air flow and a hermetical seal at the flange guarantee protection class IP55.

Cooling capacities range from 20 to 400 W (can be customize)

The thermoelectric dehumidifiers create a local condensation surface,  collect and optionally dispose of the condensate to the outside of a cabinet. Condensation causes corrosion and malfunction of electrical switchgear.

1. The hot side of the thermoelectric cooler is mounted on the outside of the box

2. Use four M4 screws with flat washers to lock and  fix the air cooler;

3. Products need to be installed vertically(Heat sink fin is vertical;

4. Avoid to external shock and damage.

Fan blades and heat sink need to be kept clean to reduce the risk of heatsink overheating and

cooling power decrease.

Thermoelectric cooler can be widely developed for enclosed area climate control such as telecom outdoor cabinet, battery cabinet, industry control cabinet, precision instrument, telecommunication parts, medicine equipment, military equipment , etc .
