1. The measurement accuracy meets the level 1 accuracy standard in IEC62053-21.
2. Modbus-RTU communication protocol.
3. Simultaneously measure the bidirectional electrical parameters of two circuits, including voltage, current, power..
4. 1-way TTL communication interface, compatible with 5V/3.3V.
5. Can be used with on-board CT and external lead-type CT.
6. Product features can be customized as needed.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JSY
-
Model Number:
-
JSY-MK-194T
-
Operating Temperature:
-
-20~+60℃
-
Dimensions:
-
68.5*25.5*33.5mm
-
Product name:
-
Wide-range embedded energy metering module
-
Voltage measurement range:
-
1-300V
-
Current measurement range:
-
20mA-50A
-
measurement accuracy:
-
Voltage, current, power: ±1.0%; active power level 1
-
input resistance:
-
Voltage channel>1KΩ/V
-
Power supply:
-
DC single power supply 5V power supply, power consumption 10mA
-
Interface Type:
-
TTL communication interface
-
Protocol:
-
MODBUS-RTU protocol
-
Data Format:
-
Software can set "n,8,1", "e,8,1", "o,8,1", "n,8,2"
-
Temperature drift:
-
5-95%, no condensation (at 40℃)
Quick Details
-
Measuring Current Range:
-
20mA-50A
-
Measuring Voltage Range:
-
1-300V
-
Accuracy Class:
-
±1.0%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JSY
-
Model Number:
-
JSY-MK-194T
-
Operating Temperature:
-
-20~+60℃
-
Dimensions:
-
68.5*25.5*33.5mm
-
Product name:
-
Wide-range embedded energy metering module
-
Voltage measurement range:
-
1-300V
-
Current measurement range:
-
20mA-50A
-
measurement accuracy:
-
Voltage, current, power: ±1.0%; active power level 1
-
input resistance:
-
Voltage channel>1KΩ/V
-
Power supply:
-
DC single power supply 5V power supply, power consumption 10mA
-
Interface Type:
-
TTL communication interface
-
Protocol:
-
MODBUS-RTU protocol
-
Data Format:
-
Software can set "n,8,1", "e,8,1", "o,8,1", "n,8,2"
-
Temperature drift:
-
5-95%, no condensation (at 40℃)
JSY-MK-194T Ac Multi-Function Electric Energy Metering Power Monitor Single Phase Bidirectional Meter Energy Meter Module
Products Description
JSY-MK-194T Power Meter Module Introduce

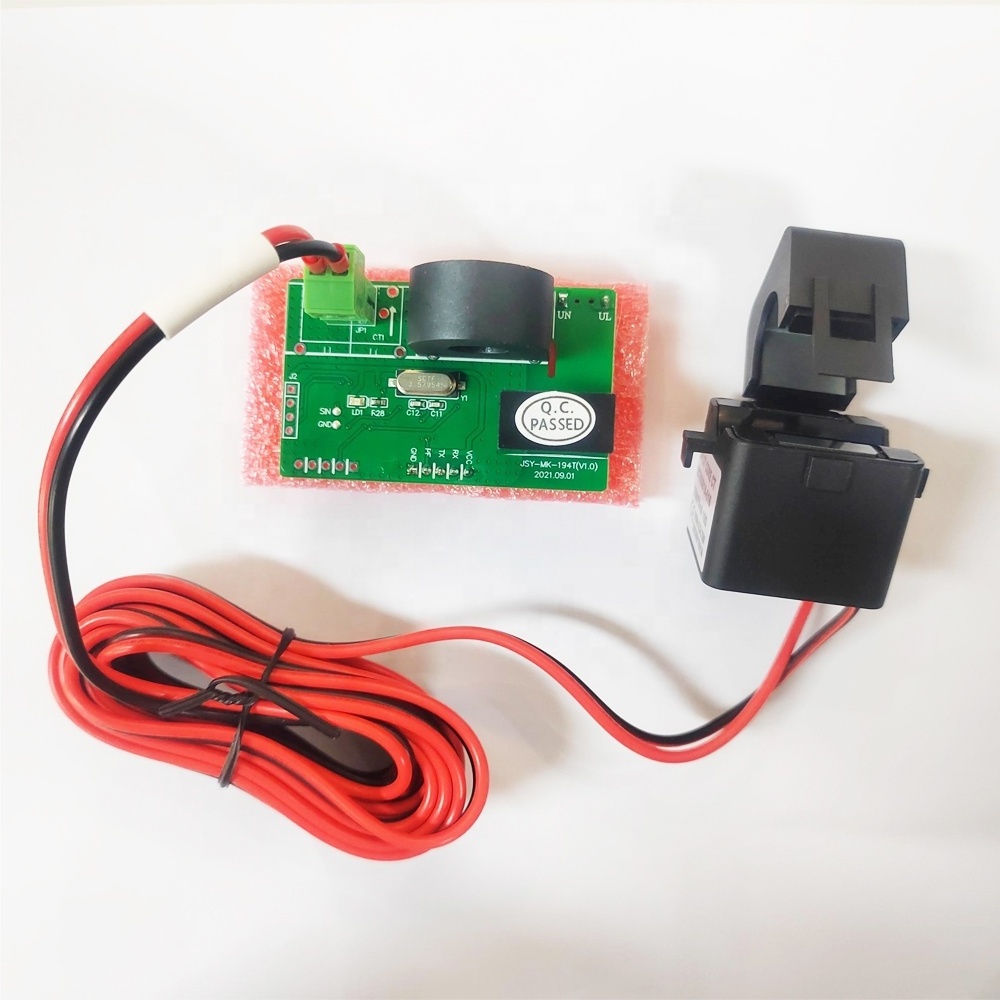

JSY-MK-194T single-phase two-way electric energy metering module is a single-phase AC parameter measurement product that can complete electric energy measurement, collection and transmission with highly integrated measurement and digital communication technology, and can accurately measure two single-phase AC voltage, current, power, power factor, Frequency, power and other electrical parameters, 1 channel TTL interface, completely isolated circuit, small size, simple interface, can be easily embedded in various equipment that needs to measure power consumption, it has excellent cost performance.
JSY-MK-194T single-phase two-way electric energy metering module can be widely used in energy-saving transformation, new energy charging pile, electric power, communication, railway, transportation, environmental protection, petrochemical, steel and other industries to monitor the current and power consumption of AC equipment.
JSY-MK-194T single-phase two-way electric energy metering module can be widely used in energy-saving transformation, new energy charging pile, electric power, communication, railway, transportation, environmental protection, petrochemical, steel and other industries to monitor the current and power consumption of AC equipment.
JSY-MK-194T Power Meter Module
Description
Specifications
|
Measured parameters:
|
|
|
|
|
||||
|
Product model:
|
JSY-MK-194T
|
|
|
|
||||
|
Voltage range:
|
AC 1-300V ±0.5%F.S
|
|
|
|
||||
|
Current range：
|
AC 20mA-50A ±0.5%F.S
|
|
|
|
||||
|
Voltage resolution:
|
0.01V
|
|
|
|
||||
|
Current resolution:
|
0.01A
|
|
|
|
||||
|
Active power：
|
IEC62053-21 classes 1 Units 1W
|
|
|
|
||||
|
Electric energy：
|
IEC62053-21 classes 1 Units 0.01kWh
|
|
|
|
||||
|
Communication parameter
|
|
|
|
|
||||
|
Interface type:
|
TTL 3.3V/5V (default 3.3V)
|
|
|
|
||||
|
Communication protocol:
|
Modbus-RTU
|
|
|
|
||||
|
Data format：
|
N,8,1
|
|
|
|
||||
|
Communication bps:
|
Default 4800bps
|
|
|
|
||||
|
Mailing address:
|
Default correspondence address No. 1
|
|
|
|
||||
|
Product performance
|
|
|
|
|
||||
|
Product power consumption:
|
Less than 10mA
|
|
|
|
||||
|
Power supply:
|
DC 3.3V/5V
|
|
|
|
||||
|
Work environment：
|
-20~+60℃
|
|
|
|
||||
