Quick Details
-
Brand Name:
-
SunriseTek
-
Model Number:
-
MPK2 Series
-
Work Time (h):
-
24
-
Certificate:
-
CE, RoHS, ISO
-
Warranty:
-
2 years
-
Product name:
-
PWM SOLAR CONTROLLER
-
Display:
-
LCD Screen
-
SIZE:
-
Contact us
-
Weight:
-
Customziation
-
Keywords:
-
Charger Controller
-
Function:
-
Light + Time Control
-
Protection:
-
Short Circuit
-
Feature:
-
High Efficiency Charging Method
-
Color:
-
Customized Color
-
Working Temperature( C):
-
-20℃~+50℃
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Wind Controller, Collector Controller, Water Heater Controller, Solar Working Station, Lighting Controller, Thermal Controller, Voltage Controller, Solar System Controller
-
Place of Origin:
-
China
-
Brand Name:
-
SunriseTek
-
Model Number:
-
MPK2 Series
-
Work Time (h):
-
24
-
Certificate:
-
CE, RoHS, ISO
-
Warranty:
-
2 years
-
Product name:
-
PWM SOLAR CONTROLLER
-
Display:
-
LCD Screen
-
SIZE:
-
Contact us
-
Weight:
-
Customziation
-
Keywords:
-
Charger Controller
-
Function:
-
Light + Time Control
-
Protection:
-
Short Circuit
-
Feature:
-
High Efficiency Charging Method
-
Color:
-
Customized Color
-
Working Temperature( C):
-
-20℃~+50℃
Product Description
1.Original solar controller factory with 20 years history
2.Excellent cost performance
3.Product customization supported
4.High-quality raw materials for production
5.100% inspection for all functions before delivery
6.Responsible after-sales service
CLICK HERE TO GET MORE DETAILS OF PRODUCTS>>>
2.Excellent cost performance
3.Product customization supported
4.High-quality raw materials for production
5.100% inspection for all functions before delivery
6.Responsible after-sales service
CLICK HERE TO GET MORE DETAILS OF PRODUCTS>>>
|

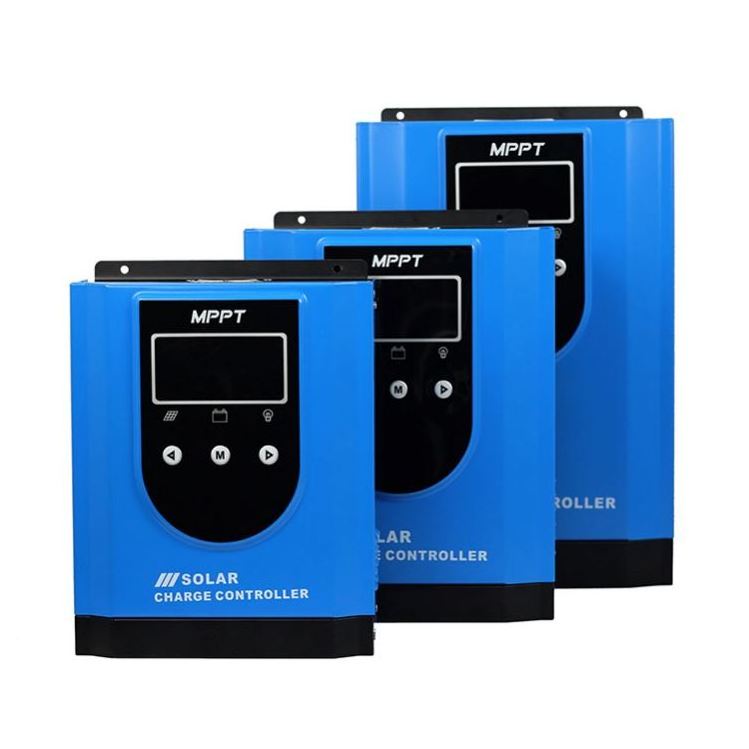

Model
|
MPK2-40
|
|
MPK2-60
|
|
MPK2-80
|
|
||||||
|
INPUT
|
|
|
|
|
|
|
||||||
|
Maximum PV open circuit voltage
|
150V (at the lowest temperature)
138V (at standard temperature of 25℃) |
|
|
|
|
|
||||||
|
Minimum PV voltage
|
20V/40V/60V/80V
|
|
|
|
|
|
||||||
|
Rated charge current
|
30A
|
40A
|
50A
|
60A
|
80A
|
100A
|
||||||
|
OUTPUT
|
|
|
|
|
|
|
||||||
|
System voltage
|
12V/24/36/48V auto
|
|
|
|
|
|
||||||
|
Rated discharge current
|
15A
|
20A
|
25A
|
30A
|
40A
|
50A
|
||||||
|
Own consumption
|
≤35mA
|
|
|
|
|
|
||||||
|
MPPT highest accuracy
|
99%
|
|
|
|
|
|
||||||
|
Maximum charging efficiency
|
97%
|
|
|
|
|
|
||||||
|
Charging control mode
|
Multi-stage (MPPT, Absorption, Float, Equalization, CV)
|
|
|
|
|
|
||||||
|
Float charge
|
13.8V/27.6V/41.4V/55.2V
|
|
|
|
|
|
||||||
|
Absorption charge
|
14.4V/28.8V/43.2V/57.6V
|
|
|
|
|
|
||||||
|
Equalization charge
|
14.6V/29.2V/43.8V/58.4V
|
|
|
|
|
|
||||||
|
Load disconnection (LVD)
|
10.8V/21.6V/32.4V/43.2V
|
|
|
|
|
|
||||||
|
Load reconnection (LVR)
|
12.6V/25.2V/37.8V/50.4V
|
|
|
|
|
|
||||||
|
Load control mode
|
Normal, light control, light and timing control, timing control, reverse light control
|
|
|
|
|
|
||||||
|
Light control point voltage
|
5V/10V/15V/20V
|
|
|
|
|
|
||||||
|
Battery type
|
GEL, SLD, FLD AND USR (default), LifePO4, Lithium batteries customization
|
|
|
|
|
|
||||||
|
OTHER
|
|
|
|
|
|
|
||||||
|
Human interface
|
LCD with backlight, 3 buttons
|
|
|
|
|
|
||||||
|
Cooling mode
|
AL alloy heat sink and cooling fan
|
|
|
|
|
|
||||||
|
Wiring
|
High current copper terminal ≤25mm2 (3AWG)
|
|
|
|
|
|
||||||
|
Temperature probe
|
Line length 3m
|
|
|
|
|
|
||||||
|
Communication mode
|
RS485, RJ45 port
|
|
|
|
|
|
||||||
|
Working temperature range
|
-20 ~ +55 ℃
|
|
|
|
|
|
||||||
|
Storage temperature range
|
-30 ~ +80 ℃
|
|
|
|
|
|
||||||
|
Humidity
|
10% - 90% no condendation
|
|
|
|
|
|
||||||
|
Product Size
|
250*190*95mm
|
|
280*210*100mm
|
|
350*230*112mm
|
|
||||||
|
Product Weight
|
2.3kg
|
|
3.5kg
|
|
4.6kg
|
|
||||||
|
Note: Please operate at the ambient temperature allowed by the controller. If the ambient temperature exceeds the allowable range
of the controller, please derate it |
|
|
|
|
|
|
||||||
Major Functions: MPPT Solar Charger Controller
* High efficiency MPPT charging
* MPPT efficiency > 99%, peak conversion efficiency >98%
* 12/24V auto work
* PV input: 100V
* Multi-stages charging mode ( MPPT, absorption, float, equalization)
* High efficiency MPPT charging
* MPPT efficiency > 99%, peak conversion efficiency >98%
* 12/24V auto work
* PV input: 100V
* Multi-stages charging mode ( MPPT, absorption, float, equalization)
