Quick Details
-
Brand Name:
-
JINGHUA
-
Standard or Nonstandard:
-
Standard
-
Ball:
-
Chromed and polished brass
-
Stem:
-
Brass
-
Body:
-
Brass
-
Bonnet:
-
Brass
-
Seat:
-
PTFE
-
Packing gland:
-
PTFE
-
Gland nut:
-
PTFE
-
Handle nut:
-
Steel
-
Handle:
-
steel
Quick Details
-
Port Size:
-
1/2''-4''
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
705
-
Brand Name:
-
JINGHUA
-
Standard or Nonstandard:
-
Standard
-
Ball:
-
Chromed and polished brass
-
Stem:
-
Brass
-
Body:
-
Brass
-
Bonnet:
-
Brass
-
Seat:
-
PTFE
-
Packing gland:
-
PTFE
-
Gland nut:
-
PTFE
-
Handle nut:
-
Steel
-
Handle:
-
steel

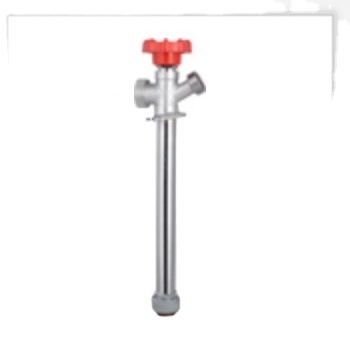

PUSH X HOSE NON-FREEZE HYDRANT ANTI-SIPHON VALVE QUARTER TURN
various choices of the surface(lead free)(hot)
-------------------------------------------------------------------------------------------------------------------------------
1. Brass Material
• MS58,MS59
• CW617
• CW602N,CZ132
• Lead free brass
| PART | SPECIFICATION |
| Nut | Steel with plated |
| Handle | Steel with Chrome or Zinc plating |
| Stem |
Brass ASTM B124-C3700 or ASTM B16-C36000 |
| Ball |
Brass ASTM B124-C3700 or ASTM B16-C36000 with hard Chrome plating |
| Body & Cap | Brass(ASTM B124-C37700) |
| Gland | Brass(ASTM B124-C37700) |
| Seats | Teflon®(PTFE) |
| Packing | export carton |
--------------------------------------------------------------------------------------------------------------------------------------------------------------
2. Size
3/8" , 1/2" , 3/4" , 1" , 1 1/4" , 1 1/2" , 2" , 3" , 4"
|
Size/ Model |
φD | φE | L | C | H(ref) | A(ref) |
| 1/2" | 14.8 | 16.4 | 53.5 | 14.5 | 49.6 | 90 |
| 3/4" | 19 | 22.5 | 64.5 | 16 | 55.3 | 100 |
| 1" | 24 | 30 | 81.5 | 19 | 64 | 122 |
-------------------------------------------------------------------------------------------------------------------------------
3. Surface
Yellow brass color
Nickel plated
Chrome plated
--------------------------------------------------------------------------------------------------------------------------------
4.description
nominal pressure: PN≤1.6MPa
Applicable media: water,oil,gas
Thread standard: 55° inch system G pipe thread
Thread: ISO228 ( Equivalent to DIN259 and BS2779) or NPT
Min and Max working temperature : -20<-120°c
----------------------------------------------------------------------------------------------------------------------------------------------------------------
5. Certification
CE, ISO9001:2000
----------------------------------------------------------------------------------------------------------------------------------------------------------------
6. Guaranty
1 Year Guaranty
----------------------------------------------------------------------------------------------------------------------------------------------------------------
7. Features
1. High quality.
2. Compact and optimized structure.
3. Good price with professional service.
4. Full type of items.
5. Customized service.
6. Prompt delivery time.
----------------------------------------------------------------------------------------------------------------------------------------------------------------
• Product Photo
• Certificate
• Handle for choice
• Material Options
• Production Environment
Quality First, Credit Based
