Quick Details
-
Model Number:
-
PL-55Q2
-
Weight:
-
46.4KG
-
Packing Dimension:
-
1375*185*900(mm)
-
Product Dimension:
-
1278*783*100(mm)
-
Brightness:
-
300cd/m2
-
Power consumption:
-
"Maximun< 250W Standby Mode<0.5W"
-
Glass surface:
-
4mm Tempered glass with Anti-glare
-
Unit Dimension (mm):
-
1278*783*100(mm)
-
Packing Dimension (mm):
-
1375*185*900(mm)
-
Chipset CPU:
-
Intel Core i3 /i5 /i7 (optional)
-
RAM:
-
DDR3 / DDR4 (optional)
-
SSD:
-
128G or 256G (optional)
-
product name:
-
Smart Board Price For Kids Education School Writing Whiteboard
Quick Details
-
Panel Size:
-
55inches
-
Place of Origin:
-
China
-
Brand Name:
-
Heymi
-
Model Number:
-
PL-55Q2
-
Weight:
-
46.4KG
-
Packing Dimension:
-
1375*185*900(mm)
-
Product Dimension:
-
1278*783*100(mm)
-
Brightness:
-
300cd/m2
-
Power consumption:
-
"Maximun< 250W Standby Mode<0.5W"
-
Glass surface:
-
4mm Tempered glass with Anti-glare
-
Unit Dimension (mm):
-
1278*783*100(mm)
-
Packing Dimension (mm):
-
1375*185*900(mm)
-
Chipset CPU:
-
Intel Core i3 /i5 /i7 (optional)
-
RAM:
-
DDR3 / DDR4 (optional)
-
SSD:
-
128G or 256G (optional)
-
product name:
-
Smart Board Price For Kids Education School Writing Whiteboard
Products Description
|

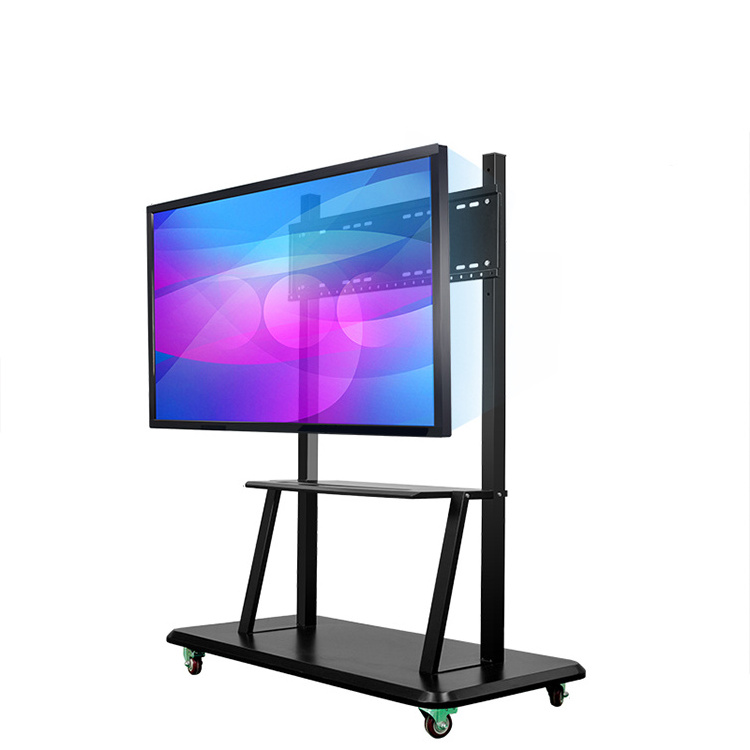

INTERACTIVE WHITEBOARD/SMART BOARD
|
|
|
|
|
||||
|
Model
|
PL-55Q2
|
PL-65Q2
|
PL-75Q2
|
PL-86Q2
|
||||
|
Backlight
|
LED
|
|
|
|
||||
|
Panel Brand
|
BOE/LG
|
|
|
|
||||
|
Screen size (diagonal)
|
55"
|
65"
|
75"
|
86"
|
||||
|
Active area (mm)
|
1209.6*680.4
|
1428.48*803.52
|
1650.24*928.26
|
1913.0*1084.0
|
||||
|
Aspect Ratio
|
16:9
|
|
|
|
||||
|
Resolution
|
3840*2160
|
|
|
|
||||
|
Colors
|
1.07 billion colors
|
|
|
|
||||
|
Brightness
|
300cd/m2
|
350cd/m2
|
350cd/m2
|
350cd/m2
|
||||
|
Interface
|
Front Side:USD2.0*1，USB3.0*1，TOUCH USB*1，HDMI*1 Rear Side: RS232*1,EARPHONE OUT*1,RJ45*1,PC Audio*1,VGA*1,COAX*1,AV
in*1,YPBPR*1,AV out*1,DP*1,HDMI in*2,Touch USB*1, USB2.0*2,USB3.0*1,TF*1 |
|
|
|
||||
|
Outputs (Speakers)
|
10W x 2
|
|
|
|
||||
|
Wall Bracket
|
YES
|
|
|
|
||||
|
Input Voltage
|
100-240V AC
|
|
|
|
||||
|
Power consumption
|
Maximun< 250W
Standby Mode<0.5W |
Maximun< 250W
Standby Mode<0.5W |
Maximun< 300W
Standby Mode<0.5W |
Maximun< 450W
Standby Mode<0.5W |
||||
|
TOUCH PANEL
|
|
|
|
|
||||
|
Glass surface
|
4mm Tempered glass with Anti-glare
|
|
|
|
||||
|
Touch supported
|
IR touch,20points touch,10 points writing
|
|
|
|
||||
|
Writing tools
|
Pen or finger
|
|
|
|
||||
|
Response Time
|
7ms
|
|
|
|
||||
|
Cursor speed
|
125points/s
|
|
|
|
||||
|
Precision
|
2mm
|
|
|
|
||||
|
Front button
|
Power
|
|
|
|
||||
|
Wi-Fi
|
Integrated
|
|
|
|
||||
|
Android System
|
CPU: Quad-Core A55 1.9GHz ,GPU:Mali-G31 MP2 Android 9.0, Ram 2G DDR3, Rom 16G. (Option:4G+32G)
|
|
|
|
||||
|
Software
|
White board Software,Annotation Software
|
|
|
|
||||
|
Screen hot key support
|
Yes
|
|
|
|
||||
|
OPS Slot
|
Yes
|
|
|
|
||||
|
Panel Life Expectancy
|
30,000 Hours
|
|
|
|
||||
|
Accessories
|
Manual, Touch Pen, Remote Control,Power cable.
|
|
|
|
||||
|
VESA Hole (mm)
|
400*300
|
400*300
|
600*500
|
600*600
|
||||
|
Unit Dimension (mm)
|
1278*783*100
|
1497*906*100
|
1722*1032*104
|
1964*1168*104
|
||||
|
Packing Dimension (mm)
|
1375*185*900
|
1580*185*1025
|
1865*230*1195
|
2110*230*1340
|
||||
|
Net Weight (kg)
|
46.4
|
46.4
|
60
|
79
|
||||
|
Gross Weight (kg±2)
|
58.3
|
58.3
|
76
|
98
|
||||
|
OPS (windows system)
|
|
|
|
|
||||
|
Chipset CPU
|
Intel Core i3 /i5 /i7 （optional）
|
|
|
|
||||
|
RAM
|
DDR3 / DDR4 （optional）
|
|
|
|
||||
|
SSD
|
128G or 256G （optional）
|
|
|
|
||||
|
Graphic
|
Inter HD video
|
|
|
|
||||
|
Wireless
|
support wifi
|
|
|
|
||||
|
Interface
|
USB2.0*4,USB3.0*2,VGA*1,HDMI*1,RJ45×1,WIFI ANTENNA*2,EARPHONE OUT*1,MIC-IN*1,POWER*1
|
|
|
|
||||
|
OS
|
Windows 7/ Windows XP/ Windows 2000 / Vistal / Linux UNIX / Windows 8.1(X86)/ Windows 10 (Optional)
|
|
|
|
||||
|
Remark
|
OPS is optional and have different configuration, you can check our seperate OPS price list for your reference.
|
|
|
|
||||
FAQ
1. Q: Are you a manufacturer or trading company?
A: We are a manufacturer who has been specializing in producing LCD displays for years.
2. Q: How does your factory do regarding quality control?
A: Quality is a priority. We always attach great importance to quality controlling from the very beginning to the very end.
We focus on every detail, Our factory has gained ISO9001, CE, RoHS authentication.
3. Q: What is your after-sale service?
A: We offer 1 year 100% guarantee on our product.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantities.
5. Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size and quantities of your order.
