- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Omenfirst
-
Model Number:
-
NF1024K-P16-2S-I, NF1024K-16L-2S-I
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
16 GE 2 SFP Full Gigabit Industrial POE Switch
-
Fixed port:
-
16*10/100/1000Mbps RJ45 adaptive port;2*1000Mbps SFP
-
Bandwidth:
-
10G
-
Degree of protection:
-
IP40 slim type metal case
-
Installation:
-
Installation
-
Operating temperature:
-
- 40~85 ° C
-
MAC Address:
-
4K
-
External dimensions:
-
165*145*45mm
-
Power supply:
-
DC10~52V (dual power redundancy backup)
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
32G
-
Brand Name:
-
Omenfirst
-
Model Number:
-
NF1024K-P16-2S-I, NF1024K-16L-2S-I
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
16 GE 2 SFP Full Gigabit Industrial POE Switch
-
Fixed port:
-
16*10/100/1000Mbps RJ45 adaptive port;2*1000Mbps SFP
-
Bandwidth:
-
10G
-
Degree of protection:
-
IP40 slim type metal case
-
Installation:
-
Installation
-
Operating temperature:
-
- 40~85 ° C
-
MAC Address:
-
4K
-
External dimensions:
-
165*145*45mm
-
Power supply:
-
DC10~52V (dual power redundancy backup)
|
Please Inquire For Batch Price
Support customization and overseas order allocation
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||

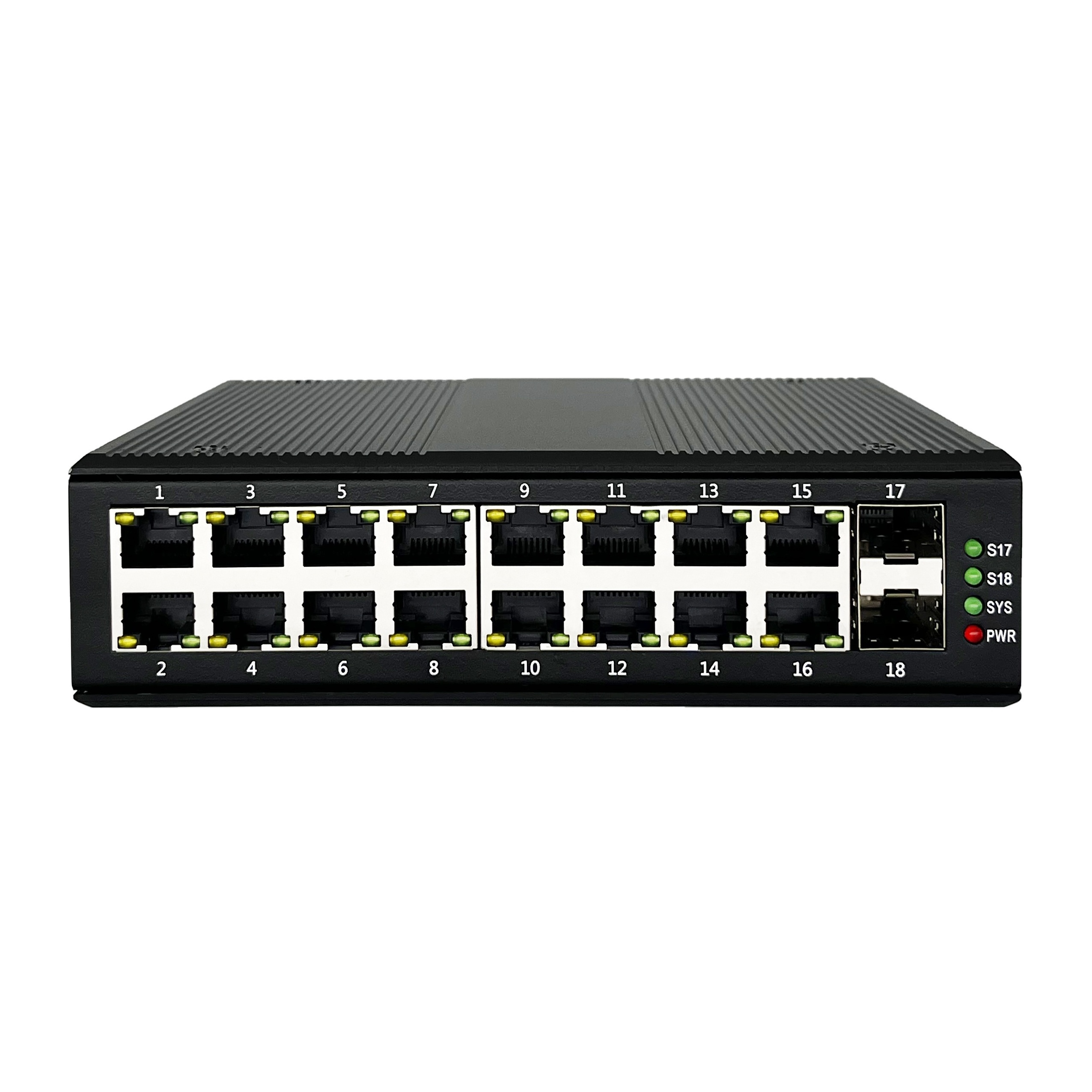

16 GE 2 SFP Full Gigabit Industrial POE Switch
16*1000Mbps POE+2*1000Mbps SFP
Product parameters
|
Product name
|
16 GE 2 SFP Full Gigabit Industrial POE Switch
|
|
Model
|
NF1024K-P16-2S-I
|
|
Ports
|
16*10/100/1000Mbps RJ45 adaptive port
2*1000Mbps SFP |
|
POE Ports
|
1-16
|
|
Network Protocol
|
EEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; IEEE802.3af/at |
|
RJ45 port
|
10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive
|
|
Optical port
|
1000BaseFX port (SC/FC/ST/SFP optional)
|
|
Twisted pair
|
10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
|
optical cable
|
Multimode: 850nm 0-550M 1310nm 0-2KM
Single mode: 1310nm 0 ～ 40KM 1550nm 0 ～ 120KM |
|
Switch Properties
|
Total backplane bandwidth: 10Gbps
Whole machine packet forwarding rate: 14.88Mpps MAC table: 4K Packet buffer: 4M Delay time:<4 μ s Exchange mode: store forward |
|
Degree of protection
|
IP40 slim type metal case
|
|
LED indicators
|
Power: PWR
Interface indicator: electrical port, optical port (Link/ACT) |
|
Power Supply
|
Input voltage: DC10~52V (dual power redundancy backup)
Access terminal: Phoenix terminal Support dual power redundancy Support built-in overcurrent 4.0A protection Support reverse connection protection |
|
work environment
|
Operating temperature: - 40~85 ° C (- 40~185 ° F)
Storage temperature: - 40~85 ° C (- 40~185 ° F) Relative humidity: 5%~95% (no condensation) |
|
Industry standards
|
EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS : IEC (EN) 61000-4-2 (ESD): ± 8kV contact discharge, ± 15kV air discharge IEC(EN)61000-4-3(RS):10V/m(80～1000MHz) IEC (EN) 61000-4-4 (EFT): power line: ± 4kV; Data line: ± 2kV IEC (EN) 61000-4-5 (Surge): power line: ± 4kV CM/± 2kV DM; Data line: ± 2kV IEC (EN) 61000-4-6 (RF conduction): 3V (10kHz ～ 150kHz), 10V (150kHz ～ 80MHz) IEC (EN) 61000-4-16 (common mode conduction): 30V cont. 300V, 1s IEC(EN )61000-4-8 Shock：IEC 60068-2-27 Freefall：IEC 60068-2-32 Vibration：IEC 60068-2-6 |
|
Mechanical properties
|
Housing: metal
Installation: Installation Size（L*W*H）:165*145*45mm 295*204*89mm Weight:0.94kg/1.13kg |
|
Mean time between failures
|
300000 hours
|
|
|
Federal Communications Commission (FCC) 声明：This equipment has been tested and found to comply with the limits for a class A
computing device pursuant to Subpart J of part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. |
ALL ALUMINUM ALLOY HOUSING
Redundant power supply, anti surge design, industrial grade components, high-strength lightning protection
Q1.Can we get a sample?
Yes,but we need to charge for samples,we will return sample fee in later order.
Q2.Can you offer a better price?Any discount?
Yes ,price is not a problem,more quantity more attractive price.
Q3.Do you have MOQ?
Depending on the situation, please consult customer service for details.
Q4.OEM,ODM Severice is available?
Yes,Powelink provide good OEM/ODM service to our customers.
Q5.Can you take care for the shipment?
We will organize and schedule all shipping to your office if you want.
Q6.Lead time?
Sample order, 3-15 works days,bulk order, 7-30 work days after geting deposit.
Q7.What is your warranty period?
Warranty period is 12 months.
This warranty does not cover damage caused by man-made damage,improper care ,negligence,normal wear tear,and force majeure such as
natural disasters,earthquakes,fires ,etc.
