Large Capacity automatic roti chapati pita lavash bread tortilla making machine for sale

Large Capacity automatic roti chapati pita lavash bread tortilla making machine for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $8500

≥2 Sets

US $8000

≥3 Sets

US $7500

≥5 Sets

US $7300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 23kw

Dimension(L*W*H):: 17000*1200*1800mm

Weight:: 900 KG, 4800kg

Marketing Type:: Hot Product

Usage:: tortilla

After-sales Service Provided:: Engineers available to service machinery overseas

Power Source:: Electric

Name:: cake pie production line

Function:: pie filling production line

Pressure range:: 0.8-1Mpa

the weight of the products:: 50-200g/one

Thoughput:: 2000-6000/hour

Quick Details

Place of Origin:: Anhui, China

Brand Name:: SSS

Voltage:: 380V/220V, 380V

Power:: 23kw

Dimension(L*W*H):: 17000*1200*1800mm

Weight:: 900 KG, 4800kg

Marketing Type:: Hot Product

Usage:: tortilla

After-sales Service Provided:: Engineers available to service machinery overseas

Power Source:: Electric

Name:: cake pie production line

Function:: pie filling production line

Pressure range:: 0.8-1Mpa

the weight of the products:: 50-200g/one

Thoughput:: 2000-6000/hour

Product Description

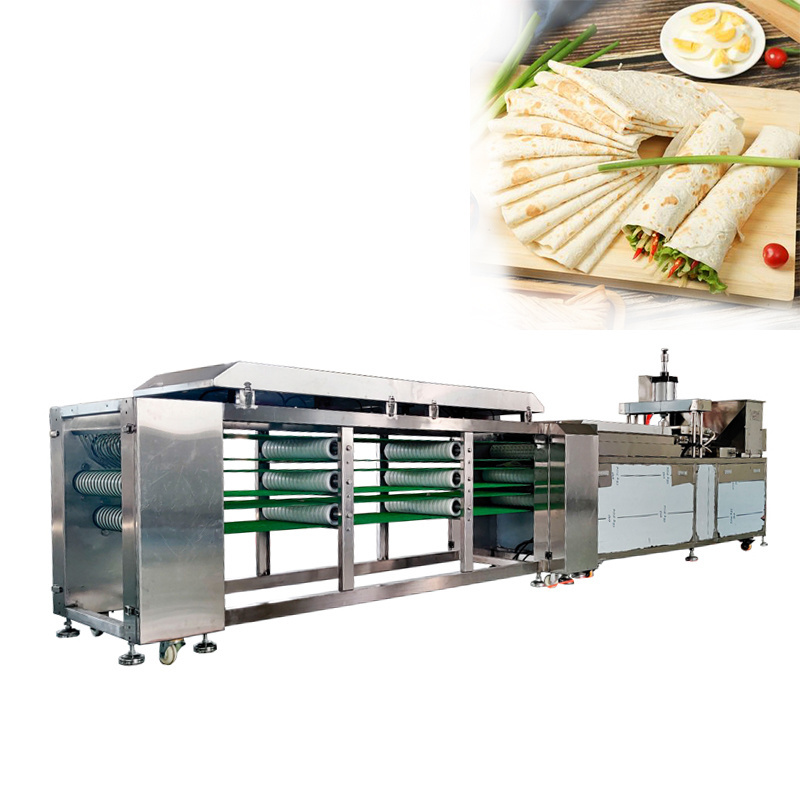

Automatic Bread Machine Tortilla Making Machine

Corn Flour Chapati Producing Machine Roti Production Line

Main features: This machine adopts PLC Control and touch screen memory function, use international famous brand of electrical components to ensure stable performance and convenient maintenance.

Scope of application: The machine is suitable to make tortilla wraps, chapati ,roti, flat pancake and all kind of thin flat round bread ,made of stainless steel, stable performance and wearable. Bread size and thickness is adjustable. Baking time and speed be adjusted.

Model	BP400 (Components：Head unit •Press •Oven •3-Layer S Shape Cooler)
Heating method	Electric
Hot Press Plate size	350*450 mm
Power supply	380V/ three Phase/ 50-60Hz 21KW
Eletrical consumption	2.6kW/H
Air Pressure	0.8-1.0M/PA
Tortilla Dia.	100-300 mm
Tortilla Thickness	0.5-5 mm
Tortilla per hour	700-1000 pcs
Dimension	49939301482 mm
Teflon belt size	26804500.13/43054500.13
Weight	N.W. :680KG, G.W.: 960KG

Model	Heating method	Hot Press Plate size	Tortilla Size Dia.	Tortilla Thickness	Tortilla per hour
BP400	Electrical	350*450 mm	100-300 mm	0.5-5 mm	700-1000 pcs
BP450			500*500 mm		100-450 mm	600-1000 pcs
BP400-2			350*650 mm		100-300 mm	1400-1800 pcs

Direction for use

1. Well mixed dough is divided into blocks and the dough size can be adjusted.

2. The dough is pressed into a thin-crusted shape when it arrives the bottom of press device and the thickness can be adjusted.

3. The thin-crusted dough is baked on both sides in an oven.

4. After baking process,the thin-crusted dough passes through the three-layer cooling conveyor belt

Scope of application

The machine is suitable to make flour Corn tortilla, chapati, roti cake, and all kind of thin round flat bread. The machine is made of food grade stainless steel, stable performance and wearable, and tortilla size could be customized, tortilla thickness can be adjusted.

Detailed Images

Quality policy : Quality first, refine on processing, strict request, Customer satisfaction.

We are strict to the most with every work we have done and pursue the highest quality.

For every component that comes into contact with food, we use materials that meet hygiene standards.

The machine is made of stainless steel.

Company Introduction

SSS FOOD MACHINERY TECHNOLOGY CO.,LTD. is a leading supplier of food processing machinery in China. We devote ourselves to research and develop the equipment including not only common types but also customized ones, our distinguished advantage is we can produce & design equipment as per your real situation and provide you with flexible solutions.

Our service ranges from design and manufacture to sale as well as consultation. We are mainly specialized in bread processing equipment, fish processing equipment, vegetable & fruit processing equipment etc.

Our senior engineers have more than 20 years' professional experience in the field. Taking advantage of advanced technology and innovative design conception as well as rich experience in food processing machinery, we have been providing the highest level equipment for customers from all over the world. Our main markets are Russia, UK, USA, Brazil, New Zealand, Southeast Asia, Australia and so on.

Over the past years, we have become a long-term supplier for many food companies and helped many fish and food plants establish their production lines. Based on superior quality, competitive price and the best service, we have gained great approval from customers.

Certification

Exhibition

Packing&Shipping

Packing: This machine is packed with film before packing into plywood box, and box is stable and firm enough to adapt all kinds of transportation.
Shipping: we will ship the machine as per custimers' request including by sea, by air, by truck, by train, etc.

After Sales Service

1. Assistance to set up new factory
2. Repair and maintenance if any problem occured in warranty
3. Installation, commissining and training
4. Spare parts and wear parts free or with big discount
5. Any feedback of machines will be lisened and we will try our best to support
6. Other cooperation service
Technology knowledge share
Advice for setting up factory

7. 24/7 online

FAQ

Q: what's the packing of the machine?
A.In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.

Q: What's the payment term?
A.Usually by T/T ( 30% in advance, the balance against the copy of B/L),or L/C at sight.

Q: Can I change the motor as my local voltage?
A.We can change the voltage as your requirement, and there's no extra charge.

Q: How do your control quality?
A.We have an inspection team to check the products at all stages of the manufacturing process.

Q:What is the min order quantity?
A.Our moq is 1 unit, and we can provide you with discount if more units are ordered.
