- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
CSPPM
-
Theory:
-
Inductance Sensor
-
Output:
-
Digital Sensor, High expected 3.2V, can be converted to 0V.
-
Name:
-
Human body sensor switch lamps intelligent
-
Application:
-
Board Mount
-
Output signal:
-
Working voltage
-
Quiescent current:
-
21uA
-
High saturation delay time:
-
2~3600 seconds
-
Induction distance:
-
4~6meters
-
Long-term stability:
-
110 degrees
-
Response delay time:
-
20 seconds after power on
-
Size:
-
16.2mm*1.6mm
Quick Details
-
Use:
-
Humidity Sensor
-
Model Number:
-
PPM-HW-05A
-
Place of Origin:
-
China
-
Brand Name:
-
CSPPM
-
Theory:
-
Inductance Sensor
-
Output:
-
Digital Sensor, High expected 3.2V, can be converted to 0V.
-
Name:
-
Human body sensor switch lamps intelligent
-
Application:
-
Board Mount
-
Output signal:
-
Working voltage
-
Quiescent current:
-
21uA
-
High saturation delay time:
-
2~3600 seconds
-
Induction distance:
-
4~6meters
-
Long-term stability:
-
110 degrees
-
Response delay time:
-
20 seconds after power on
-
Size:
-
16.2mm*1.6mm
Features
1. Integration of PIR probes and conditioning circuits to minimize interference.
2. Someone enters the sensing range and outputs a high level. After leaving the sensing range, the high level delays for a set
time before outputting a low level.
3. High level delay time and sensor sensing distance can be adjusted.
4. The enable port can be used to set the sensor on or off, for example,
light sensitive control can be added.
5. Wide operating voltage range
2. Someone enters the sensing range and outputs a high level. After leaving the sensing range, the high level delays for a set
time before outputting a low level.
3. High level delay time and sensor sensing distance can be adjusted.
4. The enable port can be used to set the sensor on or off, for example,
light sensitive control can be added.
5. Wide operating voltage range
Products Description

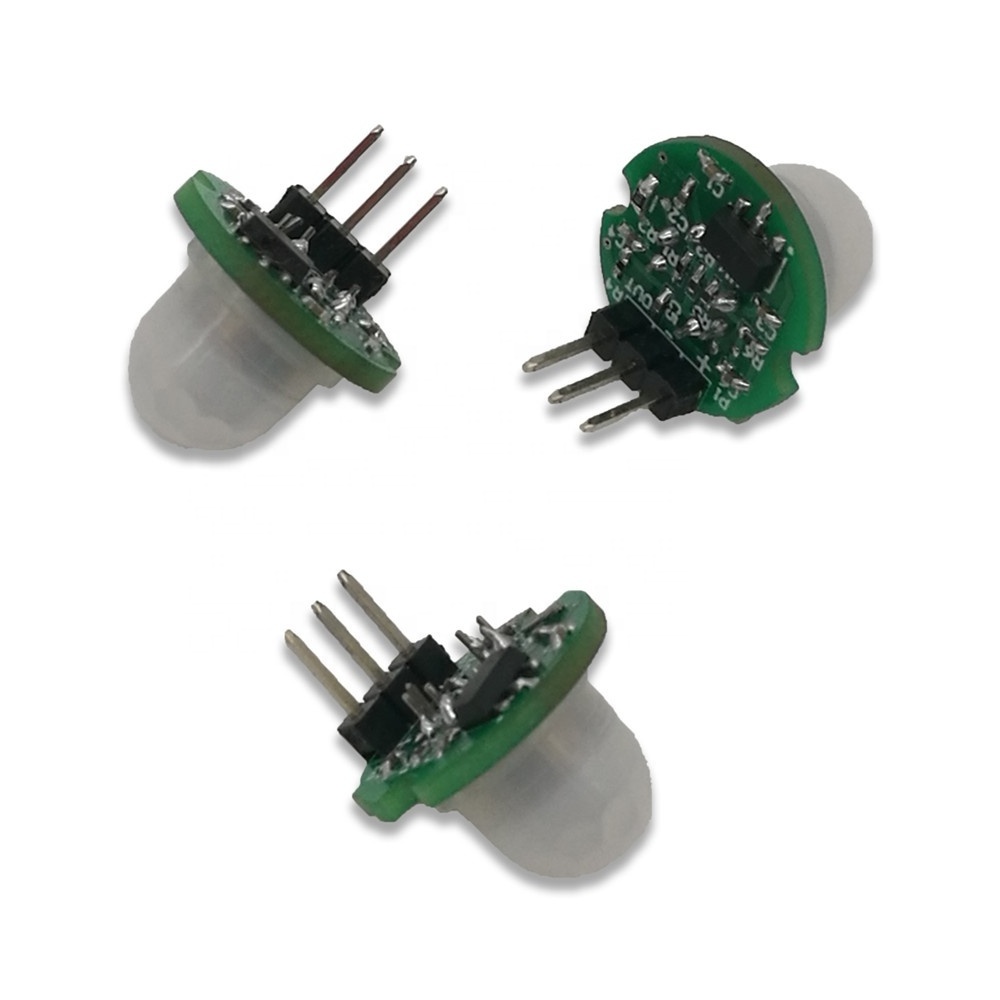

Use intelligent infrared sensor to convert the infrared signal into 15-bit ADC signal and compare it with the set digital threshold to make a human body induction module that can output high and low level signals
Applications
Toys, Digital Photo Frame, TV , Refrigerator, Air-Condition, USB Alarms, PIR Motion Detection, Intruder Detection ,
IOT Sensor, Sense Light, Computer Monitor, Security System , Car Security System, Corridor and Stair Lights etc.
IOT Sensor, Sense Light, Computer Monitor, Security System , Car Security System, Corridor and Stair Lights etc.
Our Advantages
1.Low power consumption
2.Small product
3.Does not emit any type of radiation
4.Low price
Product Paramenters
|
Working voltage
|
DC3.7V-22V
|
|
|
Quiescent current
|
21uA
|
|
|
Output level
|
high level 3.2V, low level 0V.
|
|
|
High level delay time
|
2~3600 seconds
|
|
|
Induction distance
|
4-6 meters
|
|
|
Working temperature
|
-20-+50℃
|
|
|
Induction angle
|
110 degrees
|
|
|
Circuit board size
|
16.2mm×1.6mm
|
|
|
It needs to wait for 20 seconds to work normally after power on, this is the normal warm-up time of infrared sensor
|
|
|
Dimension(unit:mm)
