Quick Details
-
Model Number:
-
DN15-25E
-
Product name:
-
Ultrasonic heat meter
-
Material:
-
Brass Material
-
Size:
-
DN15/20/25
-
Application:
-
Household
-
Communication:
-
M-BUS/RS485
-
Power supply:
-
Battery Powered
-
Packaging Details:
-
Each one in a brown box
-
Port:
-
Qingdao
-
Connection:
-
Thread
Quick Details
-
Type:
-
Ultrasonic meters
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BOSTAR
-
Model Number:
-
DN15-25E
-
Product name:
-
Ultrasonic heat meter
-
Material:
-
Brass Material
-
Size:
-
DN15/20/25
-
Application:
-
Household
-
Communication:
-
M-BUS/RS485
-
Power supply:
-
Battery Powered
-
Packaging Details:
-
Each one in a brown box
-
Port:
-
Qingdao
-
Connection:
-
Thread
|
temperature range
|
4℃~95℃
|
|
Temperature difference
|
3K~60K
|
|
Temperature resolution
|
0.03℃
|
|
power supply
|
3.6V
|
|
Battery Life
|
>2yeas
|
|
LCD
|
8bit
|
Product introduction

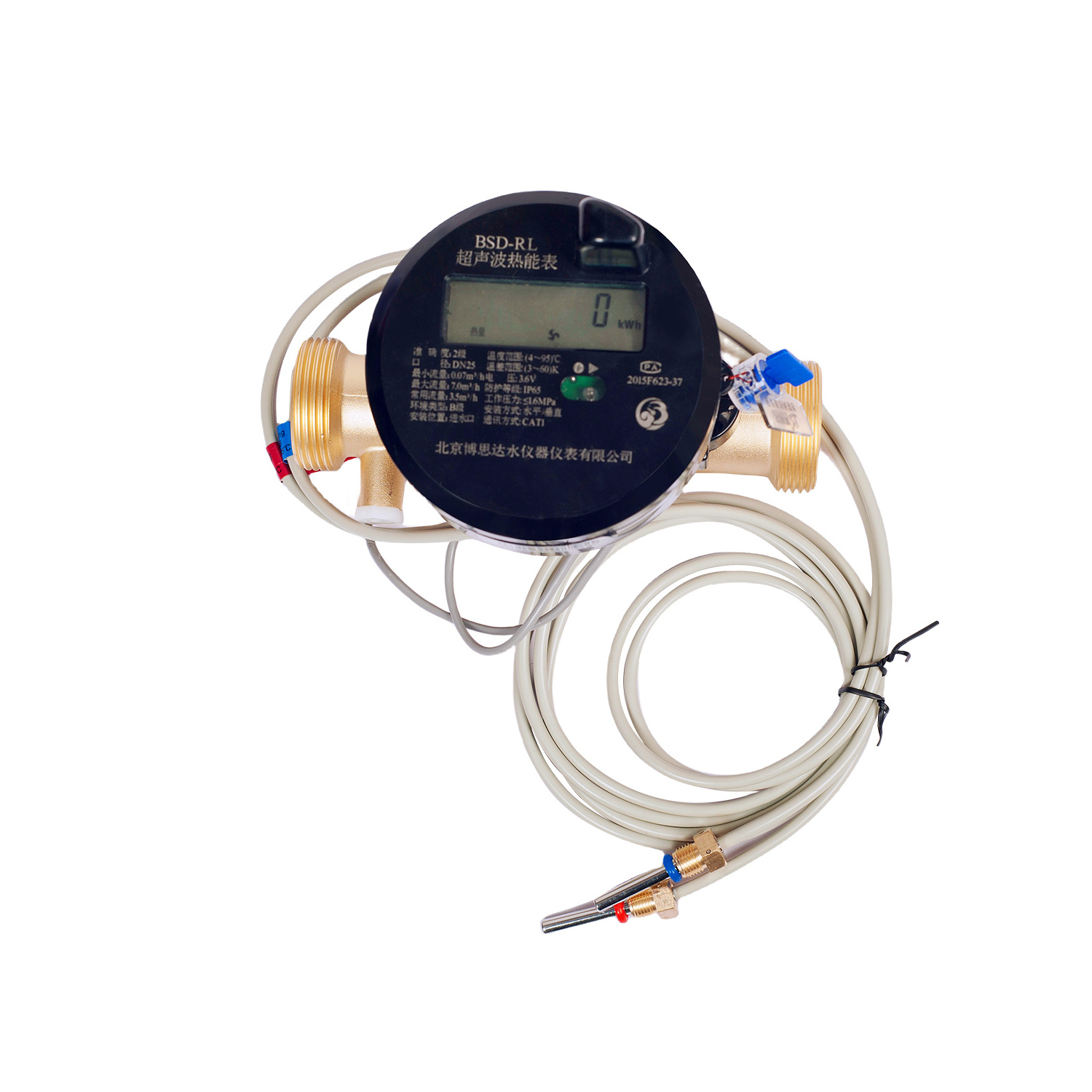

Ultrasonic heat meter is a mechatronics intelligent heat energy meter, which can accurately measure heat. This product has the characteristics of beautiful appearance, convenient installation, accurate measurement, stable operation, strong anti-pollution and corrosion resistance, long service life, low pressure loss, economical and practical, etc. It is used in heat measurement such as central heating, central air conditioning and combined cooling and heating. Charged heating facilities.
Product features
backwater pipeline (need to be selected in advance);RSq85 interface can be added according to diferent needs of users To achieve dfferent requirements of remote meter reading function, easy to centralized management.
Main Features
\uD83D\uDD35 Using advanced foreign technology, it can automatically collect flow signal, inlet water temperature, return water temperature, automatically calculate instantaneous flow, cumulative flow, temperature difference and other parameters.
\uD83D\uDD35 The hot and cold (heating, cooling) type heat meter can intelligently judge the heating or cooling state according to the actual use condition and measure separately.
\uD83D\uDD35 It can be connected with M-BUS and RS485 interfaces to realize data remote transmission and centralized meter reading function, which is convenient for automatic intelligent management control of residential buildings.
\uD83D\uDD35 The hot and cold (heating, cooling) type heat meter can intelligently judge the heating or cooling state according to the actual use condition and measure separately.
\uD83D\uDD35 It can be connected with M-BUS and RS485 interfaces to realize data remote transmission and centralized meter reading function, which is convenient for automatic intelligent management control of residential buildings.
|
Flow Sensors
|
|
|
|
|||
|
DN(mm)
|
QS(m^3/h)
|
QP(m^3/h)
|
QI(m^3/h)
|
|||
|
DN15
|
0.03
|
1.5
|
3
|
|||
|
DN20
|
0.05
|
2.5
|
5
|
|||
|
DN25
|
0.07
|
3.5
|
7
|
|||
|
DN32
|
0.12
|
6.0
|
12
|
|||
|
DN40
|
0.20
|
10
|
20
|
|||
|
DN50
|
0.60
|
15
|
30
|
|||
|
DN80
|
1.60
|
40
|
80
|
|||
|
DN100
|
2.40
|
60
|
120
|
|||
|
DN125
|
4.00
|
100
|
200
|
|||
|
DN150
|
6.00
|
150
|
300
|
|||
|
DN200
|
10.0
|
250
|
500
|
|||
