Quick Details
-
Brand Name:
-
Etech
-
Use:
-
FTTH FTTA FTTX
-
Warranty Time:
-
NA
-
Product name:
-

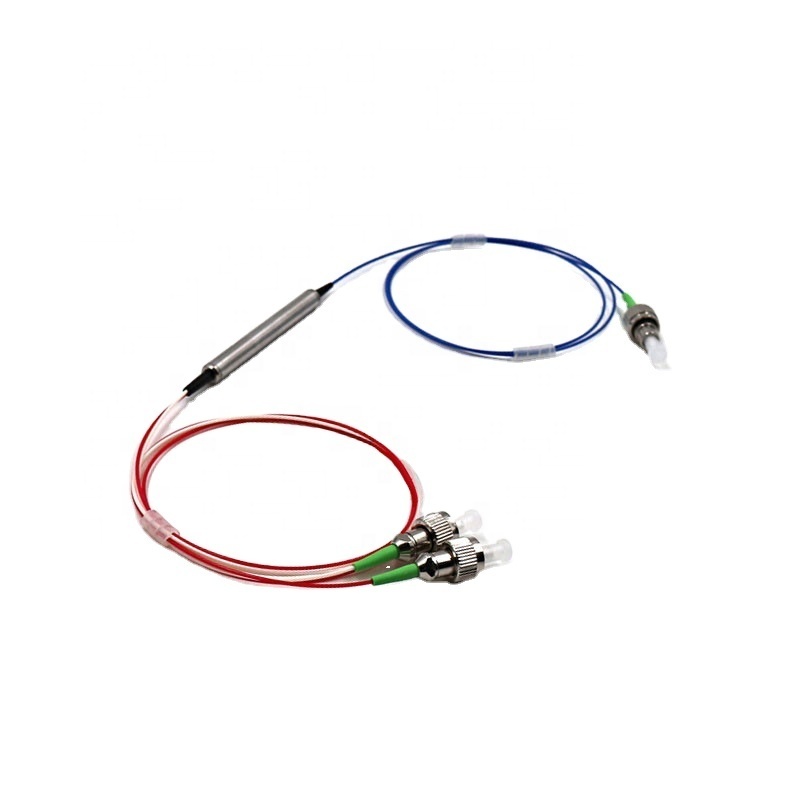

1x2 3 Port PM Fiber Optical Circulator
-
Port number:
-
3
-
Wavelength:
-
1310nm,1550nm
-
Connector Type:
-
SC FC LC ST MU etc
-
Package Style:
-
mini steel tube
-
Cable length:
-
1m or customized
-
Polarization Mode Dispersion:
-
≤0.1
-
Storage temperature:
-
-40~85
-
Operating temperature:
-
0 ~+70
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
ECR-PM-3
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Etech
-
Use:
-
FTTH FTTA FTTX
-
Warranty Time:
-
NA
-
Product name:
-
1x2 3 Port PM Fiber Optical Circulator
-
Port number:
-
3
-
Wavelength:
-
1310nm,1550nm
-
Connector Type:
-
SC FC LC ST MU etc
-
Package Style:
-
mini steel tube
-
Cable length:
-
1m or customized
-
Polarization Mode Dispersion:
-
≤0.1
-
Storage temperature:
-
-40~85
-
Operating temperature:
-
0 ~+70
Products Description
Features
Low Insertion Loss
Low Insertion Loss
High Extinction Ratio and High Isolation
High stability and reliability
Application
EDFA
Application
EDFA
Fiber Optical Instrument
Fiber Sensor
S
p
ecification
|
Parameter
|
Type A
|
Type B
|
Type A
|
Type B
|
|||
|
Operating wavelength (nm)
|
1310 or 1550
|
|
1064
|
|
|||
|
Bandwidth (nm)
|
±30
|
±20
|
±5
|
±5
|
|||
|
Typ. Isolation (dB)
|
46
|
20
|
52
|
30
|
|||
|
Isolation (dB)
|
≥40
|
≥30
|
≥45
|
≥25
|
|||
|
Typ. Insertion Loss (dB)
|
0.7
|
0.6
|
3.4
|
1.8
|
|||
|
Insertion Loss (dB)
|
≤0.9
|
≤0.8
|
≤4.0
|
≤2.1
|
|||
|
Extinction Ratio (dB)
|
≥22
|
≥20
|
≥20
|
≥20
|
|||
|
Cross Talk (dB)
|
≥50
|
|
|
|
|||
|
Return loss (dB)
|
≥50
|
|
|
|
|||
|
Power handling (mW)
|
≤300
|
|
|
|
|||
|
Fiber Type
|
PM Panda Fiber
|
|
|
|
|||
|
Fiber Length (m)
|
0.80
|
|
|
|
|||
|
Operating temperature (℃)
|
-5 ~ +70
|
|
|
|
|||
|
Storage temperature (℃)
|
-40 ~ +85
|
|
|
|
|||
|
Dimensions (mm)
|
φ5.5×L35
|
|
|
|
|||
Details Images
Product packaging
Manufacturing Technique
Delivery
FAQ
1. What is your order quantity?
Etech: usually 1 piece, if you have detailed requirements, we can coordinate.
2. What is your delivery date?
Etech: The delivery date is approximately 3-5days, depending on the order quantity.
3. Can you provide samples for customers?
Etech: Yes, but the shipping will be charged on the customer's account.
4. What is your price?
Etech: We offer competitive price with good performance.
5. Do you offer OEM services?
Etech: We accept OEM, ODM. Cable sizes and materials can be customized.
