Quick Details
-
Voltage:
-
380V, 440V
-
Dimension(L*W*H):
-
1.85*0.75*1.6
-
Weight:
-
800 KG
-
Features:
-
Energy Saving, High Efficiency
-
Raw Material:
-
Wood Sawdust
-
After-sales Service Provided:
-
Online guide
-
Capacity:
-
400-500 Kg/h
-
Briquette shape:
-
Hexagon Round Square Shap
-
Advantage:
-
Environment Friendly
-
Color:
-
Customers' Requirements
-
Spare parts:
-
Screw Propreller
-
Related Equipment:
-
Carbonization Furnace
Quick Details
-
Application:
-
Briquette Making Machine, Briquette Making Machine
-
Production Capacity:
-
350-400kg/h
-
Place of Origin:
-
HEN
-
Voltage:
-
380V, 440V
-
Dimension(L*W*H):
-
1.85*0.75*1.6
-
Weight:
-
800 KG
-
Features:
-
Energy Saving, High Efficiency
-
Raw Material:
-
Wood Sawdust
-
After-sales Service Provided:
-
Online guide
-
Capacity:
-
400-500 Kg/h
-
Briquette shape:
-
Hexagon Round Square Shap
-
Advantage:
-
Environment Friendly
-
Color:
-
Customers' Requirements
-
Spare parts:
-
Screw Propreller
-
Related Equipment:
-
Carbonization Furnace
Product Description

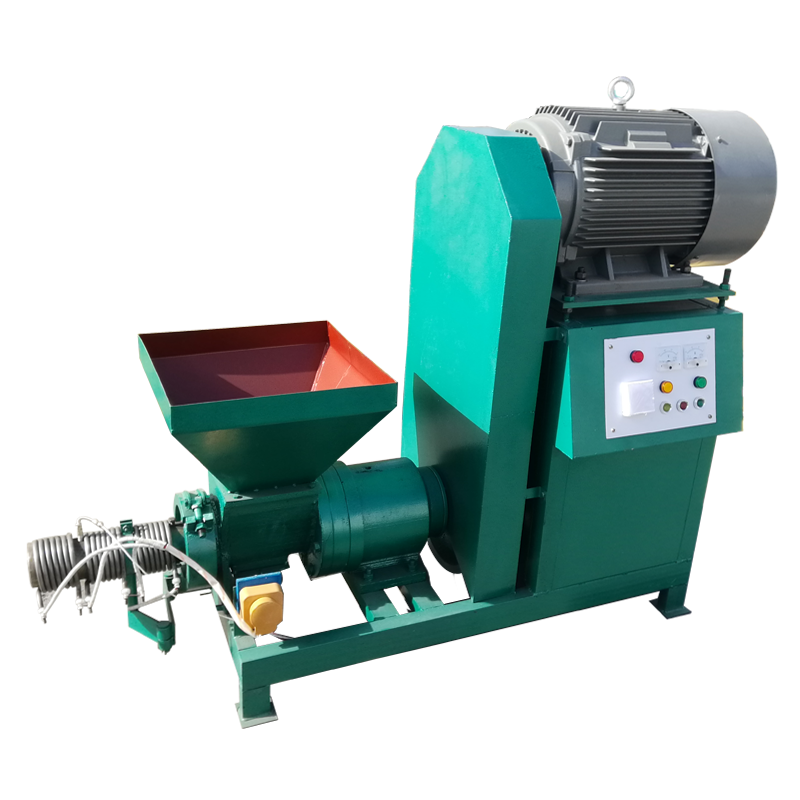

Coal briquette machine sawdust machines a briquettes charcoal briquettes machine
The sawdust briquettes making machine can be divided into 50 rods and 80 rods according to the size of the forming cylinder. The sawdust briquette machine is a main equipment for making rod-shaped solid fuel under high pressure and high temperature conditions by using carbonaceous wood materials such as wood, rice husk, peanut shell and plant straw (without adding any additives).
Specification
|
Product name
|
Biomass briquette machine
|
|
|
|
Model
|
LH-50
|
LH-80
|
|
|
Capacity
|
350-400kg/h
|
400-600kg/h
|
|
|
Briquette diameter
|
50-60mm
|
70-80mm
|
|
|
Power
|
18.5kw
|
22kw
|
|
Working priciple of biomass charcoal briquette machine
Briquetting is a process that biomass is compressed under high pressure and high temperature.The lignin content that occurs naturally inbiomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding, compressing the biomass to form into high density
briquettes.During this process, no binder needs to be used. So the output briquette is a type of clean and
green fuel that is ideal for use in furnaces, boilers and open fires. The density of the briquettes is 900-1400kg/m2 . (wood sawdust extruder machine with factory price for sale)
.
Spare parts of biomass charcoal briquette machine
Long Life of Screw Shaft
Our machine adopts a durable material (high hardness alloy steel) to make the shaft. We use a different process to make the screw shaft. The screw shaft is manufactured with a milling machine which guarantees that the distance between every screw is the same, and the angle of every screw is the same.
Long Life of Inner Former
The Inner Former can be used for 1-2 years.The former is made from a whole steel bar through a water jet cutting system so that the inner face is smooth. Therefore, it’ll be easier to form and save energy. This is why the finished produces such as sawdust briquettes are smooth. It consists of two parts and you need to change only the key part when it is worn.
Heating section
we adopted three heat collars which are made from thick copper wires and are ceramic inside.
An attractive feature on the forming hopper is that we added a movable plate on the bottom. It has two functions, one is you can clean it easily. The other is that you can discharge the inputted material when it is jammed.
Lubricating System
The gear box is equipped with lubricating system. Moreover, to oil the gear box properly, our briquette machine is designed with an exhaust function which can help maintain consistent air pressure.
Auto Cutting System
It’s a simple piece of equipment composed of two steel plates. (Please see the picture), and briquettes can be automatically cut in uniformed lengths.
Working process of biomass charcoal briquette machine
Wood, tree branches, rice husk, and biomass waste can be made into different shapes rods, which can be used to burn, or after carbonizing, they can be used for barbecue.
The working process of biomass briquette machine is as below.
1. Crush the raw material into small pieces (diameter is about 3-5mm).
2. Dry the material by dryer machine or dried it in the sun , till the moisture is less than 12%.
3. Put the raw materials into briquette making machine without add any chemical goods, it should accord to the high temperature.
4. Produce the briquette stick from biomass material without any additive.
5. Carbonized the biomass briquette sticks.
6. Finished briquettes have 50MM, 60MM, 70MM ,80mm diameter can be choice.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
