Quick Details
-
Brand Name:
-
xukang
-
Model Number:
-
UQB
-
Range:
-
200~8000mm
-
Material:
-
SS304, SS316, PTFE,PP
-
Output signal:
-
4-20ma
-
Power supply:
-
24VDC
-
Accuracy:
-
5mm, 7mm, 10mm, 20mm
-
Ambient temperature:
-
-20 ~ 120℃
-
Working Pressure:
-
2.5MPa
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
xukang
-
Model Number:
-
UQB
-
Range:
-
200~8000mm
-
Material:
-
SS304, SS316, PTFE,PP
-
Output signal:
-
4-20ma
-
Power supply:
-
24VDC
-
Accuracy:
-
5mm, 7mm, 10mm, 20mm
-
Ambient temperature:
-
-20 ~ 120℃
-
Working Pressure:
-
2.5MPa
Products Description

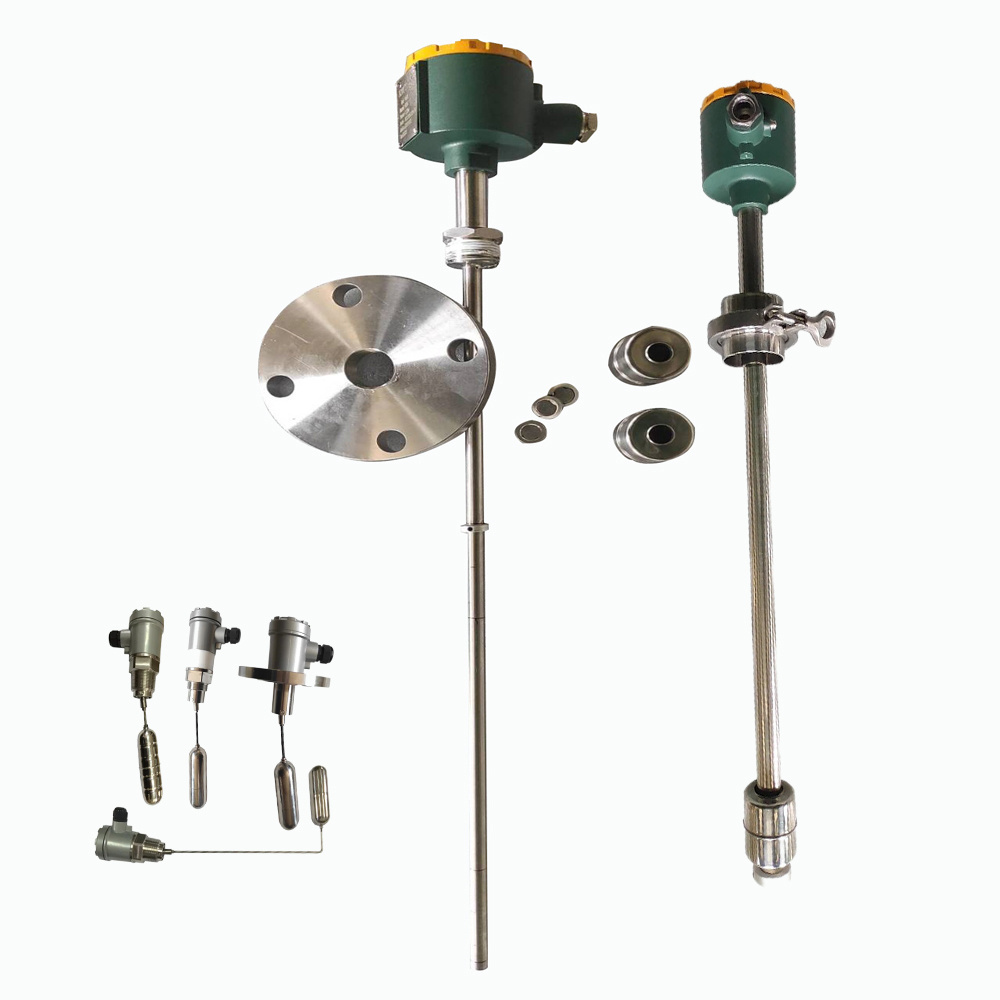

Magnetic Connecting rod float level gauge
Magnetic Connecting rod float level gauge/ transmitter It is mainly designed and produced for liquid level measurement of underground storage tanks or containers that are not suitable for side openings or limited side installation space. The standard Magnetic Connecting rod float level gauge is composed of a buoy tube, a process connection flange, a protective cylinder, a float, and a liquid level indicator component. It is suitable for measuring weakly corrosive liquids. When the medium is highly corrosive, the anticorrosive top-mounted Magnetic Connecting rod float level gauge made of PP material or stainless steel lined with PTFE can be selected.
Continuous Float Level Transmitter uses the magnetic inside of the floating ball following as the change of liquid level to change divider circuit composed by the resistor inside of the rod and the magnetic reed switch, thus converted into divider signal which can be turned by transmitter into standard industrial signal of 4~20mA so as to test the liquid level. The smaller the clearance of the magnetic reed switch is, the higher the accuracy is. This level indicator can also be used for long-distance indication if combined with other secondary instrument. Type of field LED display + “4-20mA” indicator the true level continuously, and also connect with PLC/DCS or Recorders. The 4~20mA signal can transmit in the scope of 0~3Km.
Product Paramenters
|
Item of UQK-B
|
Technical parameter
|
|
Measure range
|
200-8000mm any length on order
|
|
Signal output
|
A. 0~4kΩ; B.4~20mA D.C24V 2-wire;
C. Hart, LCD |
|
Resolution
|
A. 20mm; B. 10mm; C. 7mm; D. 5mm
|
|
Fluid Density
|
>=0.45g/cm3 (tell us your density)
|
|
Fluid temperature
|
< 150 C degree
|
|
Process pressure
|
<2.5MPa or on order
|
|
Process connection
|
Flange, Threaded, or assemble external of level gauge
|
|
Material
|
SS304, SS316, PTFE，PP
|
|
Leading tube OD
|
Φ19mm, Φ8mm
|
|
Floater ball OD size
|
See bellow table
|
|
Float Cage Material
|
SS304, SS316, PTFE, PP, PVC, PVDF
|
|
Max. Centre to Centre Distance
|
6000 mm, greater lengths on request
|
|
Connecting Flanges
|
According to DIN or ANSI B16.5
|
|
Rated Pressure
|
<10.0 Mpa for SS & 0.3 Mpa for PP, PVC & PVDF
Higher pressure rating can also be provided |
|
Temperature of Liquid
|
450ºC (Max.) for SS, 80ºC (Max.) for PVDF
60ºC (Max.) for PVC, 50ºC (Max.) for PP |
|
Specific Gravity
|
Min. 0.40g/cm³
|
|
Scale
|
Graduated in cm, Aluminium or SS304
|
|
Signal
|
4～20mA.DC、pulse、RS485
|
|
Switch type
|
NO、NC、SPDT
|
|
Measuring Accuracy
|
+/- 5 mm
|
|
Explosion-proof mark
|
Exd II BT6
|
|
Protection Grade
|
IP65/IP67
|
