Quick Details
-
Application:
-
Mall
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zeemo
-
Model Number:
-
SW-09
-
Product name:
-
Curved Wall Formwork
-
Usage:
-
Concorete Formwork
-
Material:
-
Poplar Plywood
-
Size:
-
Customized
-
Thickness:
-
14-21mm
-
Weight:
-
18kg/sqm
-
Feature:
-
Easily Assembled
-
Packing:
-
Pallet
-
MOQ:
-
100 Square Meters
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Training
-
Project Solution Capability:
-
graphic design, total solution for projects
-
Application:
-
Mall
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zeemo
-
Model Number:
-
SW-09
-
Product name:
-
Curved Wall Formwork
-
Usage:
-
Concorete Formwork
-
Material:
-
Poplar Plywood
-
Size:
-
Customized
-
Thickness:
-
14-21mm
-
Weight:
-
18kg/sqm
-
Feature:
-
Easily Assembled
-
Packing:
-
Pallet
-
MOQ:
-
100 Square Meters
Product Description

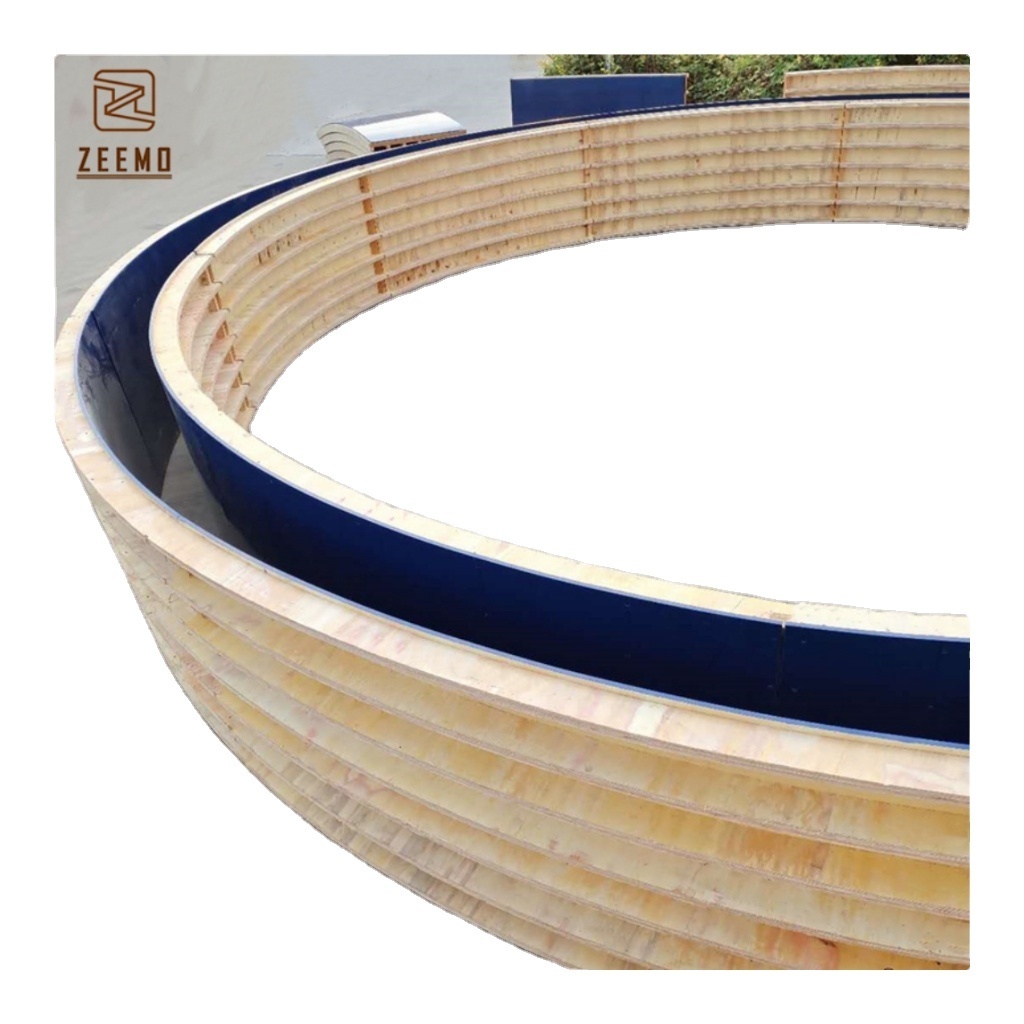

Zeemo circular water reclaim plant curved concrete tank formwork
Curved wall formwork
For some projects that requires curved wall formwork components, we can help our customer by manufacturing the curved wall formwork to their project simply sending us your drawing. Our curved wall system is made of plywood & LVL beam.
Specification
|
item
|
value
|
|
Type
|
poplar plywood
|
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection
|
|
Project Solution Capability
|
graphic design, total solution for projects
|
|
Application
|
Concrete Construction
|
|
Design Style
|
Modern
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
Zeemo
|
|
Model Number
|
SW-09
|
|
Name
|
Curved Wall
|
|
Material
|
Poplar Plywood
|
|
Application
|
Construction
|
|
Type
|
Tank formwork
|
|
Usage
|
Curved wall buildig
|
|
Surface
|
Plastic
|
|
Size
|
Customized
|
|
Thickness
|
14-21mm
|
|
Packing
|
Pallet
|
|
MOQ
|
100 Square Meters
|
|
Name
|
Component
|
Diameter
|
Weight
|
Width
|
Height
|
|
Curved Wall
|
LVL beams; plywood;plastic coated face/back/edge
|
3000-4500 mm
|
20kg/m2
|
2.4m
|
1.2m
|
|
|
|
4600+ mm
|
18kg/m2
|
2.4m
|
1.2m
|
|
Testing items
|
|
Unit
|
Standard used
|
Tested value
|
|
|
Bonding quality
|
|
N/mm²
|
EN314
|
0.72
|
|
|
Bending strength
|
Longitudinal grain
|
N/mm²
|
EN310
|
50.0
|
|
|
|
Cross grain
|
N/mm²
|
|
40.2
|
|
|
Elasticity in bending
|
Longitudinal grain
|
N/mm²
|
EN310
|
5137
|
|
|
|
Cross grain
|
N/mm²
|
|
3519
|
|
|
Bearing concrete pressure
|
|
KN
|
EN310
|
70
|
|
Features
easy installation, easy dismantle
lower cost
lightweight than steel , easy handling, quickly, save time and labour
no need mold-release agent,water can clean, because surface is plastic
nice finish ,no need re-work
Product Details
Installation
1) shape fixed , no need calibrate onsite;
2) place the parts on the ground, joint the parts by fasteners;
3) props and supports.
Other shape
Packing
